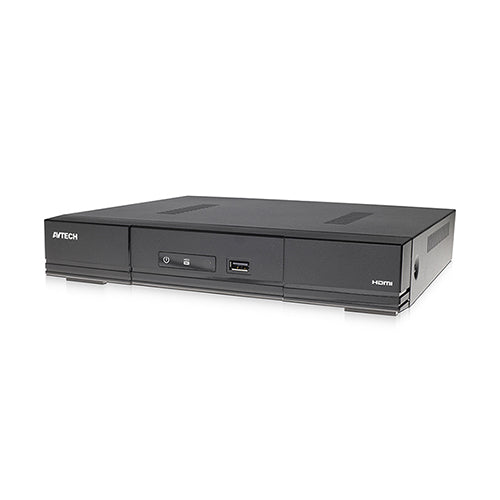

Avtech DGD1009AIX DGD1009AIX AI-BASED H.265 PENTABRID 8CH XVR

AVTECH

Avtech DGD1009AIX DGD1009AIX AI-BASED H.265 PENTABRID 8CH XVR

$199.00
SKU: DGD1009AIX
Quantity:
Link to Manufacturer's Page

Contact

Key Features:

  • Supports analog HD (TVI/CVI/AHD/960H) and IP video inputs.

  • AI-based human and vehicle detection.

  • H.265 video compression for efficient storage.

  • EaZy Networking cloud service for easy remote access.

  • Push notifications for system events.

Video Specifications:

  • Compression Format: H.265

  • Video Input: 8 channels (2 IP channels supported)

  • Video Output: BNC, VGA, HDMI (4K2K display)

  • Resolution:

    • Analog Mode: 5MP, 5MLITE, 4MP, 4MLITE, FHD (1080P), HD, 960H, Frame, CIF

    • IP Mode: Up to 2592 x 1944

  • Recording Rates:

    • Analog Mode: Up to 48 IPS @ 5MP, 64 IPS @ 4MP, 120 IPS @ FHD

    • IP Mode: Up to 30 IPS @ 5MP, 50 IPS @ 3MP, 60 IPS @ 1080P

Recording & Playback:

  • Modes: Manual, Timer, Motion, Alarm, Remote

  • Playback Channels: 8

  • Search Methods: Time, Motion, Alarm

  • Backup Devices: USB 2.0 drive, Network

  • Regular Backup: Yes

Audio:

  • Input: 4 channels

  • Output: 1 channel (Mono)

External I/O:

  • RS485: Yes

  • Alarm Input: 4

  • Alarm Output: 1

Storage:

  • Hard Disk: Supports up to 10TB SATA HDD or external disk array via eSATA

  • SATA Interface: Yes

  • eSATA Interface: Expandable with SATA to eSATA cable

System Features:

  • Image Quality Settings: Super Best, Best, High, Normal

  • Mouse Control: USB mouse

  • Motion Detection: 16 x 12 grids per channel, 3 adjustable sensitivity parameters

  • Event Notifications: Push Video, Push Status, FTP, E-Mail

  • Zoom: 2x digital zoom

  • PTZ Control: Yes

  • User Levels: 4 levels for different access privileges

  • Video Loss Detection: Yes

  • Camera Title: Supports up to 25 characters

  • Video Adjustments: Hue, Saturation, Contrast, Brightness

  • Date Display Formats: YY/MM/DD, DD/MM/YY, MM/DD/YY

  • Daylight Saving: Yes

Power & Environment:

  • Power Supply: DC12V / 2A

  • Operating Temperature: 10°C ~ 40°C

  • Operating Humidity: 10% ~ 85%

  • Dimensions (mm): 260 (W) × 48 (H) × 235.7 (D)

  • Net Weight: 1.2 kg

Network:

  • Ethernet: 10/100 Base-T

  • Protocols: TCP/IP, PPPOE, DHCP, DDNS

  • Remote Surveillance:

    • PC: Windows Edge, Internet Explorer, Chrome, Safari

    • CMS Lite: 32CH software for Windows

    • Mobile: EagleEyes app for iOS & Android

  • Max Online Users: 20

  • Web Compression Format: H.265

  • Remote Event Download & Playback: Yes

Additional Features:

  • EaZy Networking: Yes

  • Spot Monitor Support: Yes

  • DCCS Support: Yes

  • Free DDNS Service: Yes

  • Privacy Mask: Yes

  • Multiplex Operations: Live display, record, playback, backup, network operations

  • System Recovery: Auto recovery after power failure
