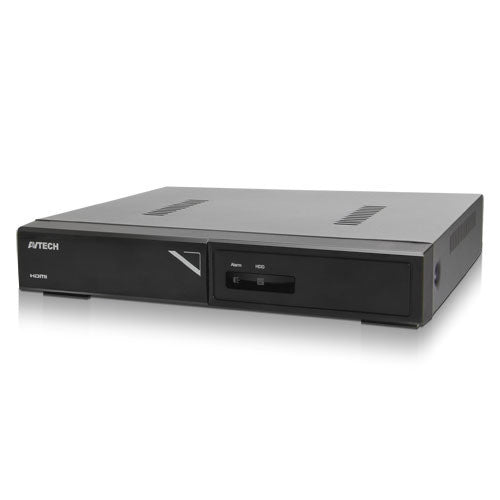

AVTECH DGD1304 4CH Pentabrid IP/HD/TVI/CVI/960H DVR

Replaced by the DGD1005

AVTECH DGD1304 Features

• Video Compression Format: H.264
• Video Signal: Analog HD / TVI / CVI / 960H / IP
• Video Input: 4 channels, 2 of which can be used as IP channels
• Video Output: BNC, VGA, HDMI
• Video Resolution:
  Analog Mode: 1080P / 720P / QHD / 960H / Frame / Field / CIF
  IP Mode Live & Playback: 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240
  IP Record**: 2560 x 1440 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240
• Max. Recording Rate:
  Analog Mode: Up to 60 IPS @ 1920 x 1080, Up to 120 IPS @ 1280 x 720
  IP Mode (2 channels): Up to 12 IPS @ 2560 x 1440 (5MP)**, Up to 30 IPS @ 1920 x 1080
• Recording Mode: Manual / Timer / Motion / Remote
• Pre-alarm Recording: YES
• Playback Channel: 4 CH
• Quick Search: Time / Motion search mode
• Hard Disk Storage: 10TB SATA HDD x 1 (not included in base model)
• Motion Detection Area: 16 × 12 grids per channel
• Event Notification: Push Status / FTP / E-Mail
• Zoom: 2x digital zoom
• User Level: 4 user levels for different access privilege
• Operating Temperature: 10ºC ~ 40ºC (50ºF ~104ºF)
• Operating Humidity: 10% ~ 85%
• Dimensions (mm): 260(L) x 48(H) x 235.7(D)
• Net Weight: 1.2 kg (2.8 lb)
• Warranty: 2 years
  **When 5MP is selected the live display will become D1
