AVTECH DGD8132

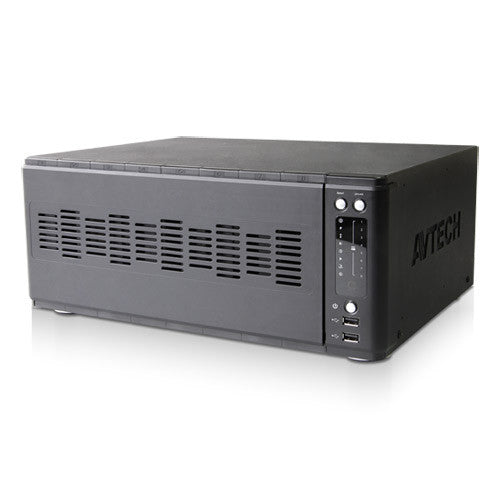

AVTECH DGD8132 32CH 2MP Pentabrid IP/TVI/CVI/HD/960H NVR/DVR

AVTECH

AVTECH DGD8132 32CH 2MP Pentabrid IP/TVI/CVI/HD/960H NVR/DVR

Sale price$599.00
Discontinued
SKU: ATC-DGD8132

Contact

AVTECH DGD8132 Features

  • Camera Compatibility: TVI / CVI / Analog HD / 960H / IP Cameras (recommend AVTECH IP cameras for full capability)
  • Maximum Number of Cameras/Channels: 32 channels of TVI / CVI / Analog HD / 960H video input, within which 2 can be used as IP channels
  • Recording Rate: Analog Mode: Up to 384 IPS @ 1920 x 1080, IP Mode: Up to 30 IPS @ 1920 x 1080 (2 channels)
  • Video Resolution: Analog Mode 1080P / 720P / QHD / 960H / Frame / Field / CIF; IP Mode 1920 x 1080 / 1280 x 720/ 640 x 480 / 320 x 240
  • Compression Styles: H.264
  • Event Notification: Push Status / FTP / E-Mail
  • Recording Mode: Manual / Timer / Motion / Alarm / Remote
  • Pre-Alarm Recording: Yes
  • Quick Search: Time / Motion / Alarm search mode
  • Remote Access: EagleEyes on iOS & Android mobile devices
  • Compatible Operating System: Windows & Mac
  • Compatible Program: Web Browser: Windows Edge, Internet Explorer, Safari, Google Chrome & Mozilla Firefox; CMS Lite: 32CH central management software for Windows OS
  • Ethernet: 1000 Base-T. Supports remote control and live view via Ethernet
  • Hard Drive Bays: 8 bays
  • Max TB per HD Bay: 10 TB (not included)
  • Dimensions: 358mm(L) x 267mm(W) x 152mm(H)
  • Weight: 5.9 kg (13 lb)
  • Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
  • Operating Humidity: 10% ~ 85%
  • Power: 19V/4.7A
  • Warranty: 2 years
  • Please note: This unit has 1 LAN port. If connecting a switch for network cameras we recommend adding a switch with 2 or more uplink ports to connect to the DVR and to the network.
