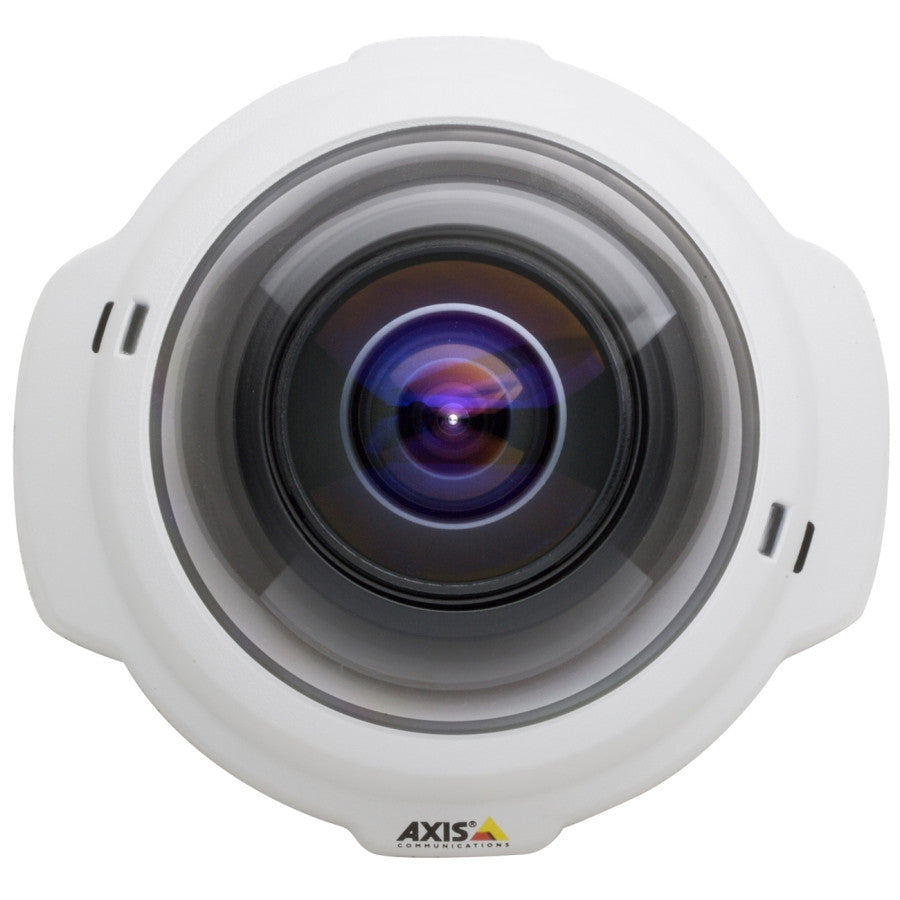

AXIS 212 PTZ (0257-004) Pan Tilt Zoom IP Network Camera

Discontinued, replaced by the M3007-P (0543-001)

AXIS 212 PTZ Features

• Resolution: 160x90 to 640x480
• Image Sensor: 1/2” progressive scan CMOS 3.1 Megapixe
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 10 lux wide mode, 20 lux tele mode
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Vari-focal F1. 8
• Focal Length: 2.7 mm
• Zoom: 3x zoom
• Iris: Fixed
• Focus: N/A
• Field of View: horizontal: 44° – 140°, vertical: 35° – 105°
• Compression Styles: MPEG-4 Part 2 (ISO/IEC 14496-2); Motion JPEG
• Frame Rate: 30 fps
• Image Settings: Compression, color, brightness, sharpness, white balance, exposure control, fine tuning of behavior at low light, Text and image overlay
• Privacy Mask: No
• Built-in Microphone: Yes
• Audio Capabilities: Two-way, half-duplex, Built-in microphone, external microphone input or line input, line level output
• Alarm/Event Management: Video motion detection, audio detection, Intelligent video and external input, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, External output activation
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control
• Users: N/A
• On-board Storage: No
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Weight: 504 g (1.1 lb.)
• Operating Temperature: 5 – 40 °C (41 – 104 °F)
• Operating Humidity: 20 – 80% RH (non-condensing)
• Power: 4.9 – 5.1 V DC max 3.6 W; Power over Ethernet IEEE 802.3af Class 1
• Warranty: 3 Years
• What's Included: Power supply, mounting and connector kits, angled wall mount, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license

AXIS 212 PTZ Overview

The AXIS 212 (0257-004) PTZ network camera combines advanced networking features with powerful pan and zoom technology. This camera is capable of monitoring a wide area and allowing the user to zoom in on important action in the frame. Its networking features allow for the tight control of network bandwidth resources. Structurally, this camera is very rugged and is protected against vandalism by several technological features. The AXIS 212 PTZ network camera is suitable for professional monitoring in areas such as warehouses, banks, hotel lobbies, schools and other areas where a wide field of view is required.
The AXIS 212 PTZ network camera has the capability to pan and zoom in on any part of the frame. This PTZ technology makes it ideal for monitoring areas where wide coverage is generally required, but where security situations may necessitate that action be watched in detail. This camera can cover up to 1,600 square feet within its frame. The PTZ features allow it to zoom in on important action without any moving parts being involved. Entirely digital, this PTZ feature makes mounting the camera much easier, as physical movement of the device need not be considered when selecting a location.
The AXIS 212 PTZ network camera contains other features that make it excellent for professional networks. The AXIS 212 PTZ network camera supports Quality of Service (QoS) management to reduce bandwidth, as well as security protocols such as HTTPs and IEEE 802.1x authentication.
