AXIS

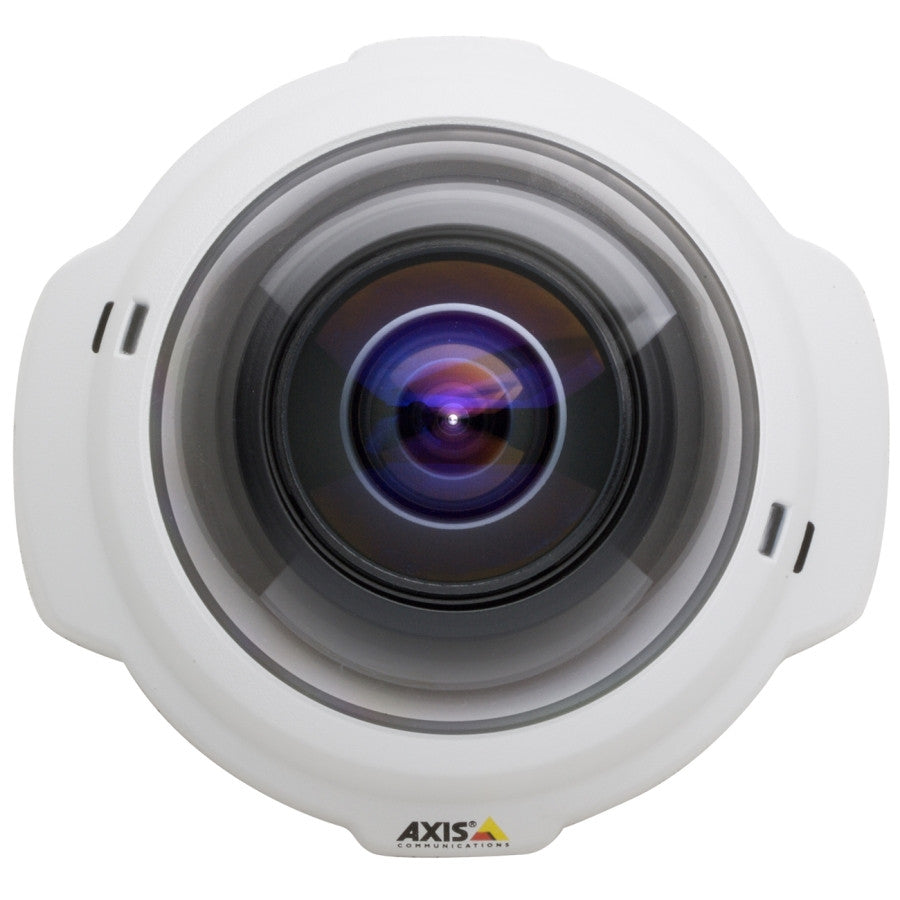

AXIS 212 PTZ-V (0280-004) Network Camera
Replaced by: AXIS M3007-PV (0515-001)
Discontinued, replaced by the M3007-PV (0515-001)
AXIS 212 PTZ-V Features
- Resolution: 160x90 to 640x480
- Image Sensor: 1/2” progressive scan CMOS 3.1 Megapixe
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: 10 lux wide mode, 20 lux tele mode
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Vari-focal F1. 8
- Focal Length: 2.7 mm
- Zoom: 3x zoom
- Iris: Fixed
- Focus: N/A
- Field of View: horizontal: 44° – 140°, vertical: 35° – 105°
- Compression Styles: MPEG-4 Part 2 (ISO/IEC 14496-2); Motion JPEG
- Frame Rate: 30 fps
- Image Settings: Compression, color, brightness, sharpness, white balance, exposure control, fine tuning of behavior at low light, Text and image overlay
- Privacy Mask: No
- Built-in Microphone: Yes
- Audio Capabilities: Two-way, half-duplex, Built-in microphone, external microphone input or line input, line level output
- Alarm/Event Management: Video motion detection, audio detection, Intelligent video and external input, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, External output activation
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control
- Users: N/A
- On-board Storage: No
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: 1000 kg (2200 lb) impact-resistant casing
- Weight: 660 g (1.5 lb.)
- Operating Temperature: 5 – 40 °C (41 – 104 °F)
- Operating Humidity: 20 – 80% RH (non-condensing)
- Power: 4.9 – 5.1 V DC max 3.6 W; Power over Ethernet IEEE 802.3af Class 1
- Warranty: 3 Years
- What's Included: Power supply, mounting and connector kits, angled wall mount, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license
AXIS 212 PTZ-V Overview
The AXIS 212 PTZ-V network camera is designed to provide secure monitoring and excellent wide-angle vision. This camera is designed to resist attempts to vandalize the device and has motion detection built in. The device has pan, tilt and zoom (PTZ) technology built into it that allows it to home in on part of a frame when a detailed view is needed. The AXIS 212 PTZ-V network camera is an ideal solution for large areas that need monitoring, such as retail store floors, warehouses, banks and schools.
The tough casing on the AXIS 212 PTZ-V network camera makes it suitable for monitoring in environments where vandalism is a risk, such as at schools. The camera’s motion detection allows the user to be alerted when someone comes into view. The device has a very wide, 140-degree field of view that allows it to capture an entire room, rather than a portion of the room, as is the case with many other cameras. The AXIS 212 PTZ-V network camera also has event management features that increase the flexibility where response is concerned.
Possessed of powerful networking features, the AXIS 212 PTZ-V network camera can support protocols such as Quality of Service (QoS) and HTTPS. The AXIS 212 PTZ-V network camera also supports both the IPv4 and IPv6 network addressing protocols. The camera also supports multiple-user access levels and can be customized via the VAPIX application programming interface.
