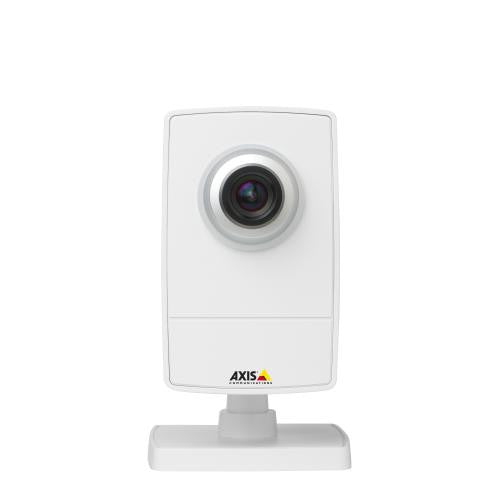

AXIS M1004-W (0554-004) Network Camera
AXIS M1004-W (0554-004) Network Camera
AXIS M1004-W (0554-004) Network Camera
AXIS M1004-W (0554-004) Network Camera
AXIS M1004-W (0554-004) Network Camera


AXIS M1004-W (0554-004) Network Camera

Sale price$199.00
SKU: M1004-W (0554-004)

Replaced by: AXIS M1045-LW (0812-004)

AXIS M1004-W Features

  • Resolution: 1280x800 to 320x240
  • Image Sensor: 1/4” Progressive Scan RGB CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 1.2 - 10000 lux, F2.0
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: N/A
  • Focal Length: 2.8 mm
  • Zoom: N/A
  • Iris: Fixed
  • Focus: Adjustable
  • Field of View: 80° view
  • Compression Styles: H.264 Main Profile (MPEG-4 Part 10/AVC), Motion JPEG
  • Frame Rate: H.264: 30 fps in all resolutions, Motion JPEG: 30 fps in all resolutions (performance may be reduced in wireless mode)
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, backlight, compensation, rotation, Text and image overlay, Privacy mask, Mirroring, Axis’ Corridor Format
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Video motion detection, active tampering alarm, Intelligent video, External input, Support for AXIS Camera Application Platform enabling installation of additional applications:
    File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Pre- and post-alarm video buffering, External output activation, 1 alarm input and 1 output
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS** encryption, IEEE 802.1X network access control, digest authentication, user access log
  • Users: 1
  • On-board Storage: No, Support for recording to network share (Network Attached Storage or file server)
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A, Polycarbonate Plastic Case
  • Dimensions: 59mm (W) x 28mm (L) x 95mm (H) (2.3" x 1" x 3.7")
  • Weight: 111 g (0.24 lb)
  • Operating Temperature: 0 ºC to 40 ºC (32 ºF to 104 ºF)
  • Operating Humidity: 20 - 80% RH
  • Power: 4.9 – 5.1 V DC, max. 6.5 W
  • Warranty: 1 Year
  • What's Included: Power supply, stand and clamp, Installation/Quick Guide, Installation and Management Software CD, Windows decoder, 1-user license

AXIS M1004-W Overview

AXIS M1004-W offers the choice of either a wireless or a wired connection to the network. It features Wi-Fi Protected Setup™ protocol, which simplifies the process of configuring logical security on wireless networks. The combination of the wireless 802.11b/g/n standard and the WPS protocol assures user-friendliness and high network security, while enabling HDTV video to be streamed reliably over a wireless network. AXIS M1004-W Network Camera supports edge storage for recording to network shares such as Network-Attached Storage (NAS). Video intelligence includes video motion detection and active tampering alarm. The network camera is ideal for securing locations such as small businesses, boutiques, restaurants, hotels or residences. It offers superior video quality in its class at 30 frames per second in 1 megapixel or HDTV 720p resolution. The mounting stand can be installed on wall and ceiling. A mounting clamp allows the camera to be installed in shelves. They are powered by a white power supply which is included.
