AXIS

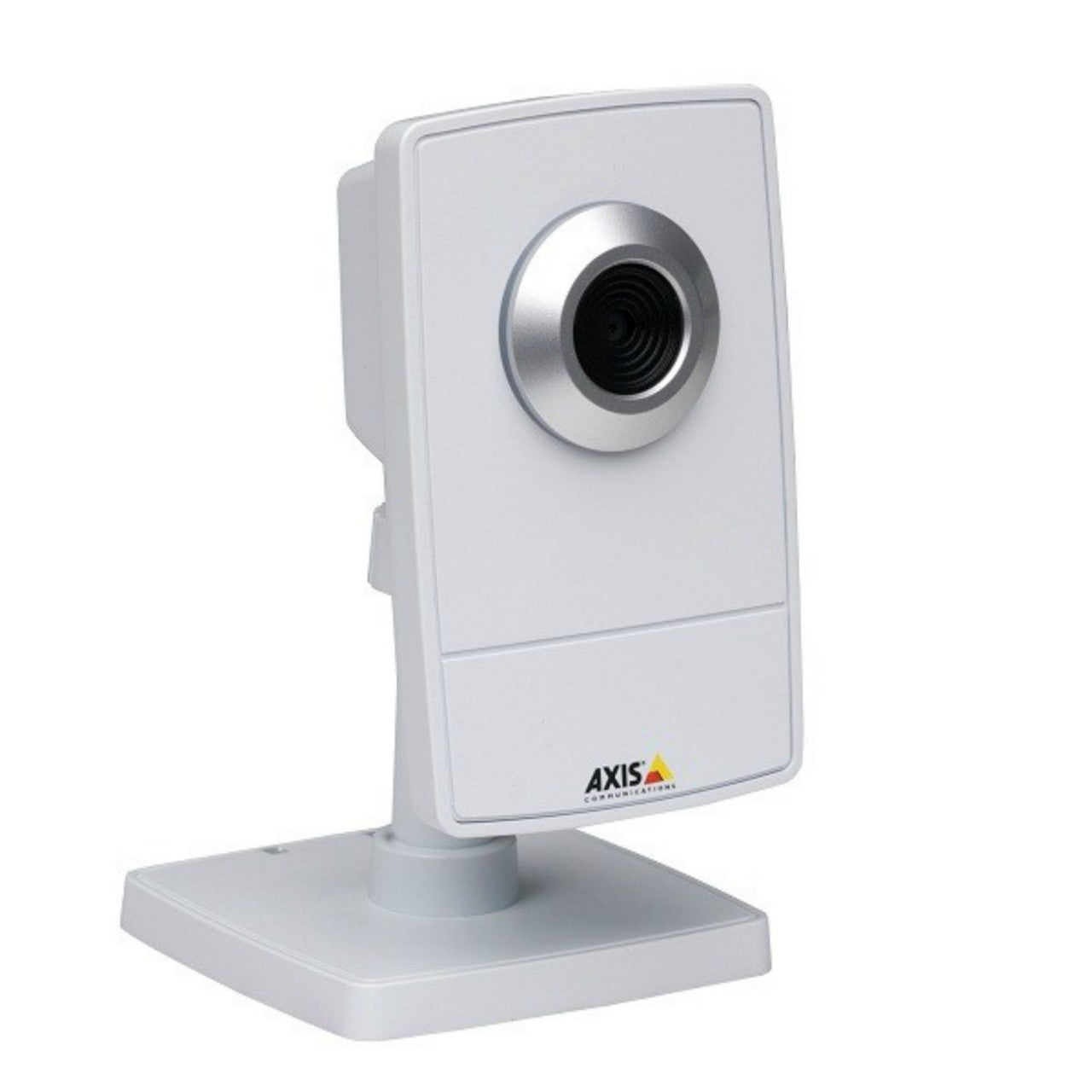

AXIS M1011 (0302-004) IP Network Camera
Replaced by: M1013 (0519-004)
- Resolution: 640x480 to 160x120
- Image Sensor: 1/4’’ progressive scan RGB CMOS
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: 1-10000 lux, F2.0
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: F2.0
- Focal Length: 4.4 mm
- Zoom: N/A
- Iris: fixed
- Focus: fixed
- Field of View: 47° view
- Compression Styles: H.264 Baseline (MPEG-4 Part 10/AVC), MPEG-4 Part 2 (ISO/IEC 14496-2), Motion JPEG
- Frame Rate: 30 fps in all resolutions
- Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, rotation, Text and image overlay, Privacy mask
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: Intelligent video, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS** encryption, IEEE 802.1X network access control, digest authentication, user access log, WEP 64/128 bit, WPA/WPA2-PSK, WPA, WPA2 Enterprise
- Users: N/A
- On-board Storage: No
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: Polycarbonate
- Dimensions: 6 cm (2") x 6.5 cm (
- Weight: 94 g (0.207 lb)
- Operating Temperature: 0 ºC to 50 ºC (32 ºF to 122 ºF)
- Operating Humidity: 20 - 80% RH (non-condensing)
- Power: 4.9 – 5.1 V DC, max. 2.2 W
- Warranty: One Year
- What's Included: Power supply, stand and clamp, Installation/Quick Guide, Installation and Management Software CD, Windows decoder, 1-user license
The AXIS M1011 (0302-004) network camera is the smallest security camera produced by AXIS Communications. This device is ideal for monitoring in areas where the environment cannot be overwhelmed by large security cameras. This makes it a perfect choice for boutiques, retail stores and restaurants where security is needed but where intrusive, large devices would not be suitable. It has powerful features built into its small frame, allowing for professional-quality monitoring of the area where the AXIS M1011 network camera is installed. The AXIS M1011 network camera supports multiple codecs. The camera can be set to record at MPEG-4 Part 2, which provides good quality video and high compression. Motion JPEG is provided for flexibility. The H.264 codec allows excellent compression and very high image quality. H.264 can reduce bandwidth and storage usage by up to 80% over other codecs. The AXIS M1011 network camera uses progressive scan technology. This allows the camera to capture even fast motion with great clarity compared to interlaced video. The device is also able to reduce bandwidth usage to accommodate increased efficiency. Recording in full VGA resolution, the AXIS M1011 network camera provides images that are suitable for close examination. The device supports advanced network protocols where security is concerned, including HTTPs Encryption. The camera comes with an open Application Programming Interface (API) and VAPIX from AXIS Communications. It also supports Quality of Service (QoS) to maximize network efficiency.
