AXIS

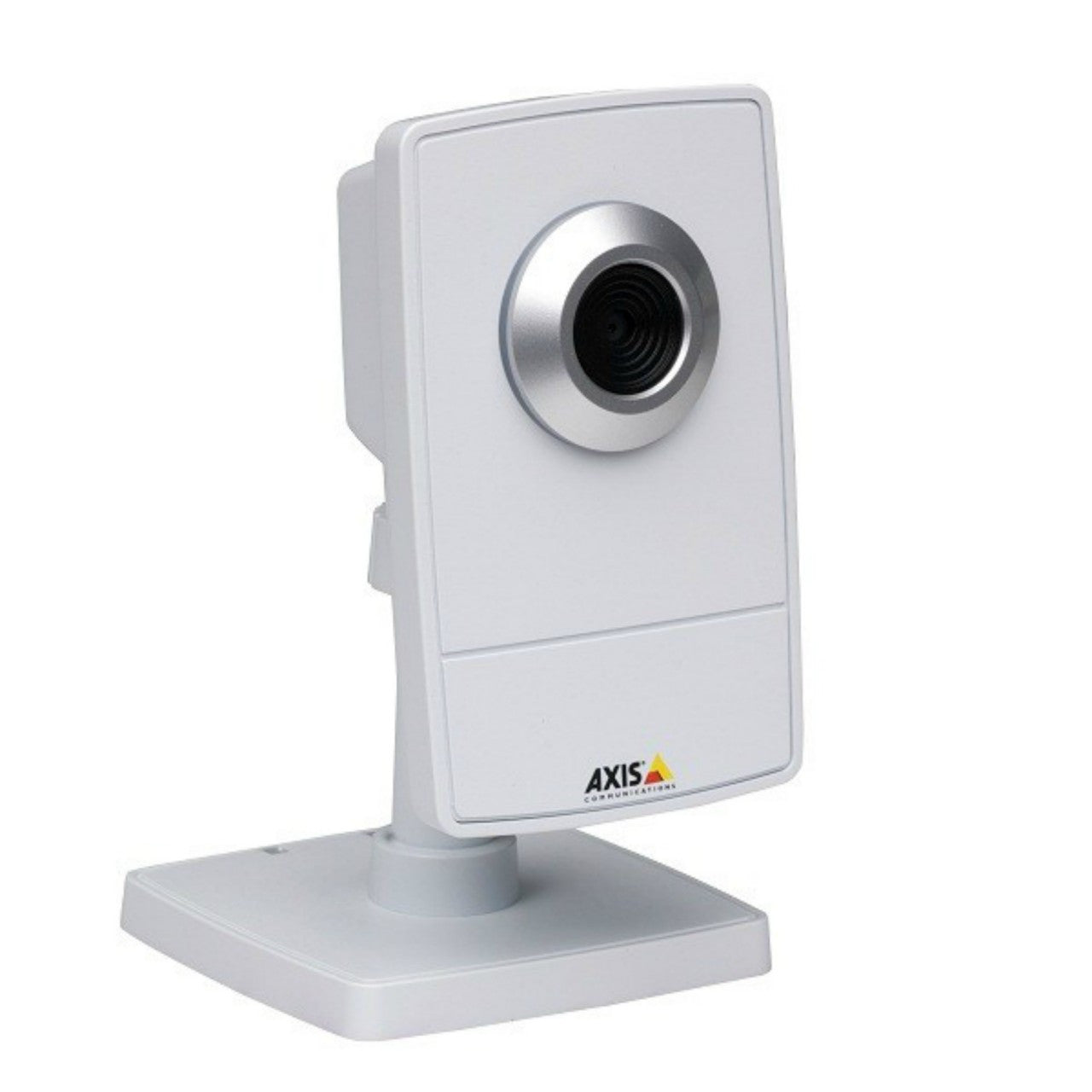

AXIS M1011-W (0301-004) Wireless Network Camera
Replaced by: M1004-W (0554-004)
- Resolution: 640x480 to 160x120
- Image Sensor: 1/4’’ progressive scan RGB CMOS
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: 1-10000 lux, F2.0
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: F2.0
- Focal Length: 4.4 mm
- Zoom: N/A
- Iris: fixed
- Focus: fixed
- Field of View: 47° view
- Compression Styles: H.264 Baseline (MPEG-4 Part 10/AVC), MPEG-4 Part 2 (ISO/IEC 14496-2), Motion JPEG
- Frame Rate: 30 fps in all resolutions
- Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, rotation, Text and image overlay, Privacy mask
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: Intelligent video, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS** encryption, IEEE 802.1X network access control, digest authentication, user access log, WEP 64/128 bit, WPA/WPA2-PSK, WPA, WPA2 Enterprise
- Users: N/A
- On-board Storage: No
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: Polycarbonate
- Dimensions:
- Weight: 94 g (0.207 lb)
- Operating Temperature: 0 ºC to 50 ºC (32 ºF to 122 ºF)
- Operating Humidity: 20 - 80% RH (non-condensing)
- Power: 4.9 – 5.1 V DC, max. 2.2 W
- Warranty: One Year
- What's Included: Power supply, stand and clamp, Installation/Quick Guide, Installation and Management Software CD, Windows decoder, 1-user license
- Notes: Wired and Wireless Interface
AXIS M1011-W (0301-004) Wireless Network Camera Overview
The AXIS M1011-W (0301-004) network camera is a compact but very powerful security camera. Provided with support for multiple codecs, it optimizes network bandwidth. The small size of the device allows for very discreet installations, making the device ideal for areas where security cameras may detract from the look of the environment. The AXIS M1011-W network camera is excellent for installation in offices, boutique shops, restaurants and hotels. It also makes an excellent, professional-quality choice for monitoring your own home. The AXIS M1011-W network camera records at full VGA resolution. The camera has a 30 frames per second capture rate, ensuring that it captures action smoothly. A progressive scan sensor increases the quality of the image, especially where motion is concerned. The camera can support streaming in multiple codecs. The Motion JPEG format ensures flexibility. MPEG-4 Part 2, and industry standard, provides detailed images and excellent compression. H.264 provides excellent compression and image quality and can adjust its bandwidth to accommodate network traffic. The H.264 codec can reduce the streaming and storage requirements for video by 80 percent over other codecs. The AXIS M1011-W network camera can transmit multiple simultaneous streams. This camera has other features that make it very easy to install. The AXIS M1011-W network camera may be networked via a standard Ethernet connection or via wireless. The device supports the IEEE 802.11g wireless protocol. This device is a high-quality solution that combines a compact design with many of the features of larger cameras.
