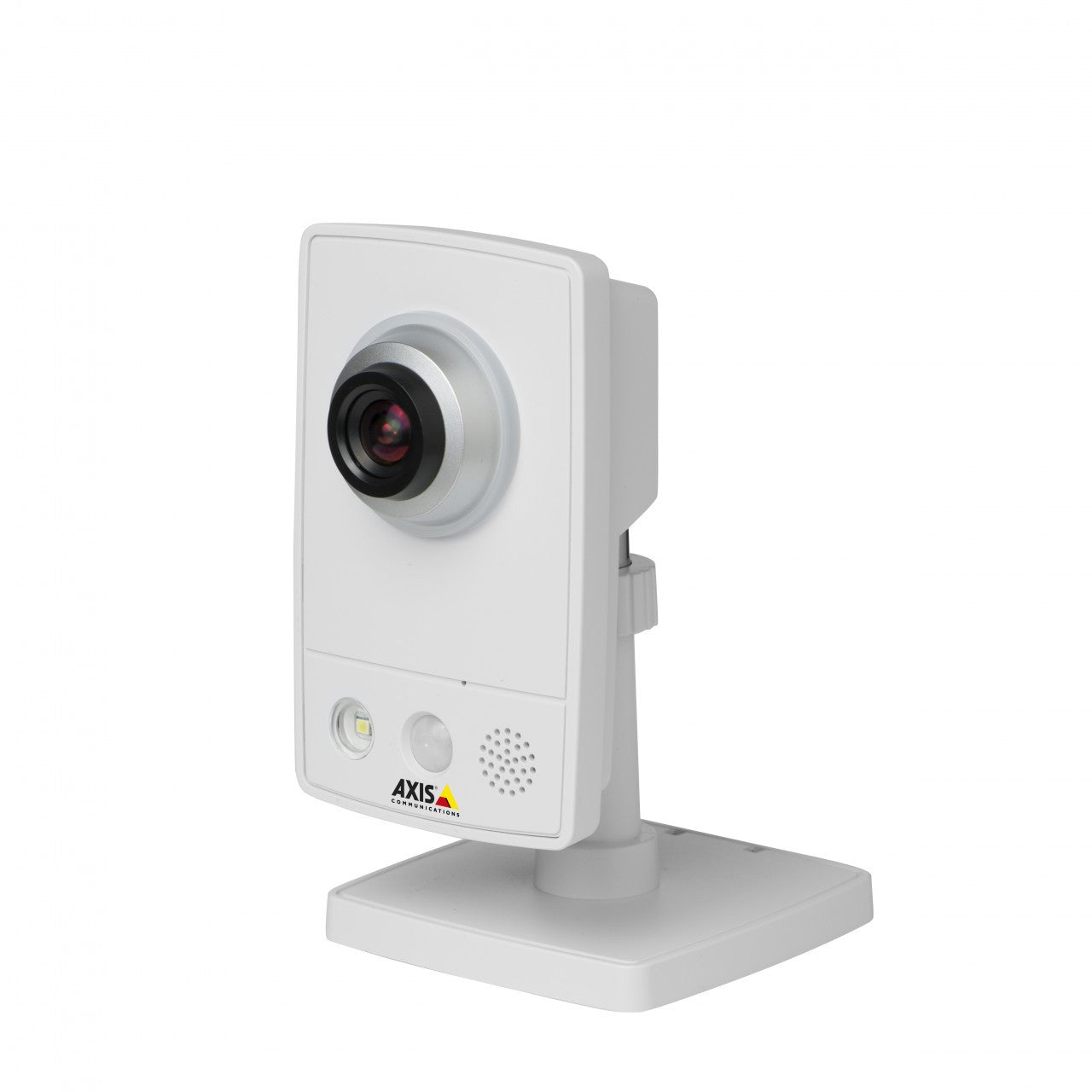

AXIS M1034-W (0522-004) Wireless HDTV Network Camera

AXIS M1034-W (0522-004) Wireless HDTV Network Camera Features

• Resolution: 1280x800 to 320x240
• Image Sensor: 1/4” progressive scan RGB CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 1.2 - 10000 lux, F2.0
• IR Illuminators: No, PIR Sensor
• PIR Sensor: Passive infrared (PIR) motion sensor with configurable sensitivity. Max range: 6 m, White illumination LED: 1 W, Class 1M
• Lens Type: 2.8 mm: 80° view*, F2.0, fixed iris, adjustable focus
• Zoom: Digital PTZ
• Compression Styles: H.264 Main Profile (MPEG-4 Part 10/AVC), Motion JPEG
• Frame Rate: H.264: 30 fps in all resolutions & Motion JPEG: 30 fps in all resolutions (performancemay be reduced in wireless mode)
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, backlight compensation, rotation Text and image overlay, Privacy mask
• Built-in Microphone: YES
• Audio Capabilities: Built-in microphone (can be disabled) and speaker, Two-Way
• Wireless interface: IEEE 802.11b/g/n
• Alarm/Event Management: Video motion detection, active tampering alarm, Audio detection
• ONVIF: YES
• On-board Storage: NO
• Indoor/Outdoor: Indoor
• Dimensions: 59mm (W) x 95mm (H) x 41mm (L) (2.3" x 1.4" x 3.7")
• Weight: 118 g (0.26 lb.)
• Operating Temperature: 0 ºC to 40 ºC (32 ºF to 104 ºF)
• Operating Humidity: Humidity 20 - 80% RH (non-condensing)
• Power: 4.9 – 5.1 V DC, max. 2.2 W
• Warranty: 1 Year
• What's Included: Power supply, stand and clamp, Installation/Quick Guide, Installation and Management Software CD, Windows decoder 1-user license

AXIS M1034-W (0522-004) Wireless HDTV Network Camera Overview

AXIS M1034-W offers the choice of either a wireless or a wired connection to the network. It features Wi-Fi Protected Setup™ protocol, which simplifies the process of configuring logical security on wireless networks. The combination of the wireless 802.11b/g/n standard and the WPS protocol assures user-friendliness and high network security, while enabling HDVT video to be streamed reliably over a wireless network. The AXIS M1034-W integrates a passive infrared (PIR) sensor for detecting movement – even in the dark. It includes a white LED for illuminating the scene automatically at an event or when requested by the user. It also offers two-way audio communication with integrated microphone and speaker, allowing remote listening in on an area as well as communication with individuals directly or using recorded audio clips. he mounting stand can be installed on wall and ceiling. For higher mounting flexibility, an optional extension is also available (100 mm or 4.0”). A mounting clamp allows the camera to be installed in shelves. They are powered by a white power supply which is included.
