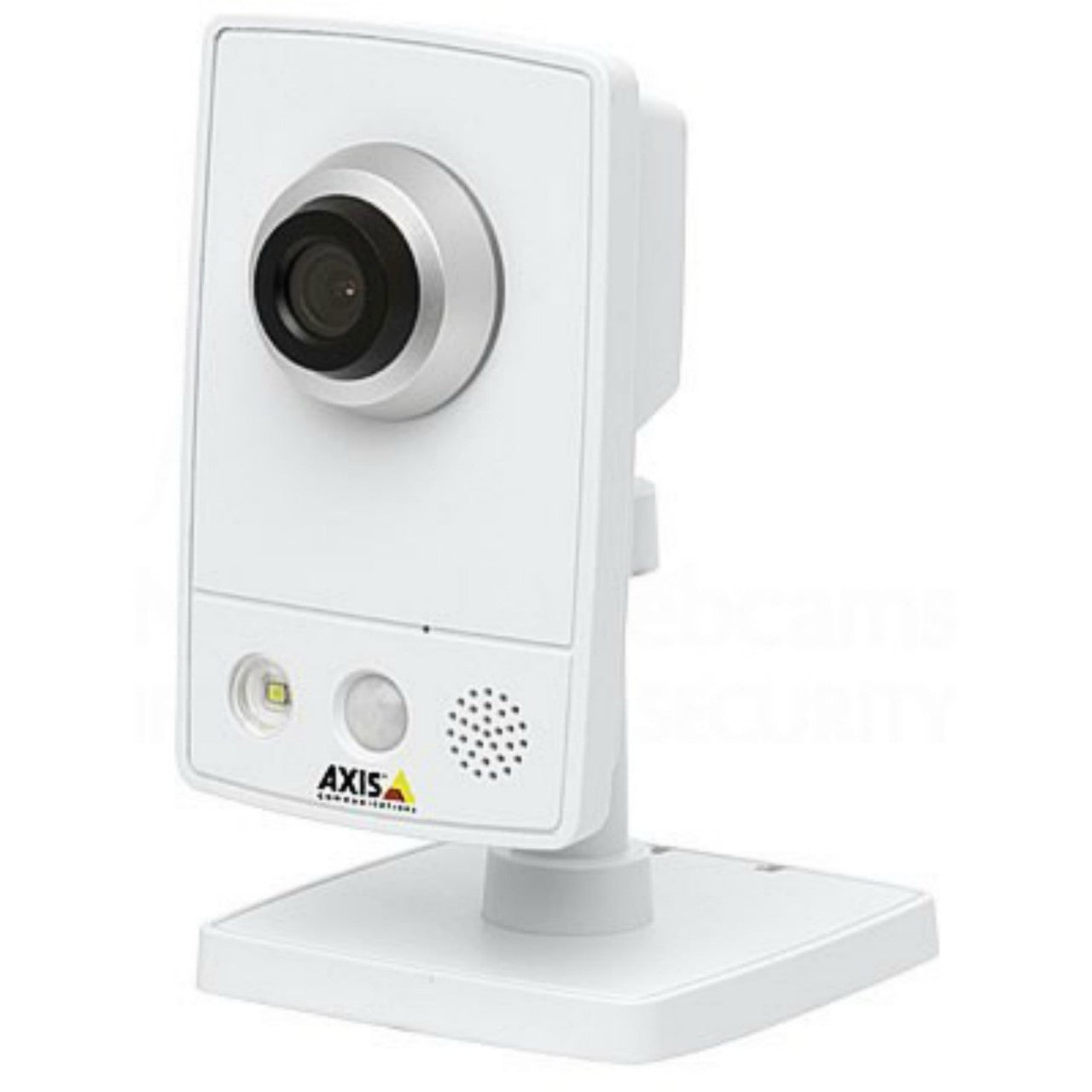

AXIS M1054 (0338-004) HDTV Network IP Camera

• Resolution: 1280x800 to 160x90
• Image Sensor: 1/4” progressive scan RGB CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 0 lux with illumination LED on
• IR Illuminators: Passive infrared (PIR) motion sensor with configurable sensitivity
• IR Illuminator Range: up to 6 m (19.7 ft)
• Lens Type: N/A
• Focal Length: 2.8 mm / F2.0
• Zoom: Digital PTZ
• Iris: Fixed
• Focus: Fixed
• Field of View: 84° horizontal
• Compression Styles: H.264 Baseline (MPEG-4 Part 10/AVC), Motion JPEG
• Frame Rate: 30 fps in all resolutions
• Image Settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure value, Backlight compensation, Rotation including Corridor Format, Text and image overlay, Privacy mask, Mirroring, Exposure control, Exposure zones
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Two-Way, Built-in microphone (can be disabled) and speaker
• Alarm/Event Management: Video motion detection, Active tampering alarm, External input, built-in PIR, audio detection, AXIS Camera Application Platform enabling installation of additional applications, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Pre- and post-alarm video buffering, External output activation, Video and audio recording to edge storage, Activation of illumination LED, Audio clip playback
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS encryption, IEEE, 802.1X network access control, digest authentication, user access log
• Users: 1
• On-board Storage: No
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: 95mm H x 59mm W x 41mm L (3.7" x 2.3" x 1.6") without stand
• Weight: 156 g (0.34 lb)
• Operating Temperature: 0 ºC to 40 ºC (32 ºF to 104 ºF)
• Operating Humidity: Humidity 20 - 80% RH (non-condensing)
• Power: 4.9 – 5.1 V DC, max. 2.2 W, Power over Ethernet IEEE 802.3af Class 2 (max. 6.49 W)
• Warranty: 1 Year
• What's Included: Power supply, stand and clamp, Installation/Quick Guide, Installation and Management Software CD, Windows decoder, 1-user license, Extension for stand: 100 mm (4.0”)

AXIS M1054 Overview

The AXIS M1054 (0338-004) fixed network camera is a small but powerful IP network camera for any type of application. With progressive scan and resolutions up to 1 megapixel (including HDTV 720p), the AXIS M1054 provides high quality video allowing you to see more. The M1054 supports both H.264 and M-JPEG video compression. Two way audio support is provided by the built in Microphone and Speaker. Intelligent video surveillance with built-in motion detection is also supported with an integrated PIR sensor which allows motion detection even in the dark. A white LED is also installed which will illuminate the area in an event. The AXIS M1054 can be powered by PoE (Power over Ethernet).
