AXIS

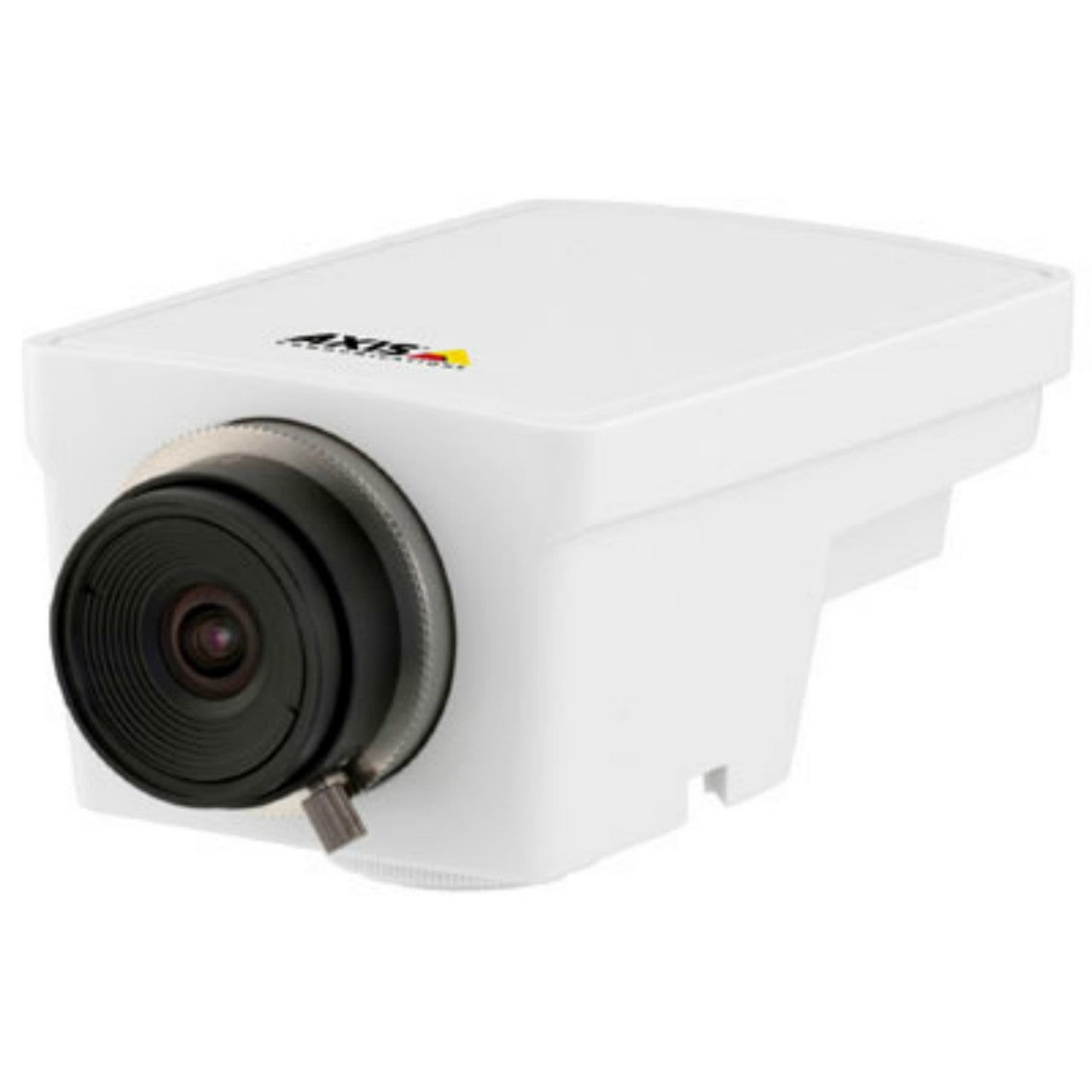

AXIS M1103 (0329-001) Compact Network IP Camera
Replaced by: AXIS M1124 ( 0747-001)
Discontinued.
AXIS M1103 Features
- Resolution: 800x600 to 160x90
- Image Sensor: Progressive scan RGB CMOS 1/4”
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: 2.8mm: 1.0 - 100000 lux, F2.0
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Fixed
- Focal Length: 2.8 mm / F2.0
- Zoom: N/A
- Iris: N/A
- Focus: Fixed
- Field of View: 66° horizontal
- Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: 30 fps in all resolutions
- Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, mirroring of images, Rotation – including Corridor Format, Text and image overlay, privacy mask
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: Video motion detection, active tampering alarm, Intelligent video, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, digest authentication, user access log
- Users: N/A
- On-board Storage: N/A
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: N/A
- Dimensions: See dimension picture
- Weight: 170 g (0.37 lb.)
- Operating Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
- Operating Humidity: 20 - 80% RH (non-condensing)
- Power: Power over Ethernet IEEE 802.3af Class 1
- Warranty: 1 Year
- What's Included: Stand, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license
- Optional Accessories: AXIS T93E05 Protective Housing (for AXIS M11 Network Cameras), Mounting Accessories, AXIS T8414 Installation Display, AXIS P8221 Network I/O Audio Module, AXIS Power over Ethernet products, Lenses
AXIS M1103 Overview
The AXIS M1103 offers a professional and affordable fixed camera suitable for a wide range of video surveillance applications, such as for retail and banking as well as libraries and other office buildings. The AXIS M1103 with CS-mount, fixed focal lens provides excellent image quality in SVGA resolution and offers multiple H.264 and Motion JPEG streams that can be individually optimized for bandwidth and storage efficiency. Power over Ethernet supplies power to the camera via the network, eliminating the need for power cables and reducing installation costs. The pixel counter further helps the installer verify that the pixel resolution of an object or face fulfills regulatory or specific customer requirements, for example, for facial identification purposes. The AXIS M1103 supports digital pan/tilt/zoom, which allows a view cropped from the full view to be streamed for viewing or recording.
