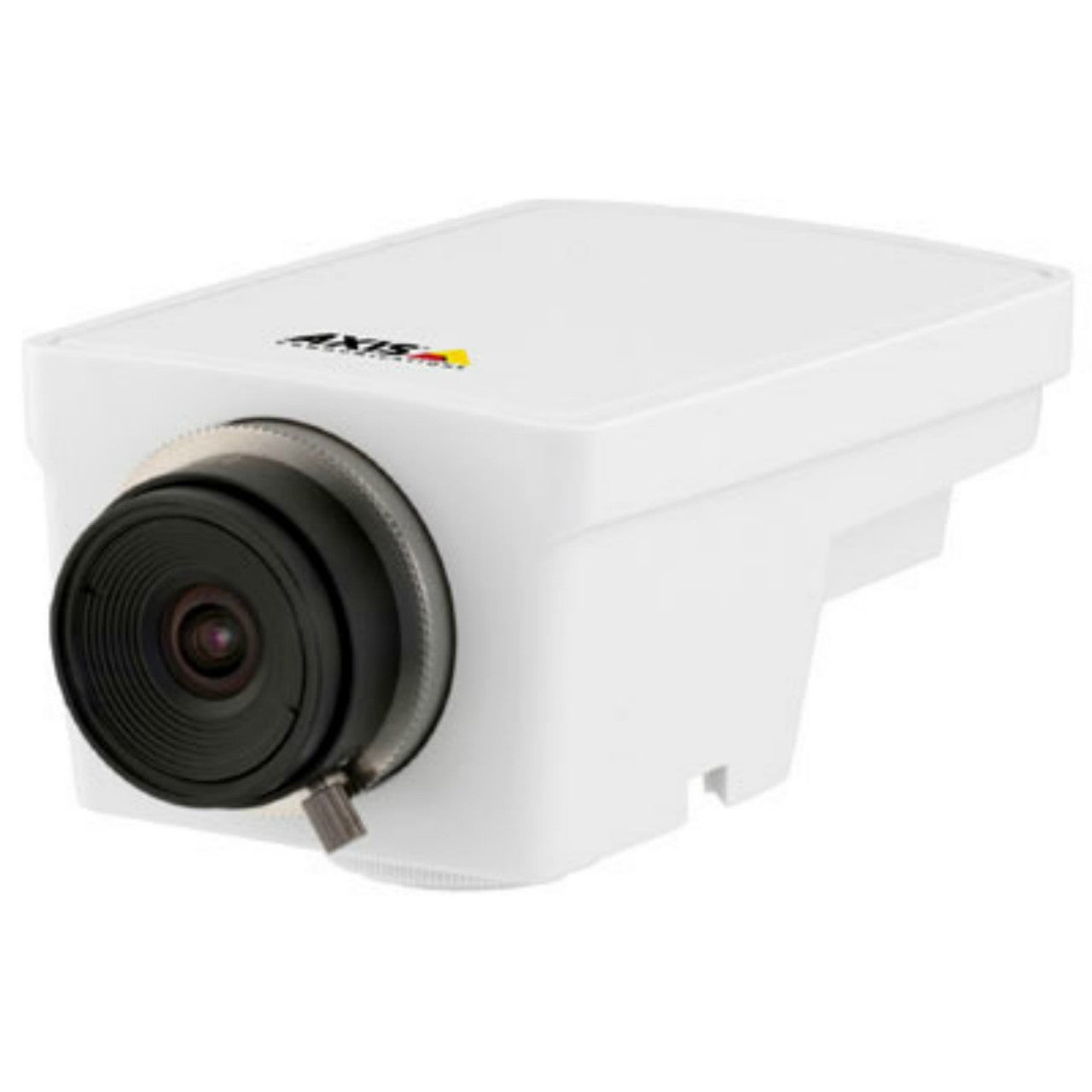

AXIS M1104 Compact Network IP Camera
Wall Mount
Ceiling Mount
Desk Mount
Dimensions
AXIS M1104 Compact Network IP Camera

AXIS

AXIS M1104 Compact Network IP Camera

Sale price$449.00
Discontinued
SKU: M1104
Discontinued.
AXIS M1104 Features
  • Resolution: 1280x800 to 160x90
  • Image Sensor: Progressive scan RGB CMOS 1/4”
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 2.8mm: 1.0 - 100000 lux, F2.0; 6mm: 0.9 - 100000 lux, F1.8
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed CS-Mount
  • Focal Length: 2.8 mm F2.0
  • Zoom: NDigital PTZ
  • Iris: DC-iris
  • Focus: N/A
  • Field of View: 80° view
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
  • Frame Rate: 30 fps in all resolutions
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, mirroring of images, Rotation – including Corridor Format, Text and image overlay, privacy mask
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Video motion detection, active tampering alarm, Intelligent video, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS** encryption, digest authentication, user access log
  • Users: N/A
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 61mm (W) x 43mm (H) x 94mm (L) (2.4" x 1.7" x 3.7")
  • Weight: 170 g (0.37 lb.)
  • Operating Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
  • Operating Humidity: 20 - 80% RH (non-condensing)
  • Power: Power over Ethernet IEEE 802.3af Class 1
  • Warranty: 3 Year
  • What's Included: Stand, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license. Midspan not included.
  • Please Note: Available with a 2.8mm lens (0339-001) or a 6mm lens (0367-001)

AXIS M1104 Overview

The features of the Axis M1104 camera make it a very flexible camera. It can be used in a range of different applications, from covert viewing to outdoor monitoring. Camera management tools provided by AXIS do all the work automatically to set options accordingly which would otherwise need to be done manually. You can set the IP address, check the connection status etc, all available from the camera management tool. The different lens configurations of 2.8 mm (part number 0339-001) and 6 mm (part number 0367-001) with Evetar 1.3 Megapixel lenses offer a range of angles. Different mounting accessories and fixed focal lenses of different sizes with support for accessories support make it favorite for the customer who has specific needs. The camera allows you to view live or recorded video on your smart phones, pocket PC or Mac. It can run alone without the need of a local computer. It can just be accessed via a web browser. The built in features like motion detection, audio video recording, and event notification by email make it a powerful and versatile choice.
