AXIS

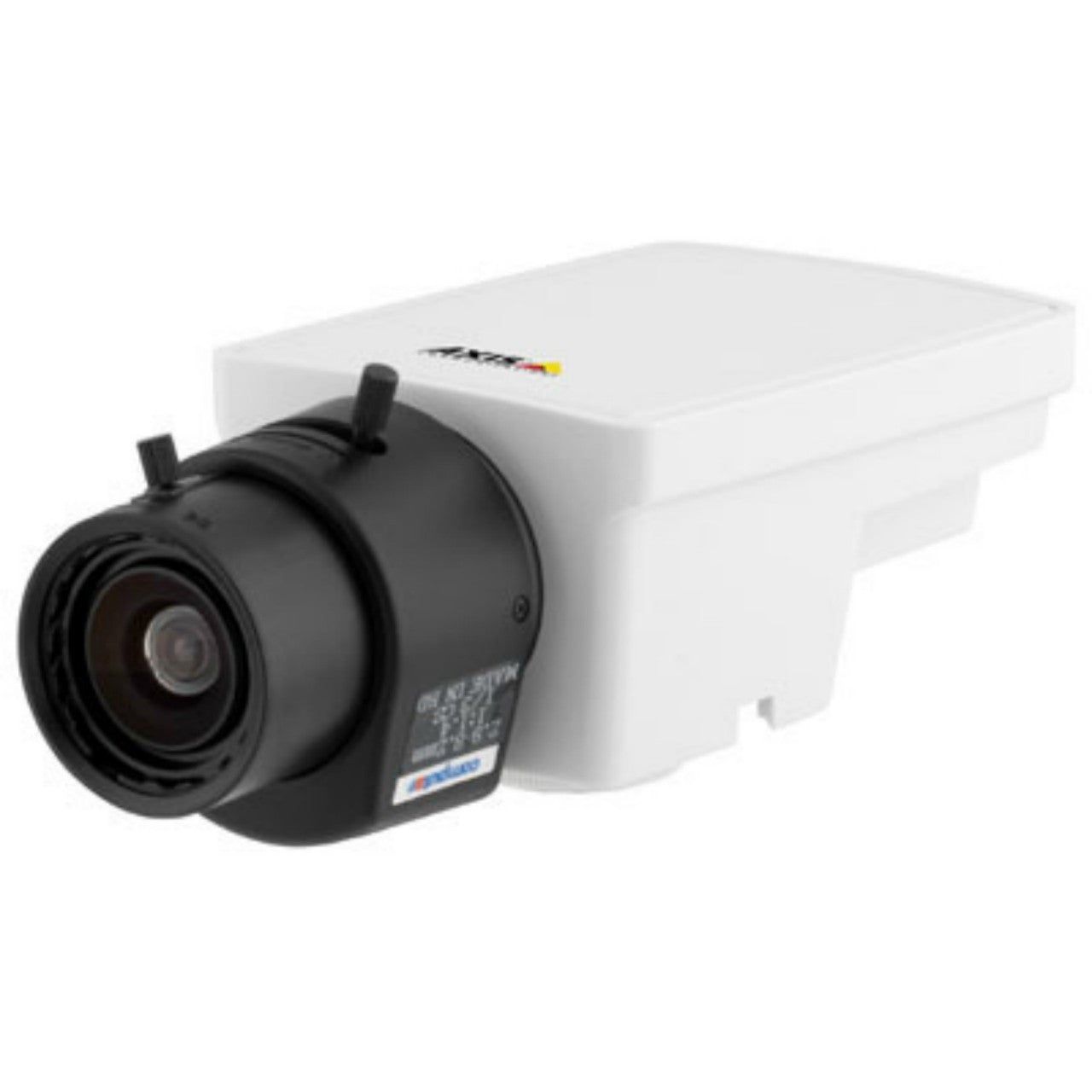

AXIS M1113 (0340-001) Network IP Camera
Replaced by: AXIS M1124 ( 0747-001)
Choose options
Replaced by: AXIS M1124 ( 0747-001)
Replaced by: AXIS M1124 ( 0747-001)
Discontinued, replaced by the M1124.
AXIS M1113 Features
- Resolution: 800x600 to 160x90
- Image Sensor: Progressive scan RGB CMOS 1/4”
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: 0.6 lux, F1.4
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Varifocal
- Focal Length: F1.4 2.9 - 8.2 mm
- Zoom: N/A
- Iris: Fixed
- Focus: N/A
- Field of View: 65° - 25° view
- Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: 30 fps in all resolutions
- Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, mirroring of images, Rotation – including Corridor Format, Text and image overlay, privacy mask
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: Video motion detection, active tampering alarm, Intelligent video; File upload: FTP, HTTP, network share and email; Notification: email, HTTP and TCP, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS** encryption,
- digest authentication, user access log
- Users: N/A
- On-board Storage: No
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: N/A
- Dimensions: 61mm (W) x 94mm (L) x 43mm (H) (3.4" x 3.7" x 1.7") Stand: 129mm (5.1")
- Weight: 200 g (0.44 lb.)
- Operating Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
- Operating Humidity: 20 - 80% RH (non-condensing)
- Power: Power over Ethernet IEEE 802.3af Class 1
- Warranty: 1 Year
- What's Included: Stand, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license
AXIS M1113 Overview
The professional design and appearance of this camera makes the AXIS M1113 (0340-001) the Axis “surveillance of choice.” Versatile options and design makes it the primary choice to be used in the public places such as housing societies, dormitories, banks etc. With the weight of just 200g and the sensible design, it can fit in any corner of choice where it can be virtually cloaked. Different stand options (part number 5017-111) and housing protections made up of strong materials provide protection against dust, rain, temperatures and foul play. CS-mount with varifocal DC-iris lens provides best image quality, and reduces motion blur with 30 frames per second in SVGA resolution. Multiple H.264 and Motion JPEG streams can be programmed for efficient bandwidth use and effective storage needs according to requirement. Equipped with different management tools and lenses makes it fit for the customer who wants to change the settings as he desire to view various pictures. The user can access the camera whenever he wants to. Whether sitting in the office or moving through traffic the stream is just one click away. Design tools, lens calculator, and camera management tools provide a wide range of options for the user.
