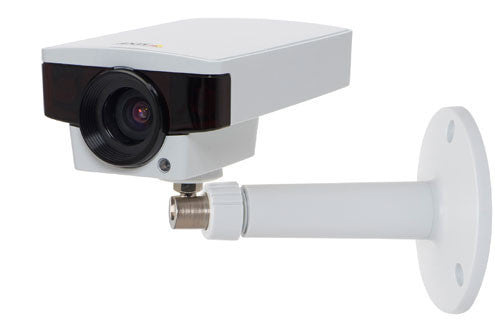

AXIS M1144-L (0436-001) Fixed Network Camera
Replaced by: AXIS M1145-L (0591-001)
Discontinued.
AXIS M1144-L (0436-001) Fixed Network Camera Features
- Resolution: 1280x800 to 352x240, 1 MP / HDTV 720p
- Image Sensor: Progressive scan RGB CMOS 1/4”Sensor Size:
- Day/Night: YES
- Mechanical IR Cut Filter: YES
- Minimum Illumination: Color: 0,6 lux, F1.4, B/W: 0,08 lux, F1.40 lux with IR illumination on
- IR Illuminators: Highly efficient IR LEDs with adjustable intensity and angle of illumination.
- IR Illuminator Range: Up to 15 m (50ft.)
- Lens Type: Varifocal
- Focal Length: 2.5-6 mm
- Zoom: Digital PTZ
- Iris: DC-iris
- Focus: Auto
- Field of View: horizontal angle of view 87°-40° view
- Compression Styles: H.264 Main Profile (MPEG-4 Part 10/AVC) Motion JPEG
- Frame Rate: 30 fps in all resolutions
- Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, Rotation: 0°, 90°, 180°, 270°, Text and image overlay, mirroring of images , Corridor Format
- Privacy Mask: YES
- Built-in Microphone: NO
- Audio Capabilities: NO
- Alarm/Event Management: Video motion detection, active tampering alarm, File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; video recording to edge storage; pre- and post-alarm video buffering
- ONVIF: YES
- Security: Password protection, IP address filtering, HTTPS encryption, digest authentication, user access log
- On-board Storage: MicroSD/MicroSDHC memory card slot (card not included) Support for recording to network share (network-attached storage or file server)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: Aluminium and PC/ABS Color: White NCS S 1002-B.
- Dimensions: Please see Diagram in the picures
- Weight: 250g (0.21 lb.)
- Operating Temperature: 0 °C to 40 °C (32 °F to 122 °F)
- Operating Humidity: 20 - 80% RH (non-condensing)
- Power: Power over Ethernet IEEE 802.3af Class 2; max. 5.9 W PoE enabled switch or midspan required (not included)
- Warranty: 1 Year
- What's Included: Stand, Lever tool, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
AXIS M1144-L (0436-001) Fixed Network Camera Overview
AXIS M1144-L Network Camera is an affordable and compact fixed camera, perfectly suited for boutiques, restaurants, hotels and offices or other places where surveillance is required during day and night. The compactly designed AXIS M1144-L offers built-in IR illumination for optimal day and night surveillance. With the highly efficient and discreet integration of IR LEDs, the camera provides automatic illumination of a scene in complete darkness, at an event or when requested by the user. The camera provides adjustable IR LED illumination, and is ideal for discovering objects in a range of up to 15 meters (50ft.) AXIS M1144-L offers support for edge storage that allows recording video directly to a storage such as an SD/SDHC card, thereby creating a flexible and reliable video surveillance system. Power over Ethernet supplies power to the camera via the network, eliminating the need for power cables and reducing installation costs. The input/output port can be used for simple notification to an alarm panel or control of a relay or similar. The input is also ideal, for instance, when using a PIR sensor.
