AXIS M1145
AXIS M1145
AXIS M1145 Dimensions

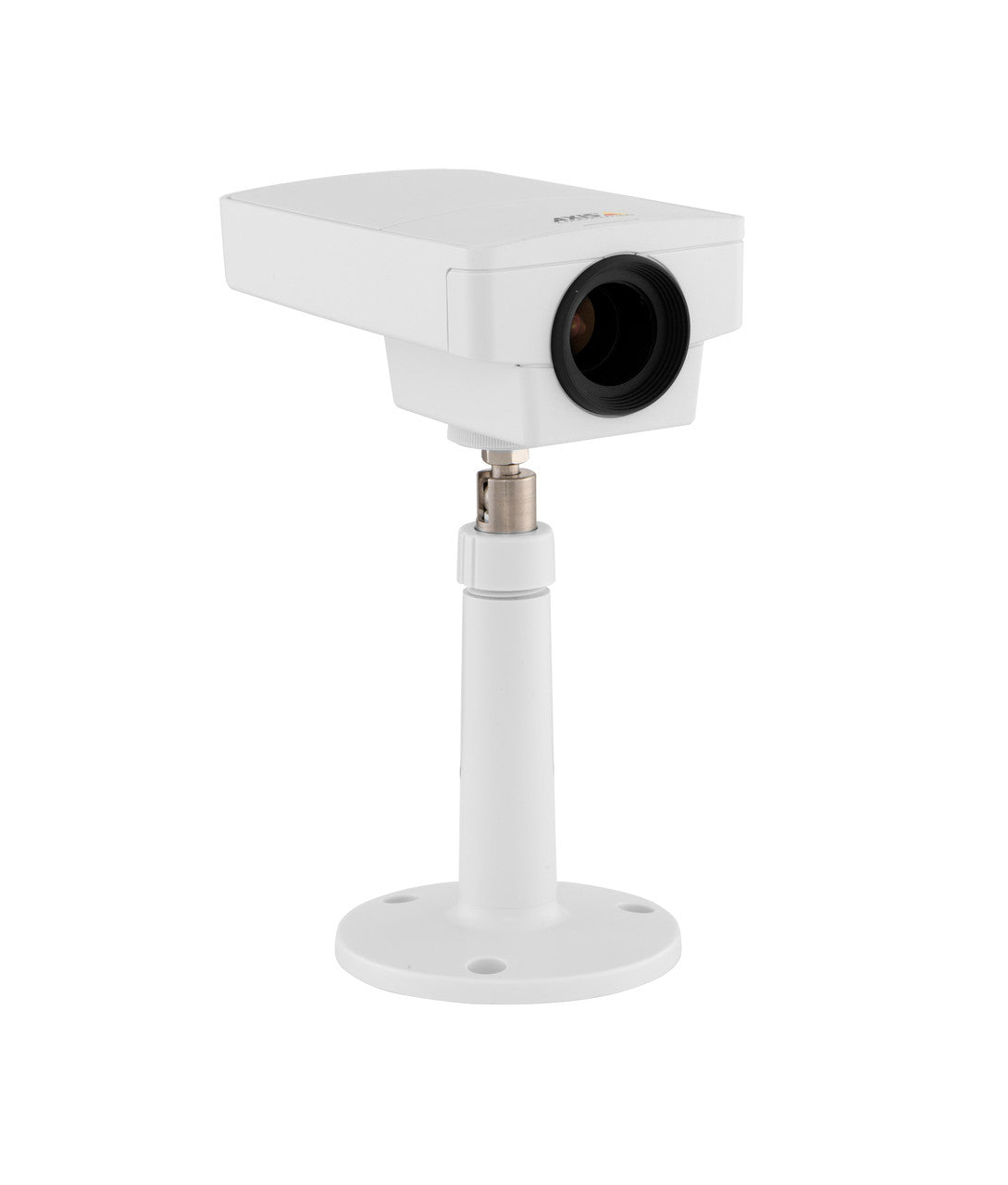

AXIS M1145 (0590-001) 2 MP HDTV Fixed Network Camera


AXIS M1145 (0590-001) 2 MP HDTV Fixed Network Camera

Sale price$499.00
SKU: M1145 (0590-001)

Replaced by: AXIS M1145-L (0591-001)

AXIS M1145 (0590-001) Features

  • Resolution: 1920x1080 to 352x240 (2 MP / HDTV 1080p)
  • Image Sensor: 1/2.9" Progressive scan RGB CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.4 lux, F1.4
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Board Mount Varifocal 3 - 10.5mm
  • Zoom: Remote Digital PTZ
  • Iris: P-iris
  • Focus: Remote
  • Field of View: 95°-34° horizontal
  • Compression Styles: H.264 Main and Baseline Profile (MPEG-4 Part 10/AVC), Motion JPEG
  • Frame Rate: 30 fps in all resolutions
  • WDR Technology: No
  • Image Settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Mirroring of images, Rotation – including Corridor Format, Text and image overlay
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Video motion detection, Active tampering alarm, Edge storage events, External input, Time scheduled, File upload via FTP, HTTP and network share, Email Notification via email, HTTP and TCP Pre- and post-alarm, video buffering, External output activation, Video recording to edge storage, Go to PTZ preset, Guard tour, Event data streaming, Pixel counter
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log
  • On-board Storage: MicroSD/MicroSDHC memory card slot (card not included)
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: see photo
  • Weight: 250 g (.55lb)
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Operating Humindity: 20–80% RH (non-condensing)
  • Power: Power over Ethernet IEEE 802.3af Class 1
  • Warranty: 1 year
  • What's Included: Camera, stand, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
AXIS M1145 (0590-001) Overview

AXIS M1145 offers a professional and affordable fixed camera suitable for a wide range of video surveillance applications, such as for retail and banking as well as libraries and other office buildings. It can be used indoors, as well as in an outdoor housing. AXIS M1145 with board-mount, varifocal, P-iris lens provides excellent image quality at 30 frames per second in 2 megapixel / HDTV resolution. The P-iris control provides optimal depth of field, resolution, image contrast and clarity. The cost-effective, compactly designed camera offers multiple H.264 and Motion JPEG streams that can be individually optimized for bandwidth and storage efficiency. The camera supports digital pan/tilt/zoom, which allows a view cropped from the full view to be streamed for viewing or recording. AXIS M1145 offers support for edge storage that allows recording video directly to a storage such as an microSD/SD/SDHC card, thereby creating a flexible and reliable video surveillance system. Power over Ethernet supplies power to the camera via the network, eliminating the need for power cables and reducing installation costs. AXIS M1145 also offers remote zoom and focus that eliminates the need for hands-on fine tuning and ensures that the camera’s angle of view is optimized for the area to be monitored. The input/output port can be used for simple notification to an alarm panel or control of a relay or similar. The input is also ideal, for instance, when using a PIR sensor.
