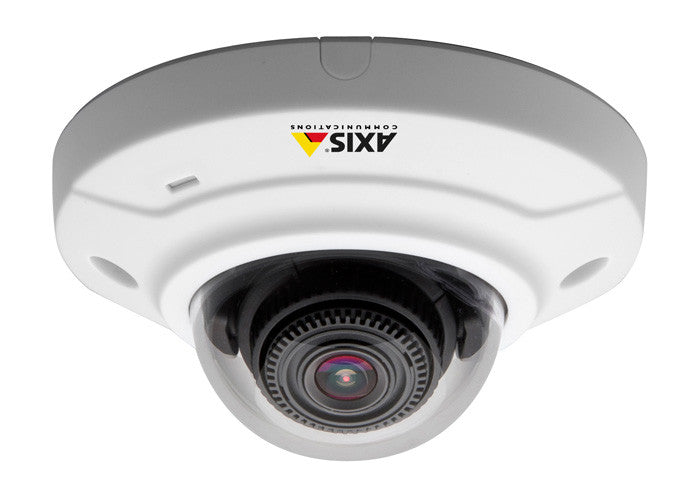

AXIS M3005-V (0517-001) HDTV Fixed Dome Network Camera
Replaced by: AXIS M3045-V (0804-001)
Discontinued; replaced by the M3045-V.
AXIS M3005-V (0517-001) HDTV Fixed Dome Network Camera Features
- Resolution: 2 MP resolution/HDTV 1080p
- Image Sensor: 1/2.7” progressive scan RGB CMOS
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: 1.5- 200000 lux, F2.8
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: M12 mount, F2.8, fixed iris
- Focal Length: 2.8 mm
- Zoom: No
- Iris: Fixed
- Field of View: 118° horizontal angle of view
- Compression Styles: H.264 Main Profile (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: 25/30 fps with power line frequency 50/60 Hz
- Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, backlight compensation, wide dynamic range - dynamic contrast, text and image overlay, mirroring of images, Rotation: 0°, 90°, 180°, 270°, including Corridor Format, Rotation: 0°, 90°, 180, 270°, including Corridor Format
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: External
- Alarm/Event Management: Video motion detection, active tampering alarm AXIS Camera Application Platform enabling installation of additional applications, File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP Video recording to edge storage, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X network access control, digest authentication, user access log
- On-board Storage: MicroSD/micro SDHC/micro SDXC slot supporting memory card up to 64 GB (card not included); support for recording to network share (network-attached storage or file server)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: IP42 water- and dust-resistant, IK08 impact-resistant casing; casing color: white NCS S 1002-B; encapsulated electronics, Polycarbonate/ABS casing
- Operating Temperature: 0 ºC to 40 ºC (32 ºF to 104 ºF)
- Operating Humidity: Humidity 15 - 85% RH (non-condensing)
- Power: Power over Ethernet IEEE 802.3af, Class 1, max. 2.7 W
- Warranty: 1 Year
- What's Included: Drill hole template, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, Torx L-key
AXIS M3005-V (0517-001) HDTV Fixed Dome Network Camera Overview
The palm-sized AXIS M3005-V Network Camera is an affordably priced, easy-to-install indoor fixed dome that supports HDTV 1080p and 2 MP resolution. It is ideal for retail stores, hotels, schools, banks and offices. XIS M3005-V is vandal- and dust-resistant, and designed for quick and flexible installation. With a 3-axis camera angle adjustment, the cameras can be mounted on walls or ceilings, and images can be easily leveled. No focusing is required as the camera comes focused at delivery. AXIS M3005-V offers a horizontal viewing angle of 118°. It supports Axis’ Corridor Format for vertically oriented video streams of areas such as corridors, hallways or aisles. To enable the camera to better blend in with the environment, skins are available in different colors. AXIS M3005-V also comes with a 2 m (6.6 ft.) network cable and are powered using Power over Ethernet (IEEE 802.3af), which simplifies installations. The camera’s support for AXIS Camera Application Platform enables the installation of intelligent video applications such as people counting. AXIS M3005-V offers a convenient video management solution with its built-in micro-SDHC memory card slot for edge storage and support for software such as the complimentary AXIS Camera Companion. Video streams can be encoded in H.264 and Motion JPEG. Intelligent capabilities such as enhanced video motion detection and detection of camera tampering attempts like blocking or spray-painting. Advanced security and network management features such as HTTPS encryption with preserved performance, IPv6 and Quality of Service.
