AXIS
AXIS M3007-PV (0515-001) Fixed Mini-Dome Panoramic Vandal-Proof Network Camera
Replaced by: AXIS M3047-P (0808-001)
AXIS M3007-PV (0515-001) Features
- Max Resolution: 5 MP resolution, 2592 x 1944
- Image Sensor: 1/3.2” progressive scan RGB CMOS
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: 0.6-200000 lux, F2.8
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: M12 mount, F2.8, fixed iris
- Focal Length: 1.3mm
- Zoom: Digital PTZ
- Iris: Fixed
- Field of View: 187° horizontal angle of view
- Compression Styles: H.264, Motion JPEG
- Frame Rate: 12 fps in 360° overview and panoramic views
- Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, backlight compensation, wide dynamic range - dynamic contrast, text and image overlay, mirroring of images, Rotation: 0°, 180°
- Viewing Modes: 360° overview, panorama, double panorama, quad view, up to 4 individually cropped out and dewarped view areas
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: External
- Alarm/Event Management: Video motion detection, active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications, File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP Video recording to edge storage, Pre- and post-alarm video buffering, Intelligent video, edge storage events, with AXIS M3007-P/-PV, additionally installed applicayions can be used in the 360° overview mode only
- ONVIF: No
- Security: Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X network access control, digest authentication, user access log
- On-board Storage: MicroSD/micro SDHC/micro SDXC slot supporting memory card up to 64 GB (card not included); support for recording to network share (network-attached storage or file server)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: IP42 water- and dust-resistant, IK08 impact-resistant, aluminum and polycarbonate/ABS casing
- Operating Temperature: 0 ºC to 45 ºC (32 ºF to 113 ºF)
- Operating Humidity: Humidity 15 - 85% RH (non-condensing)
- Power: Power over Ethernet IEEE 802.3af, Class 2, max. 4.6 W
- Warranty: 1 Year
- What's Included: Drill hole template, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, Torx L-key, Male RJ-45 10BASE-T/100BASE-TX PoE on a 2m (6.6ft) network cable
AXIS M3007-P (0543-001) Overview

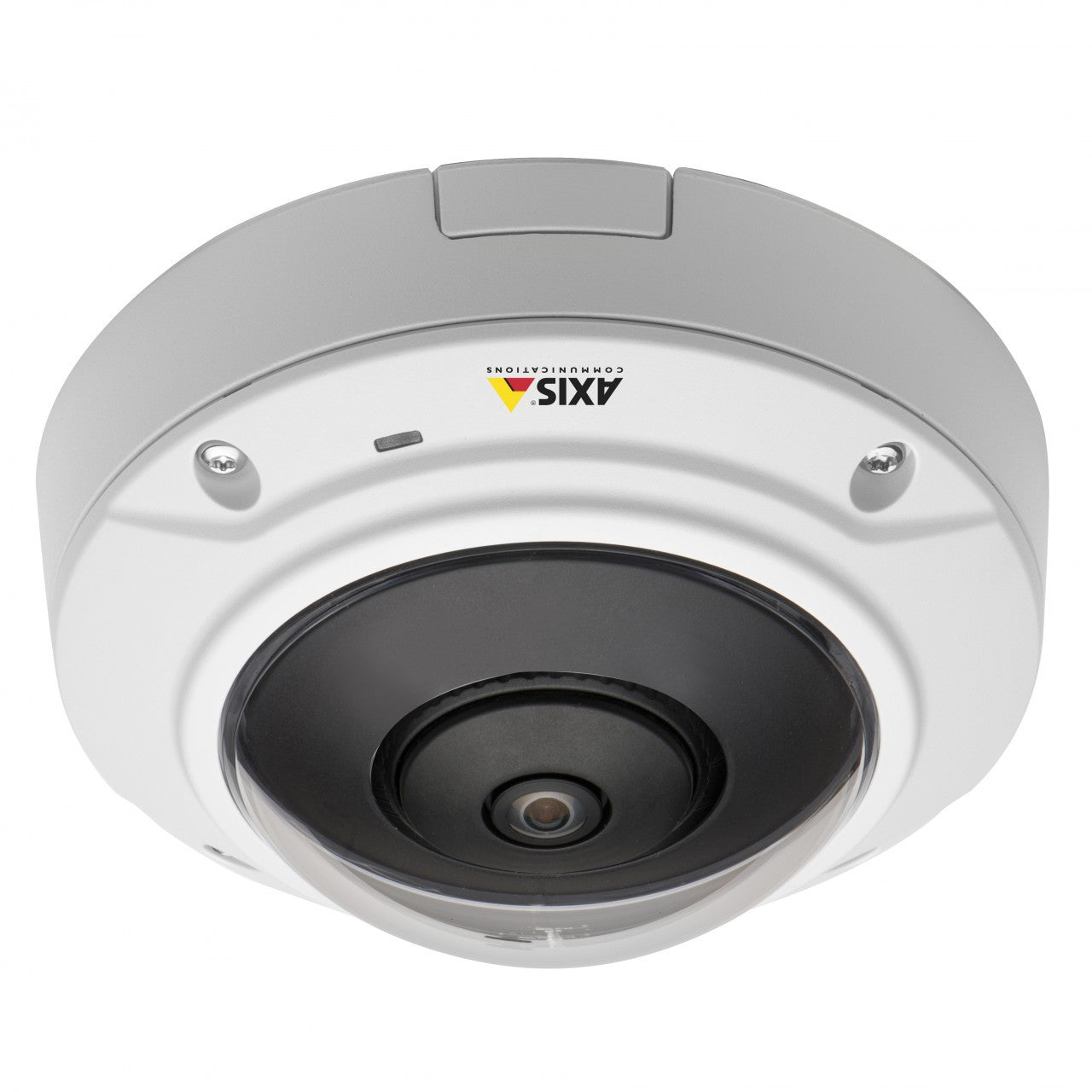

The affordably priced AXIS M3007-PV Network Camera is a 5-megapixel fixed mini dome that provides detailed, high quality 360° or 180° panoramic views of areas as large as 650 m² (7,000 sq. ft.). The vandal- and dust-resistant indoor mini dome can be used to detect activities, track the flow of people and improve area management. The camera is ideal for retail stores, hotels, schools and offices. AXIS M3007-PV offers different views: 360° overview and dewarped views such as panorama, double panorama and quad views. The quad view is suitable, for instance, when the camera is positioned at an intersection of corridors. The camera also provides four individually cropped out and dewarped view areas where users can digitally pan, tilt and zoom in on areas of interest. Multiple video streams in H.264 and Motion JPEG can be sent simultaneously. AXIS M3007-PV can be mounted on a wall or ceiling. The camera comes focused at delivery, which shortens the installation time. It has a 2 m (6.6 ft.) network cable attached and supports Power over Ethernet (IEEE 802.3af), which eliminates the need for power cables and reduces installation costs.AXIS M3007-PV offers video motion detection and active tampering alarm. In the 360° overview mode, the camera also supports the installation of intelligent video applications, such as people counting and heat mapping, through the AXIS Camera Application Platform. In addition, the camera’s built-in microSDHC card slot enables several days of recording to be stored locally on a memory card. When local storage is used together with the free AXIS Camera Companion, users have an easy way to remotely view and manage video from up to 16 cameras per site.
