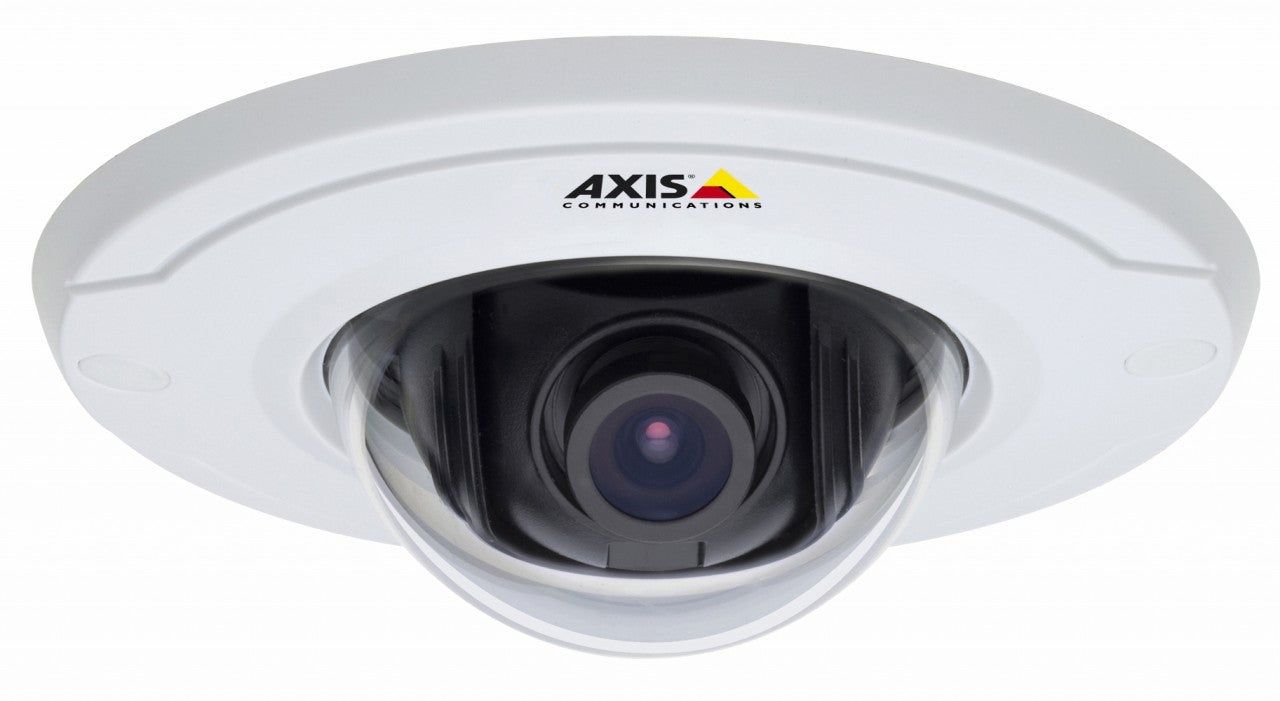

AXIS M3011 (0284-001) H.264 Dome Network Camera

Discontinued, replaced by the M3011.

AXIS M3011 Features

• Resolution: 640x480 to 160x120
• Image Sensor: 1/4 ” Progressive scan RGB CMOS VGA
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 1 - 100000 lux, F2.0
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Fixed
• Focal Length: 3.0 mm, F2.0
• Zoom: N/A
• Iris: Fixed
• Focus: N/A
• Field of View: 66°
• Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG, MPEG-4 Part 2 (ISO/IEC 14496-2)
• Frame Rate: 30 fps
• Image Settings: Compression, color, brightness, sharpness, contrast, white, balance, exposure control, exposure zones, backlight, compensation, fine tuning of behavior at low light, rotation, Text and image overlay, Privacy mask
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: N/A
• Alarm/Event Management: Video motion detection, active tampering alarm, Intelligent video, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, Pre- and post-alarm video buffering
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X network access control, digest authentication, user access log
• Users: N/A
• On-board Storage: N/A
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: Radius: 91.6 mm (3.6"); Dome Height: 27.8mm (1.1"); In-Ceiling Mount Height: 27.8mm (1.1"); In-Ceiling Mount Radius: 70.0mm (2.8"); Possible Ceiling Thickness: 1-80mm (0.1-3.1")
• Weight: 260 g (0.6 lb.)
• Operating Temperature: 0 ºC – 50 ºC (32 ºF – 122 ºF)
• Operating Humidity: Humidity 20 - 80% RH (non-condensing)
• Power: Power over Ethernet IEEE 802.3af Class 1
• Warranty: 1 Year
• What's Included: Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license (mid-span not included)

AXIS M3011 Overview

The AXIS M3011 (0284-001) fixed dome network camera is designed to provide discreet surveillance. The camera features a design that allows it to be mounted in drop ceilings. This recessed mounting allows the camera to have a very non-intrusive 3cm profile, making it ideal for rooms where the cameras need to be integrated into the environment. The camera has a diameter of 9cm in total, but provides sharp image capture. The AXIS M3011 fixed dome network camera also streams in two formats. The AXIS M3011 fixed dome network camera can send two streams at once. It can use the H.264 or Motion JPEG formats and each stream can be customized. The camera records in VGA resolution. It is also compatible with the MPEG-4 format. The camera can also detect when vandalism attempts are made. With built in motion detection, it can keep close watch on a scene. If someone attempts to paint the camera or to obstruct its view, the camera will detect it. The AXIS M3011 fixed dome network camera supports network security protocols including HTTPS encryption. The camera is also compatible with Quality of Service (QoS), allowing it to be used on the most sophisticated networks and to optimize bandwidth usage. This camera can be powered via PoE (Power over Ethernet). This means that the camera can be hooked up to the Ethernet with no separate source of power.
