AXIS

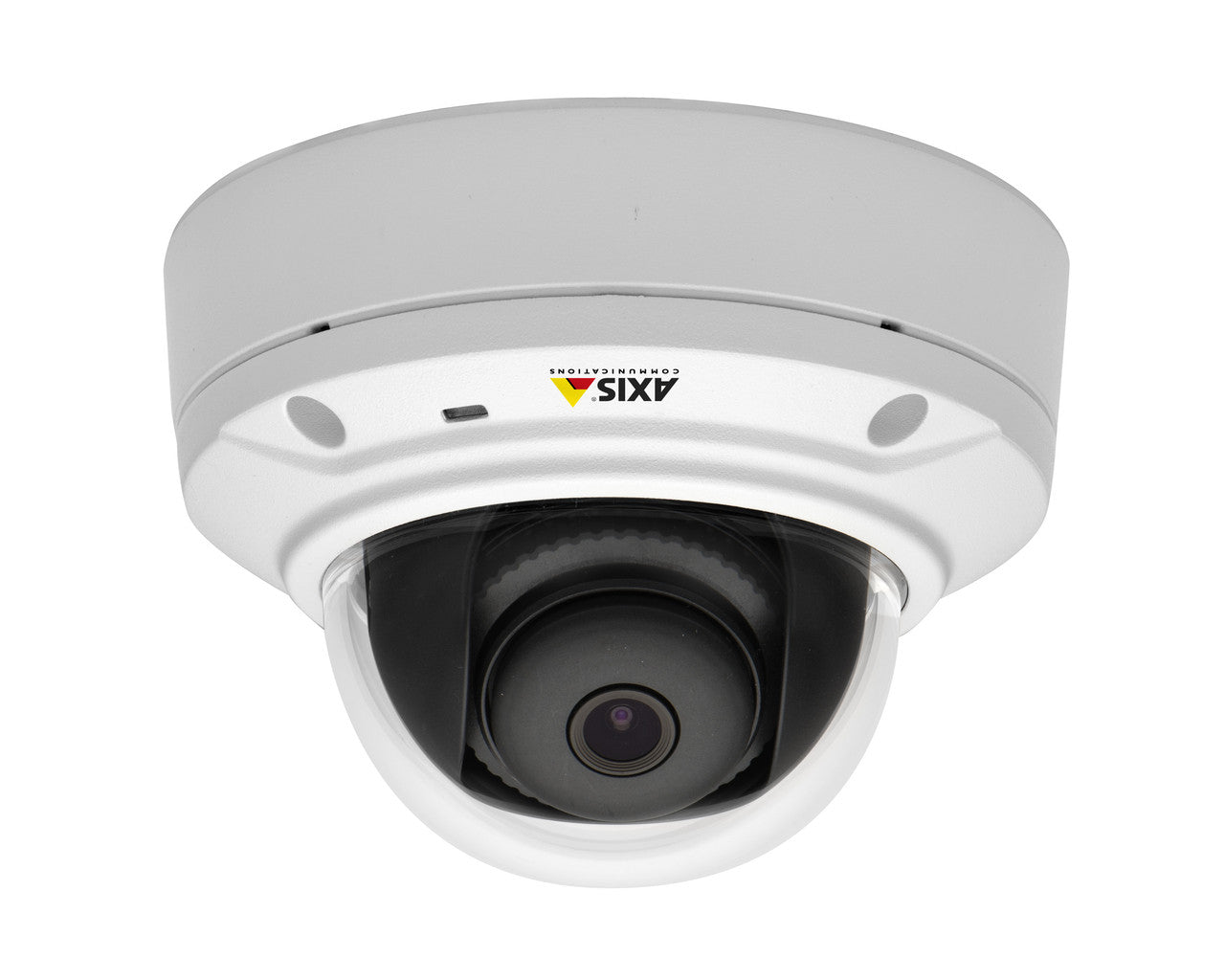

AXIS M3025-VE (0536-001) 2MP Fixed Dome Network Camera
Replaced by: AXIS M3205-LVE (01517-001)
Choose options
Replaced by: AXIS M3205-LVE (01517-001)
Replaced by: AXIS M3205-LVE (01517-001)
AXIS M3025-VE Features
- Resolution: 2 MP / HDTV 1080p: 1920x1080 (2 MP/HDTV 1080p) to 320x240
- Image Sensor: 1/2.7” progressive scan RGB CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.8–100000 lux, F2.0; B/W: 0.16 lux, F2.0
- IR Illuminators: No
- IR Illuminator Range: None
- Lens Type: M12 mount, IR corrected
- Focal Length: 3.6mm / F2.0
- Zoom: Digital PTZ
- Iris: Fixed
- Focus: Manual
- Field of View: 91° horizonal
- Compression Styles: H.264 Main Profile (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: 25/30 fps with power line frequency 50/60 Hzz
- WDR Technology: Yes
- Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, backlight compensation, text and image overlay, mirroring of images, Rotation: 0°, 90°, 180°, 270°, including Corridor Format
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: Video motion detection, active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, Edge storage events, External input, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, External output activation, Video recording to edge storage, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
- On-board Storage: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66 weatherproof, NEMA 4X-rated, IK10 vandal-proof
- Weight: 740g (1.6 lb)
- Operating Temperature: -30ºC to 50ºC (-22ºF to 122ºF)
- Operating Humidity: Humidity 10 - 100%% RH (condensing)
- Power: Power over Ethernet IEEE 802.3af/802.3at Type 1, Class 2, max 3.2 W
- Warranty: 3 years
- What's Included: Camera, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, Drill hole template, Resitorx L-key, Terminal block connector
AXIS M3025-VE Network Camera, which is part of the AXIS M30 Series, is an affordably priced, vandal-resistant HDTV fixed mini dome for excellent video during day and night-time conditions in indoor or outdoor environments. It is ideal for installation inside or outside the entrance of a hotel, boutique, restaurant, office or school. AXIS M3025-VE provides 2 MP, HDTV 1080p video. The outdoor-ready camera has IP66 and NEMA 4X ratings for protection against dust, rain and snow. The camera’s IK 10 rating ensures resistance against impacts. It also has day/night functionality with an automatically removable infrared-cut filter. When the filter is removed, the camera takes advantage of invisible near-infrared light from available light sources to produce good quality black and white images. The fixed dome can be mounted on walls, ceilings or pendants. It has a 3-axis camera angle adjustment for flexible installation. The camera also supports Axis’ Corridor Format for vertically oriented video streams that maximize coverage of areas such as along walls or aisles. The camera comes focused at delivery. AXIS M3025-VE has input/output ports for connection to external devices. It also supports AXIS Camera Application Platform for intelligent video applications. The camera offers a convenient video management solution with its built-in memory card slot for edge storage and support for software such as the complimentary AXIS Camera Companion. The camera comes with a 2 m (6.6 ft.) network cable and is powered using Power over Ethernet (IEEE 802.3af).
