AXIS M3027-PVE dimensions
AXIS M3027-PVE (0556-001) 5MP Panoramic Dome Network Camera


AXIS M3027-PVE (0556-001) 5MP Panoramic Dome Network Camera

Sale price$749.00
SKU: M3027-PVE (0556-001)

Replaced by: AXIS M3057-PLVE (01177-001)


AXIS M3027-PVE Features

  • Resolution: 5 MP: 2592x1944 (5 MP) to 160x120
  • Image Sensor: 1/3.2” progressive scan RGB CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.3–200000 lux, F2.0, B/W: 0.06 lux, F2.0
  • IR Illuminators: No
  • IR Illuminator Range: None
  • Lens Type: M12 mount, IR corrected
  • Focal Length: 2.8mm / F2.0
  • Zoom: Digital PTZ
  • Iris: Fixed
  • Focus: Manual
  • Field of View: 187° horizonal
  • Compression Styles: H.264 Main Profile (MPEG-4 Part 10/AVC), Motion JPEG, H.264 Baseline Profile
  • Frame Rate: 25/30 fps with power line frequency 50/60 Hzz
  • WDR Technology: Yes
  • Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, backlight compensation, text and image overlay, mirroring of images, Preset positions, Guard tour. Digital PT of panorama, double panorama and quad views, Rotation: 0°, 180°, Exposure zones, Fine tuning of low light behavior
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Video motion detection, active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, Edge storage events, External input, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, External output activation, Video recording to edge storage, Pre- and post-alarm video buffering, Go to PTZ preset, Guard tour
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
  • On-board Storage: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 weatherproof, NEMA 4X-rated, IK10 vandal-proof
  • Weight: 740g (1.6 lb)
  • Operating Temperature: -30ºC to 50ºC (-22ºF to 122ºF)
  • Operating Humidity: Humidity 10 - 100%% RH (condensing)
  • Power: Power over Ethernet IEEE 802.3af/802.3at Type 1, Class 2, max 4.5 W
  • Warranty: 3 years
  • What's Included: Camera, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, Drill hole template, Resitorx L-key, Terminal block connector
AXIS M3027-PVE Overview

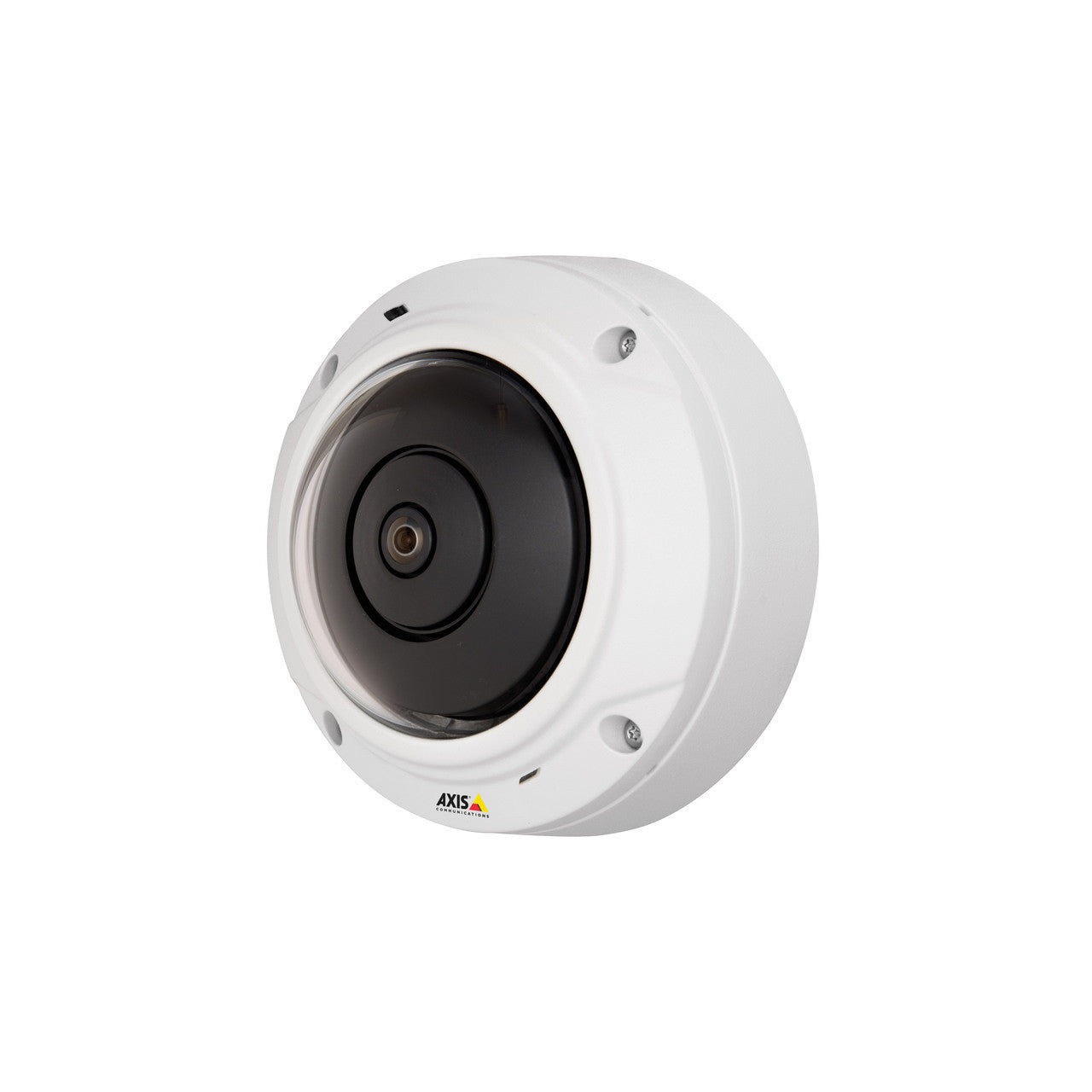

The AXIS M3027-PVE Network Camera is a 5-megapixel fixed mini dome that provides detailed, high quality 360° or 180° panoramic views. The vandal resistant, outdoor-ready mini dome can be used to detect activities, track the flow of people and improve area management. The camera is ideal for installations indoors or outdoors at hotels, gas stations, boutiques, restaurants, schools and offices. AXIS M3027-PVE offers different views: 360° overview and dewarped views such as panorama, double panorama and quad views. The quad view is suitable, for instance, when the camera is positioned at an intersection. The camera also provides four individually cropped out and dewarped view areas where users can digitally pan, tilt and zoom in on areas of interest. Multiple video streams in H.264 and Motion JPEG can be sent simultaneously. The mini dome is outdoor-ready and vandal-resistant, with IP66, NEMA 4X and IK10 ratings. It has day/night functionality with an automatically removable infrared-cut filter. When the filter is removed, the camera takes advantage of invisible near-infrared light from available light sources to produce good quality black and white video. AXIS M3027-PVE can be mounted on a wall or ceiling. The camera comes focused at delivery, which shortens the installation time. It has a 2 m (6.6 ft.) network cable attached and supports Power over Ethernet (IEEE 802.3af), which eliminates the need for power cables and reduces installation costs. AXIS M3027-PVE offers video motion detection and active tampering alarm. The camera also supports the installation of intelligent video applications, such as people counting and heat mapping, through the AXIS Camera Application Platform. In addition, the camera’s built-in microSDHC card slot enables several days of recording to be stored locally on a memory card. When local storage is used together with the free AXIS Camera Companion, users have an easy way to remotely view and manage video from up to 16 cameras per site.
