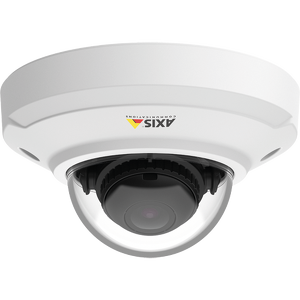

AXIS M3045-V (0804-001) 2MP HDMI Output Fixed Mini Dome Network Camera
Replaced by: AXIS M3065-V (01707-001)
AXIS M3045-V (0804-001) Features
- Image sensor: 1/3” progressive scan RGB CMOS
- Lens: M12 mount, Fixed iris, Fixed focus, 2.8 mm, F2.0
- Horizontal field of view: 106°
- Vertical field of view: 59°
- Video compression: H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profiles, Motion JPEG
- Resolutions: 1920x1080 (1080p) to 320x240
- Frame rate: 25/30 fps with power line frequency 50/60 Hz
- Image settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, WDR, Text and image overlay, Mirroring of images, Privacy mask, Rotation: 0°, 90°, 180°, 270°, including Corridor Format
- Security Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User
- access log, Centralized Certificate Management
- Event triggers: Analytics, Edge storage events
- Event actions: File upload: FTP, SFTP, HTTP, HTTPS network share and email
- Notification: email, HTTP, HTTPS and TCP and SNMP trap, Video recording to edge storage, Send video clip, Pre- and post-alarm video buffering. Overlay text
- Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 1 Typical 2.6 W, max 3.0 W
- Storage: Support for microSD/microSDHC/microSDXC card, Support for recording to dedicated network-attached storage (NAS)
- Operating conditions: 0 °C to 45 °C (32 °F to 113 °F)
- Humidity: 15-85% RH (non-condensing)
- Dimensions: Height: 56 mm (2.2 in) x ø 101 mm (4.0 in)
- Weight: 170 g (0.38 lb)
- Included accessories: Installation Guide, Windows decoder 1-user license, Torx L-key
