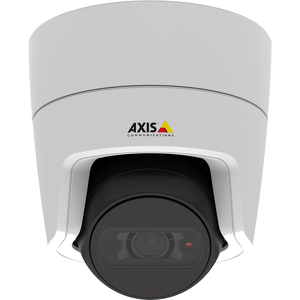

AXIS M3106-LVE (0870-001) 4MP IR Dome Network Camera
Replaced by: AXIS M3106-LVE MK II (01037-001)
AXIS M3106-LVE (0870-001) Features
- Image sensor: 1/3" progressive scan RGB CMOS
- Lens: 2.4 mm / F2.2, M12 mount, Fixed iris, Fixed focus
- Field of view: 130° (H), 73° (V)
- Minimum illumination: Color: 0.3 lux at 50 IRE, F2.2; B/W: 0.06 lux at 50 IRE, F2.2; 0 lux with IR illumination on
- Video compression: H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profiles, Motion JPEG
- Resolutions: 2688x1520 to 320x240
- IR illumination: Power-efficient, long-life 850 nm IR LEDs. Range of reach up to 15 m (50 ft) depending on scene
- Frame rate: 25/30 fps with power line frequency 50/60 Hz
- Image settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, WDR, Rotation: 0°, 90°, 180°, 270° including Corridor Format, Text and image overlay, Privacy masks, Mirroring of images, Overlay text
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized Certificate Management
- ONVIF: Profile S
- Alarm Triggers: AXIS Video Motion Detection 3, Active tampering alarm, Support for AXIS Camera Application Platform enabling installation of AXIS Cross Line Detection, AXIS Digital Autotracking and third-party applications
- Alarm Actions: File upload: FTP, SFTP, HTTP, HTTPS network share and email, Notification via email, HTTP, HTTPS and TCP and SNMP trap, Video recording to edge storage, Send video clip, Pre- and post-alarm video buffering
- Power / Consumption: PoE IEEE 802.3af/802.3at Type 1 Class 1 / Typical 2.8 W, max 3.2 W
- Storage: Support for microSD/microSDHC/microSDXC card
- Operating conditions: –30°C to 50°C (–22 °F to 122 °F)
- Humidity: 10-100% RH (non-condensing)
- Dimensions: Height: 94 mm (3.7 in) x ø 101 mm (4.0 in)
- Weight: 370 g (0.81 lb)
- Included accessories: Installation Guide, Windows decoder 1-user license, Torx L-key
AXIS M3106-LVE is a flexible mini dome that gives you built-in IR illumination and Quad HD video quality at an attractive price. Our best-in-class product, it’s suitable for outdoor use and perfect at the back entrance of a store, restaurant or hotel, for instance. With its built-in IR illumination AXIS M3106-LVE network camera is ideal for situations where it’s sometimes dark or the lighting can be poor. Its innovative flat-faced design suppresses light reflections to maximize image usability when recording in the dark. AXIS M3106-LVE also offers Wide Dynamic Range (WDR) for excellent detail when light levels vary greatly, for example, at entrances with bright daylight outside and dimmer light inside.
AXIS M3106-LVE gives you sharp Quad HD image quality and a field of view of up to 130°. It features Axis’ Zipstream technology, which greatly reduces storage and bandwidth needs, while capturing important details in full image quality. AXIS M3106-LVE also supports video analytics such as Video Motion Detection and Active tampering alarm. Thanks to the AXIS Camera Application Platform, you can also choose to install AXIS Cross Line Detection, and AXIS Digital Autotracking, as well as third-party analytics solutions such as people counting. Small and flexible, AXIS M3106-LVE can be mounted on walls or ceilings as you prefer. Its smart design makes it easy to repaint to fit into any environment. And a long list of accessories, including black casing and various mounting kits, means it can be put up just about anywhere.
