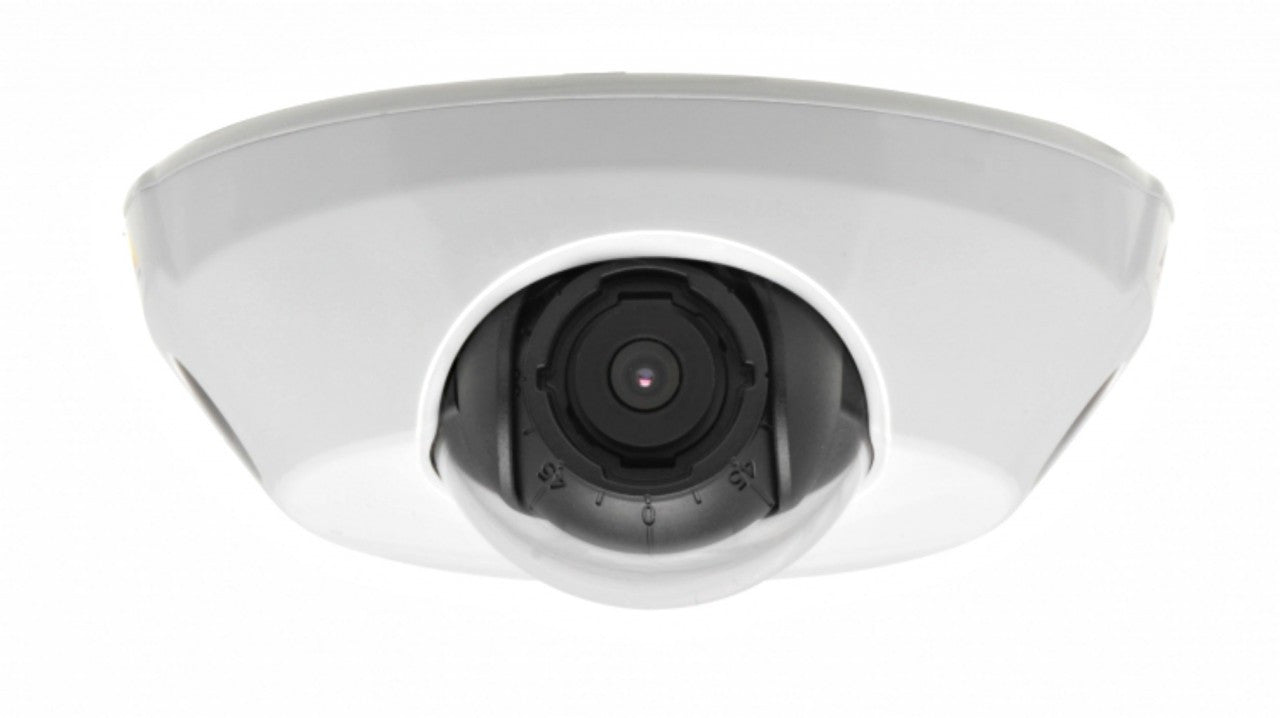

AXIS M3113-R (0330-001) Mobile Network IP Camera

Discontinued, replaced by the M3904-R.

AXIS M3113-R Features

• Resolution: 800x600 to 160x90
• Image Sensor: 1/4" progressive scan RGB CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 1 - 100000 lux, F2.0
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: N.A
• Focal Length: 2.9 mm F2.0
• Zoom: No
• Iris: Fixed
• Focus: No
• Field of View: 66° view
• Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 30 fps in all resolutions
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light, mirroring of images, Rotation: 0°, 90°, 180°, 270°, including Corridor Format, Text and image overlay, privacy mask
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: N/A
• Alarm/Event Management: Video motion detection, active tampering alarm, AXIS Camera Application Platform, Intelligent video, File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; video recording to edge storage; pre- and post-alarm video buffering
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS** encryption, IEEE 802.1X network access control**, digest authentication, user access log
• Users: N/A
• On-board Storage: No
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66-, IP67- and NEMA 4X-rated, IK08 impact-resistant aluminum and polycarbonate casing; dehumidifying membrane; captive screws; not designed for mounting outside a vehicle
• Dimensions: 109mm (W) x 107mm (L) x 36mm (H) (4.3" x 4.2" x 1.9")
• Weight: 250 g (0.55 lb.)
• Operating Temperature: -25 °C to 50 °C (-13 °F to 122 °F)
• Operating Humidity: Humidity 15 - 100% RH (condensing)
• Power: Power over Ethernet IEEE 802.3af Class 1, max. 3.2 W
• Warranty: 3 Years
• What's Included: Lens tool, top cover tool, drill hole template, mounting adapters, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license

AXIS M3113-R Overview

The AXIS M3113-R (0330-001) network camera is designed for use on public transit vehicles such as buses and trains. Equipped to deal with the significant levels of vibration and the environmental challenges that characterize these environments, the camera is also provided with technology that ensures that the image is always clear. The camera also supports industry standard security technology and network bandwidth management. This camera is durable and suitable for use on public transit vehicles where professional surveillance is needed.
The AXIS M3113-R network camera is provided with support for SVGA. The camera captures images via progressive scan technology, ensuring crisp motion capture and excellent image quality. The AXIS M3113-R network camera is also provided with the ability to compensate for fast changes in lighting conditions. This ensures that the image is sharp in situations where doors may be opening and closing and other scenarios where the levels may change drastically in a very short time. The camera supports HTTPS encryption, as well as Quality of Service (QoS), which helps to regulate the camera’s bandwidth usage on the network.
The AXIS M3113-R network camera is easy to install and is designed for use in difficult locations. The camera lens can be adjusted to accommodate any viewing angle. The camera also accepts Power over Ethernet (PoE) technology. This allows the camera to be powered in any location where it can be hooked up to an Ethernet connection.
