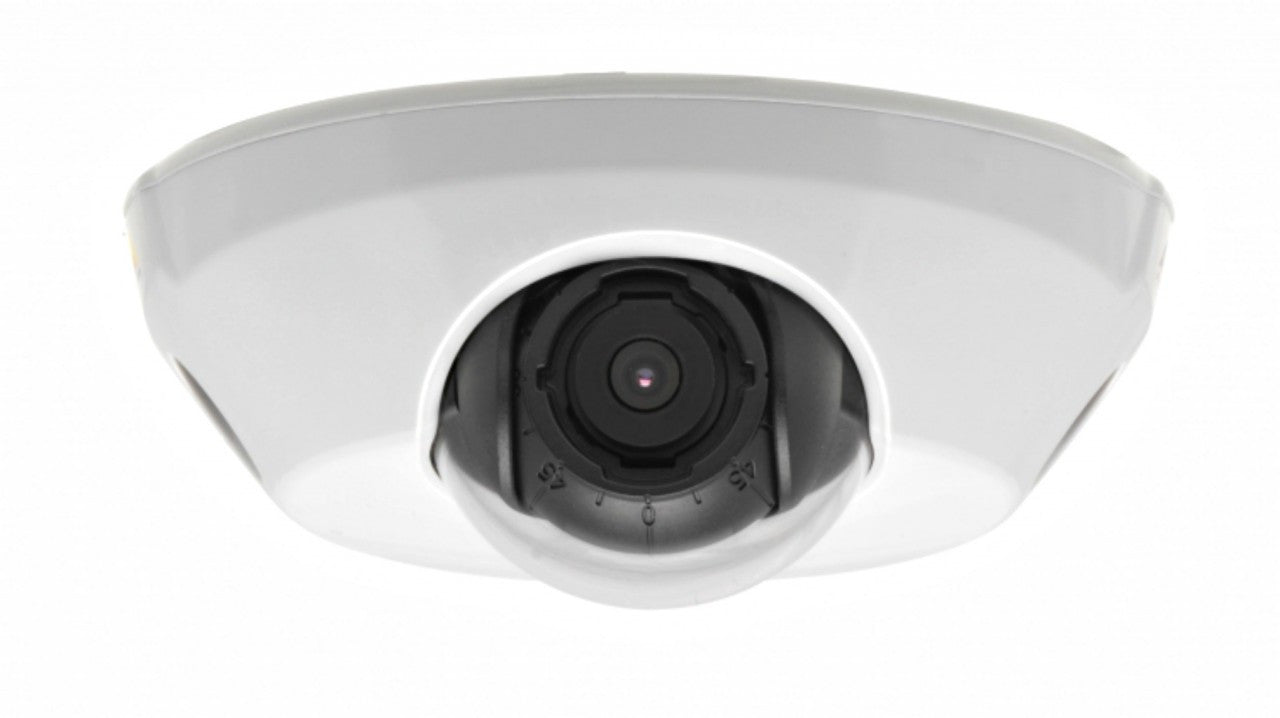

AXIS M3114-R (0448-001) 720P M12 2mm Mobile Network IP Camera

Discontinued, replaced by the P3905-R M12.

AXIS M3114-R M12 Features

• Resolution: 1280x800 to 160x90
• Image Sensor: 1/4" progressive scan RGB CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 1 - 100000 lux, F3.0
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: N.A
• Focal Length: 1.97mm / F2.0
• Zoom: No
• Iris: Fixed
• Focus: No
• Field of View: 105° view
• Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 30 fps in all resolutions
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light, mirroring of images, Rotation: 0°, 90°, 180°, 270°, including Corridor Format, Text and image overlay, privacy mask
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: N/A
• Alarm/Event Management: Video motion detection, active tampering alarm, AXIS Camera Application Platform, Intelligent video, File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; video recording to edge storage; pre- and post-alarm video buffering
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS** encryption, IEEE 802.1X network access control**, digest authentication, user access log
• Users: N/A
• On-board Storage: No
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66-, IP67- and NEMA 4X-rated, IK08 impact-resistant aluminum and polycarbonate casing; dehumidifying membrane; captive screws; not designed for mounting outside a vehicle
• Dimensions: 109mm (W) x 107mm (L) x 36mm (H) (4.3" x 4.2" x 1.9")
• Weight: 250 g (0.55 lb.)
• Operating Temperature: -25 °C to 50 °C (-13 °F to 122 °F)
• Operating Humidity: Humidity 15 - 100% RH (condensing)
• Power: Power over Ethernet IEEE 802.3af Class 1, max. 3.2 W
• Warranty: 3 Years
• What's Included: Lens tool, top cover tool, drill hole template, mounting adapters, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
• Please Note: This model comes with a Rugged, female, D-coded M12 connector with rotatable coupling nut instead of an RJ-45 connector; all connectors support Power over Ethernet.

AXIS M3114-R M12 Overview

AXIS M3114-R Network Camera is specially designed for mobile video surveillance in buses, trains, subway cars and emergency vehicles. The camera has protection against dust and water, and can withstand tough conditions such as vibrations, shocks, bumps and temperature fluctuations. The active tampering alarm can detect tampering attempts such as blocking or spray-painting. AXIS M3114-R has support for HDTV 720p streaming at full frame rate. The camera is specially adapted to respond quickly to changes in light levels, ensuring that high image quality is maintained. The use of progressive scan also produces clearer images of moving objects. The pixel counter helps verify that the pixel resolution of an object or face meets regulatory or specific customer requirements. The standard AXIS M3114-R Network Camera with an 80° angle of view is available with rugged RJ-45 or M12 network connectors. The wide-angle AXIS M3114-R M12 2 mm, with an M12 network connector and a 105° angle of view, can cover both the door and aisle of a train with only one camera. When using the supported Axis' Corridor Format, the camera provides deeper, vertical coverage of aisles. The camera is designed for quick and reliable installation. The desired field of view and a leveled image can be easily achieved by using the supplied lens tool to direct and rotate the ball that holds the lens and image sensor. Power over Ethernet support further simplifies installation since only one cable is needed for carrying power and video.
