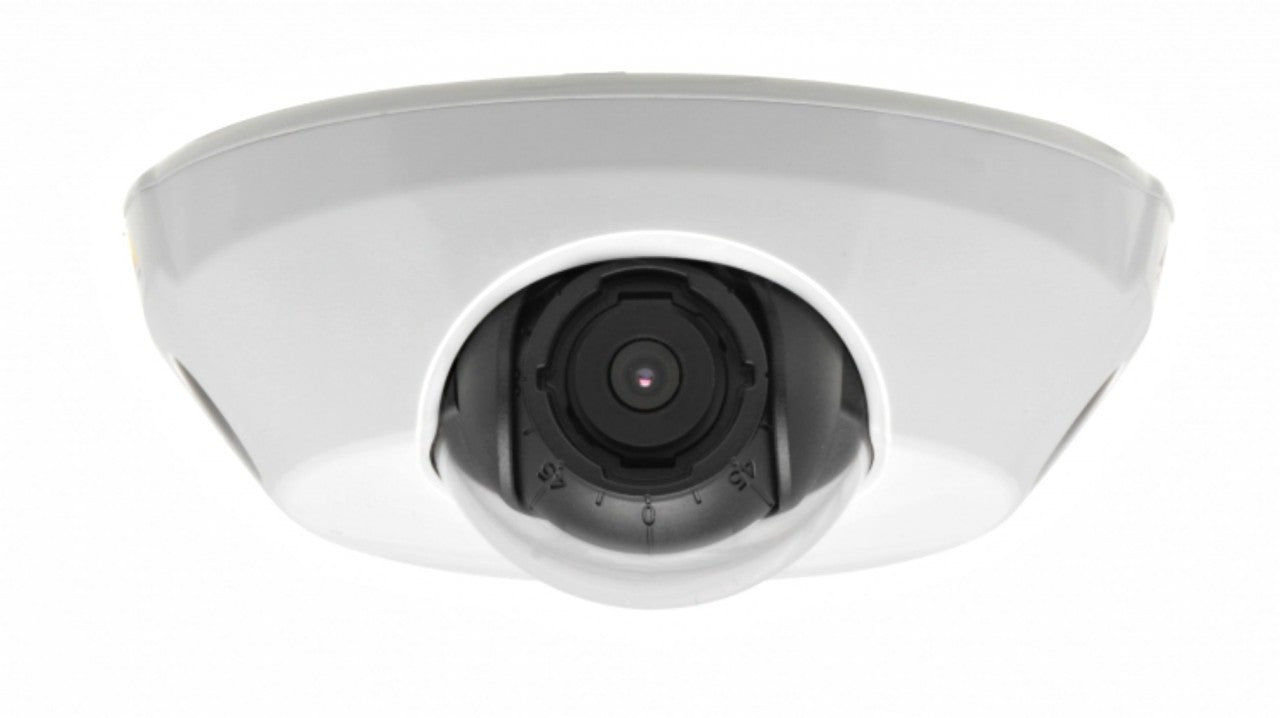

AXIS M3114-VE (0413-001) Ultra-Discreet HDTV Outdoor Fixed Dome PoE Vandal Resistant Network Camera
Right View
Left View
AXIS M3114-VE (0413-001) Ultra-Discreet HDTV Outdoor Fixed Dome PoE Vandal Resistant Network Camera
With Cap
Dimensions
AXIS M3114-VE (0413-001) Ultra-Discreet HDTV Outdoor Fixed Dome PoE Vandal Resistant Network Camera

AXIS

AXIS M3114-VE (0413-001) Ultra-Discreet HDTV Outdoor Fixed Dome PoE Vandal Resistant Network Camera

Sale price$549.00
Discontinued
SKU: M3114-VE (0413-001)

Replaced by: M3024-LVE or M3025-VE (0535-001 or 0536-002)

DISCONTINUED.

AXIS M3114-VE Features

  • Resolution: 1280x800* to 160x90 (1440x900 (1.3 MP) scaled resolution available via VAPIX®)
  • Image Sensor: 1/4" progressive scan RGB CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 1 - 100000 lux, F3.0
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: N/A
  • Focal Length: 2.9 mm F2.0
  • Zoom: No
  • Iris: Fixed
  • Focus: No
  • Field of View: 80° view
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: 30 fps in all resolutions
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light, mirroring of images, Rotation: 0°, 90°, 180°, 270°, including Corridor Format, Text and image overlay, privacy mask
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Video motion detection, active tampering alarm, AXIS Camera Application Platform, Intelligent video, File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; video recording to edge storage; pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS** encryption, IEEE 802.1X network access control**, digest authentication, user access log
  • Users: N/A
  • On-board Storage: No
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66-, IP67- and NEMA 4X-rated, IK08 impact-resistant aluminum and polycarbonate casing; dehumidifying membrane; captive screws
  • Dimensions: 109mm (W) x 107mm (L) x 36mm (H) (4.3" x 4.2" x 1.9")
  • Weight: 250 g (0.55 lb.)
  • Operating Temperature: -25 °C to 50 °C (-13 °F to 122 °F)
  • Operating Humidity: 15 - 100% RH (condensing)
  • Power: Power over Ethernet IEEE 802.3af Class 1, max. 3.2 W
  • Warranty: 3 Years
  • What's Included: Lens tool, top cover tool, drill hole template, mounting adapters, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
  • Note: The M3314-VE comes in two models the (0413-001) comes with the weather shield & (0442-001) does not include the weather shield. The M3114-VE (0450-001) comes with a 2mm Lens.

AXIS M3114-VE Overview

Designed for placement near building entrances to strengthen security, the palm-sized AXIS M3114-VE Network Camera is a cost-effective, ultra-discreet fixed dome for monitoring outdoor entrance areas of stores, restaurants, hotels, banks and offices. The camera is vandal-resistant and can detect tampering attempts such as blocking or spray-painting. The camera can operate in temperatures from 50°C (122°F) down to -20°C (-4°F). The UV-resistant casing comes with a weather shield for protection from sunlight, rain and snow. Models without the weather shield, which provide a greater tilt range, are suitable for semi-outdoor, ceiling-mount installations where the shield is not required, such as in a cold storage room or under a porch. Naturally they can be used indoors as well. AXIS M3114-VE Nocap 2 mm offers a 105° angle of view, compared to 80° for the standard model. Outdoors, the wide-angle camera can cover several parking spaces in a wide carport. Indoors in a retail store, an AXIS M3114-VE Nocap 2 mm placed in a corner can capture the full view and even look into the shelves on both walls. When using the supported Axis' Corridor Format, the camera provides deeper vertical coverage for example of a store aisle. AXIS M3114-VE has support for 1 megapixel/HDTV video streaming at full frame rate. The use of progressive scan produces clearer images of moving objects. The pixel counter helps verify that the pixel resolution of an object or face meets regulatory or specific customer requirements. The camera is designed for quick installation. The desired field of view and a leveled image can be easily achieved by using the supplied lens tool to direct and rotate the ball that holds the lens and image sensor. Power over Ethernet support further simplifies installation since only one cable is needed for carrying power and video.
