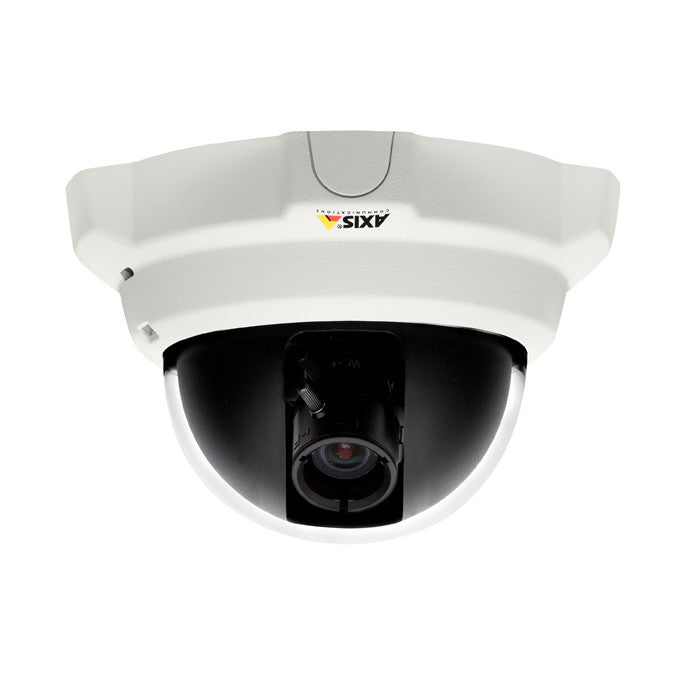

AXIS M3203-V (0345-001) Vandal Resistant Dome Network IP Camera

Discontinued.

AXIS M3203-V Features

• Resolution: 800x600 to 160x90
• Image Sensor: 1/4” progressive scan RGB CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 0.9 - 100000 lux, F1.7
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Varifocal
• Focal Length: 2.8 - 10 mm F1.7
• Zoom: N/A
• Iris: Fixed
• Focus: N/A
• Field of View: 66° - 18° view
• Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 30 fps in all resolutions
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, mirroring of images, Rotation – including Corridor Format, Text and image overlay, privacy mask
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: N/A
• Alarm/Event Management: Video motion detection, active tampering alarm, Support for AXIS Camera Application Platform enabling, installation of additional applications, Intelligent video, File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; video recording to edge storage; pre- and post-alarm video buffering
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS** encryption, digest authentication, user access log
• Users: N/A
• On-board Storage: No
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: 1000 kg (2200 lb.) Impact-resistant metal casing
• Dimensions: 94 x 144 x 132 mm (3.7'' x 5.7'' x 5.2'')
• Weight: 580 g (1.3 lb.)
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Operating Humidity: Humidity 15 - 85% RH (non-condensing)
• Power: Power over Ethernet IEEE 802.3af Class 2 (max. 4.2 W)
• Warranty: 3 Years
• What's Included: Installation Guide, Installation and Management Software CD, key for tamper-proof screws, Windows decoder 1-user license
• Notes: N/A

The AXIS M3203-V (0345-001) fixed dome network camera is a professional grade indoor surveillance camera. Ideal for use in high-security areas such as banks and retail establishments, this camera is discreet, resistant to tampering attempts and has various options for customizing the look of the device. The AXIS M3203-V fixed dome network camera streams in multiple formats and provides very high resolution images. The camera is also provided with features that make installation a very easy affair.
The AXIS M3203-V fixed dome network camera records at SVGA resolution. Progressive scan technology ensures that the images captured are crisp, even when the objects or people are moving. The camera is also capable of transmitting two simultaneous streams, each optimized for bandwidth consumption. The AXIS M3203-V fixed dome network camera can use the Motion JPEG and H.264 formats. H.264 can be altered to reduce bandwidth usage when there isn’t a great deal of action in front of the camera. The camera detects attempts to spray paint the lens, to block the camera’s field of view and the camera’s housing is very resistant to physical vandalism.
The AXIS M3203-V fixed dome network camera is easy to install. It can be provided with a smoked cover so that it blends into the environment more effectively. The camera is also provided with support for Power over Ethernet (PoE), which allows the AXIS M3203-V fixed dome network camera to receive its power directly from its network connection.
