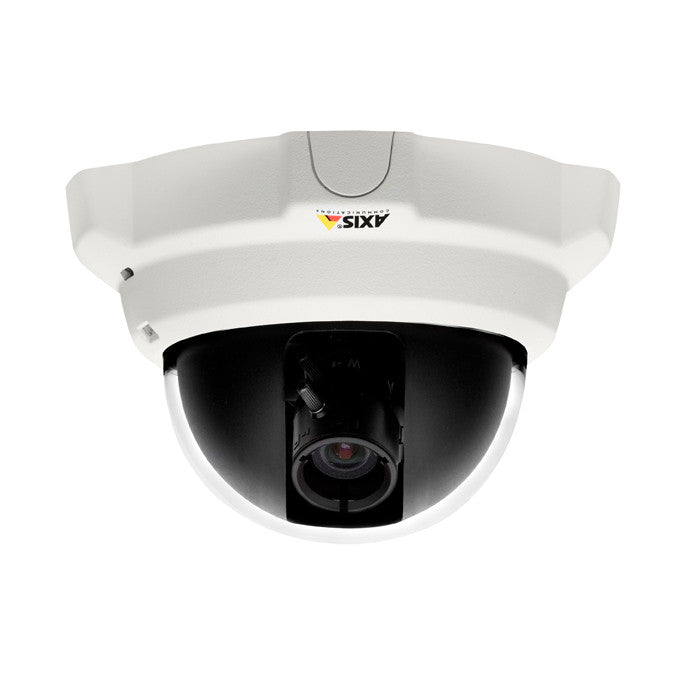

AXIS M3204 (0337-001) HDTV Dome Network IP Camera
AXIS M3204 (0337-001) HDTV Dome Network IP Camera
AXIS M3204 (0337-001) HDTV Dome Network IP Camera


AXIS M3204 (0337-001) HDTV Dome Network IP Camera

Sale price$499.00
SKU: M3204 (0337-001)

Replaced by: AXIS P3214-V AXIS NETWORK DOME (0612-001)


AXIS M3204 Features

  • Resolution: 1280x800 to 160x90*
  • Image Sensor: 1/4” progressive scan RGB CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.9 - 100000 lux, F1.7
  • IR Illuminators: Yes
  • IR Illuminator Range: N/A
  • Lens Type: Varifocal
  • Focal Length: 2.8 - 10 mm F1.7
  • Zoom: N/A
  • Iris: Fixed
  • Focus: N/A
  • Field of View: 80° - 22°
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: 30 fps in all resolutions
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, mirroring of images, Rotation – including Corridor Format, Text and image overlay, privacy mask
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Video motion detection, active tampering alarm, Support for AXIS Camera Application Platform enabling, installation of additional applications, Intelligent video, File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; video recording to edge storage; pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS** encryption, digest authentication, user access log
  • Users: N/A
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: Tamper-resistant plastic casing
  • Dimensions: 94 x 144 x 132 mm (3.7'' x 5.7'' x 5.2'')
  • Weight: 430 g (1.0 lb.)
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Operating Humidity: Humidity 15 - 85% RH (non-condensing)
  • Power: Power over Ethernet IEEE 802.3af Class 2 (max. 4.2 W)
  • Warranty: 3 Years
  • What's Included: Installation Guide, Installation and Management Software CD, key for tamper-proof screws, Windows decoder 1-user license
  • Notes: N/A

Axis M3204 Overview

The AXIS M3204 (0337-001) fixed dome network camera is designed to provide advanced monitoring. Equipped with features that allow the network bandwidth usage of the camera to be optimized, the AXIS M3204 fixed dome network camera delivers high quality images without flooding the network with traffic. The camera is also intelligent, being able to detect attempts to vandalize or otherwise tamper with the device. This camera supports network encryption and the creation of custom applications for the device.
The AXIS M3204 fixed dome network camera is provided with a progressive scan sensor. This ensures that motion capture is crisp. The camera delivers a full megapixel of image quality. Streaming to HDTV 720p standards, the AXIS M3204 fixed dome network camera provides quality images of any scene. The camera can transmit two streams simultaneously in the Motion JPEG or H.264 formats. The network usage can be reduced for bandwidth concerns or when there is no significant action in front of the camera. These features are protected by the camera’s technology.
Attempts to spray paint or otherwise block the AXIS M3204 fixed dome network camera serve as event triggers. The camera is compact, and is suited for use in areas such as retail shops and hotel lobbies. This camera is capable of detecting motion. The AXIS M3204 fixed dome network camera can be powered by its network connection. This eliminates the need to install electrical hook-ups for the device.
