AXIS

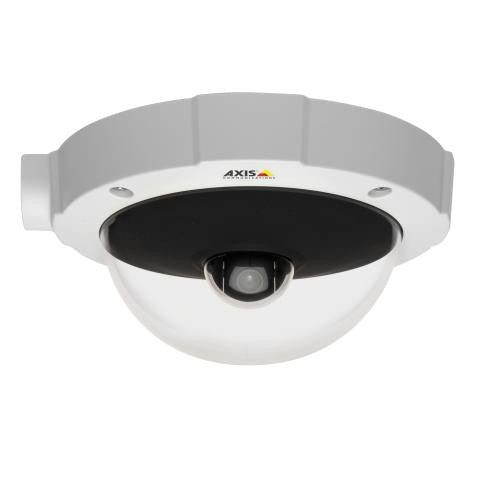

AXIS M5013-V (0552-001) Mini PTZ Dome Network Camera
Replaced by: AXIS M5054 or M5065 (01079-001)
Discontinued, replaced by the M5014-V or the M5054.
AXIS M5013-V Features
- Resolution: SVGA 800x600 to 320x180
- Image Sensor: 1/4” progressive scan RGB CMOS
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: 1.4 lux, F1.8
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: F1.8
- Focal Length: 3.6 mm
- Zoom: 3x digital
- Iris: N/A
- Focus: Auto
- Field of View: 45° horizontal angle of view
- Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: 25/30 fps in all resolutions
- Image Settings: Manual shutter time, compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, rotation, backlight compensation, fine tuning of behavior at low light, text overlay
- Privacy Mask: No
- Built-in Microphone: Yes
- Audio Capabilities: One-way Audio Streaming
- Alarm/Event Management: Video motion detection, audio detection, AXIS Camera Application Platform, PTZ preset, memory card full, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, Go to PTZ preset, Video and audio recording to edge storage, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control, digest authentication, user access log
- Users: N/A
- On-board Storage: Yes, MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: IP66-rated and IK10 impact-resistant plastic casing, clear dome
- Dimensions: d = 210mm (8.3"); h = 104mm (4.1")
- Weight: 940 g (2.1 lb.)
- Operating Temperature: 0 ºC to 40 ºC (32 ºF to 104 ºF)
- Operating Humidity: 10 - 85% RH (non-condensing)
- Power: Power over Ethernet IEEE 802.3af Class 3
- Warranty: One Year
- What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
AXIS M5013-V Overview
AXIS M5013-V PTZ Dome Network Camera offers ±180° pan, 90° tilt and 3x digital zoom. It is affordably priced for remote monitoring of indoor areas such as schools, train stations and warehouses. AXIS M5013-V provides full frame rate video in SVGA 800x600 resolution. It can send multiple H.264 and Motion JPEG video streams simultaneously. It’s perfect for installations above a window or entrance under the eaves overlooking the exterior of a building, ensuring no intruders access the area without the knowledge of the owner.AXIS M5013-V is also ideal under ceilings at airports and other semi outdoors places where there is a risk for vandalism. With an IP66 rating, the camera is protected against the ingress of dust and high pressure water jets from any direction. The camera is also IK10-rated for protection against impact and vandal acts. AXIS M5013-V is designed for quick and easy installation on hard ceilings. The network cable may be routed in three different ways: routing the cable through a conduit; wrapping the cable around a designated cable track; routing the cable through the ceiling. The camera is powered with Power over Ethernet (PoE) using a PoE switch or midspan, which eliminates the need for power cables and reduces installation cost.
