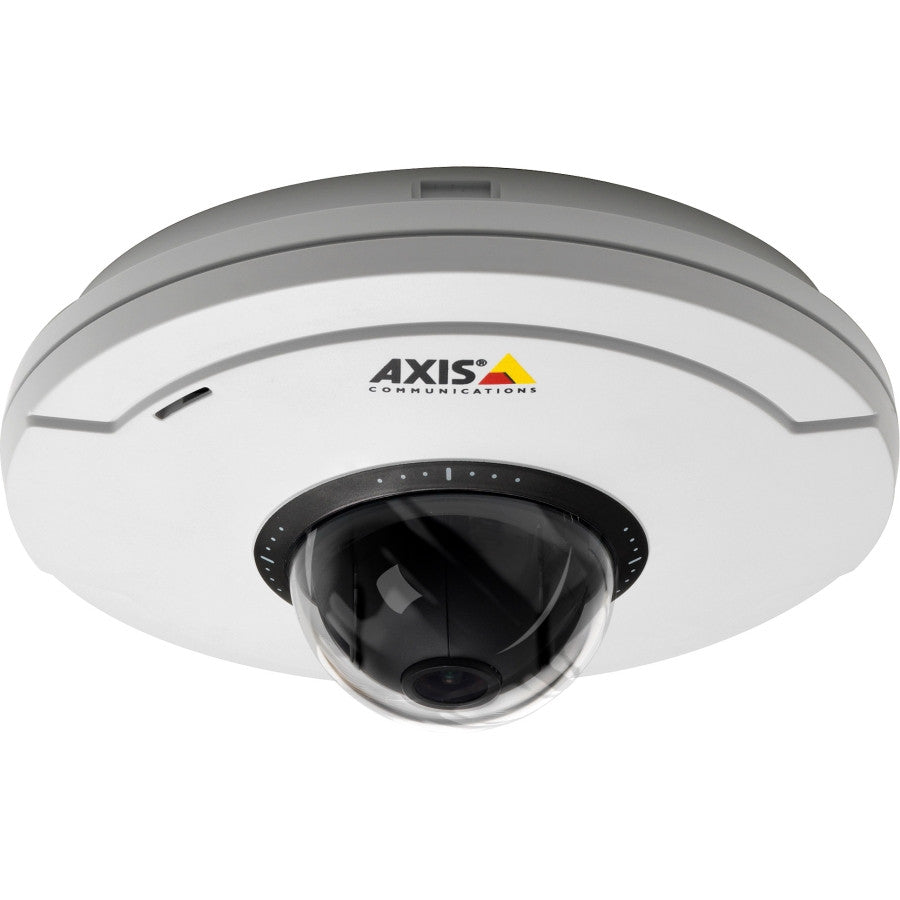

AXIS M5014 (0399-001) Mini PTZ Dome Network IP Camera
AXIS M5014 (0399-001) Mini PTZ Dome Network IP Camera
AXIS M5014 (0399-001) Mini PTZ Dome Network IP Camera


AXIS M5014 (0399-001) Mini PTZ Dome Network IP Camera

Sale price$599.00
SKU: M5014 (0399-001)

Replaced by: AXIS M5054 or M5065 (01079-001)

AXIS M5014 Features

  • Resolution: HDTV 720p 1280x720 to 320x180
  • Image Sensor: 1/4” progressive scan RGB CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: N/A
  • Minimum Illumination: 1.4 lux, F1.8
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal
  • Focal Length: 3.6 mm, F1.8
  • Zoom: 3x digital
  • Iris: N/A
  • Focus: N/A
  • Field of View: 60° horizontal angle of view
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: 30fps in all resolutions
  • Image Settings: Manual shutter time, compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, rotation, backlight compensation, fine tuning of behavior at low light, text overlay
  • Privacy Mask: No
  • Built-in Microphone: Yes
  • Audio Capabilities: One-way via built-in microphone only
  • Alarm/Event Management: Video motion detection, audio detection AXIS Camera Application Platform enabling installation of additional applications, Video motion detection, audio detection, AXIS Camera, Application Platform, PTZ preset, memory card full, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Go to PTZ preset, Video and audio recording to edge storage, Pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X network access control*, digest authentication, user access log
  • Users: N/A
  • On-board Storage: Yes, MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP51-rated
  • Dimensions: d = 130mm (5.1"); h = 58mm (2.3")
  • Weight: 330 g (0.7 lb.)
  • Operating Temperature: 0 ºC to 45 ºC (32 ºF to 113 ºF)
  • Operating Humidity: 10 - 85% RH (non-condensing)
  • Power: Power over Ethernet IEEE 802.3af Class 3
  • Warranty: 3 Years
  • What's Included: Drill template, mounting brackets for soft and hard ceilings, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license

AXIS M5014 Overview

The AXIS M5014 (0399-001) is the world’s smallest, ceiling mount dome network camera with pan/tilt/zoom functionality and HDTV performance capabilities. The camera facilitates the ability for security professionals to inconspicuously monitor and observe almost any indoor location. It provides an economical solution for banks, retail outlets, hotels and even office buildings in need of enhanced security functionality and with a need to resourcefully monitor or manage more than a single location simultaneously.
The lustrous and compact AXIS M5014 is little more than 5.1” wide by 2.2” high and affords superior image quality along with 360 degree monitoring capabilities, complete with HDTV 720p resolution. This is a surveillance camera that can fit in the palm of a hand, but those in the security industry shouldn’t be fooled by its size. Not only is the AXIS M5014 specifically engineered to utilize advanced motion detecting capabilities, it also contains a built-in microphone able to detect unusual noises during closed business hours to activate alarm functions to alert security staff.
This miniature surveillance camera is extremely user friendly and can be installed effortlessly on almost any surface. The mini PTZ dome camera is fully capable of monitoring wide areas and is both dust proof and water resistant.
Installation is a breeze given that the cameras operate on Power over Ethernet (PoE IEEE 802.3af) capable of supporting everything from power to video.
