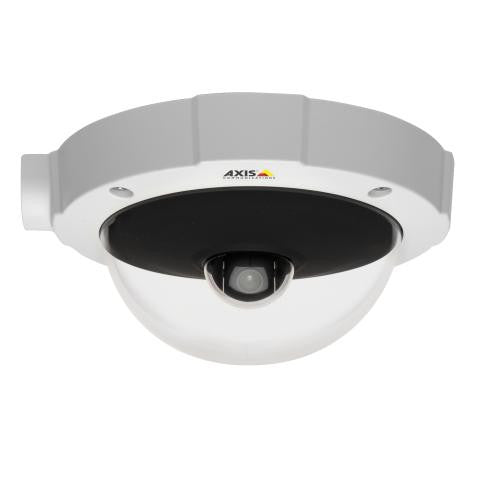

AXIS M5014-V (0553-001) Mini PTZ Dome Network Camera

AXIS M5014-V Features

• Resolution: HDTV 720p 1280x720 to 320x180
• Image Sensor: 1/4” progressive scan RGB CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 1.4 lux, F1.8
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Vari-focal
• Focal Length: 3.6 mm, F1.8
• Zoom: 3x digital
• Iris: N/A
• Focus: Auto
• Field of View: 60° horizontal angle of view
• Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 25/30fps in all resolutions
• Image Settings: Manual shutter time, compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, rotation, backlight compensation, fine tuning of behavior at low light, text overlay
• Privacy Mask: No
• Built-in Microphone: Yes
• Audio Capabilities: Built in Microphone only
• Alarm/Event Management: Video motion detection, audio detection AXIS Camera Application Platform enabling installation of additional applications, Video motion detection, audio detection, AXIS Camera, Application Platform, PTZ preset, memory card full, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Go to PTZ preset, Video and audio recording to edge storage, Pre- and post-alarm video buffering
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X network access control*, digest authentication, user access log
• Users: N/A
• On-board Storage: Yes, MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66-rated and IK10 impact-resistant plastic casing
• Dimensions: d = 210mm (8.3"); h = 104mm (4.1")
• Weight: 940 g (2.1 lb.)
• Operating Temperature: 0 ºC to 40 ºC (32 ºF to 104 ºF)
• Operating Humidity: 10 - 85% RH (non-condensing)
• Power: Power over Ethernet IEEE 802.3af Class 3
• Warranty: 3 Years
• What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1-user license

AXIS M5014-V Overview

AXIS M5014-V PTZ Dome Network Camera offers ±180° pan, 90° tilt and 3x digital zoom. It is affordably priced for remote monitoring of indoor areas such as schools, train stations and warehouses. AXIS M5014-V provides full frame rate video in HDTV 720p resolution. It can send multiple H.264 and Motion JPEG video streams simultaneously. It’s perfect for installations above a window or entrance under the eaves overlooking the exterior of a building, ensuring no intruders access the area without the knowledge of the owner.AXIS M5014-V is also ideal under ceilings at airports and other semi outdoors places where there is a risk for vandalism. With an IP66 rating, the camera is protected against the ingress of dust and high pressure water jets from any direction. The camera is also IK10-rated for protection against impact and vandal acts. AXIS M5014-V is designed for quick and easy installation on hard ceilings. The network cable may be routed in three different ways: routing the cable through a conduit; wrapping the cable around a designated cable track; routing the cable through the ceiling. The camera is powered with Power over Ethernet (PoE) using a PoE switch or midspan, which eliminates the need for power cables and reduces installation cost.
