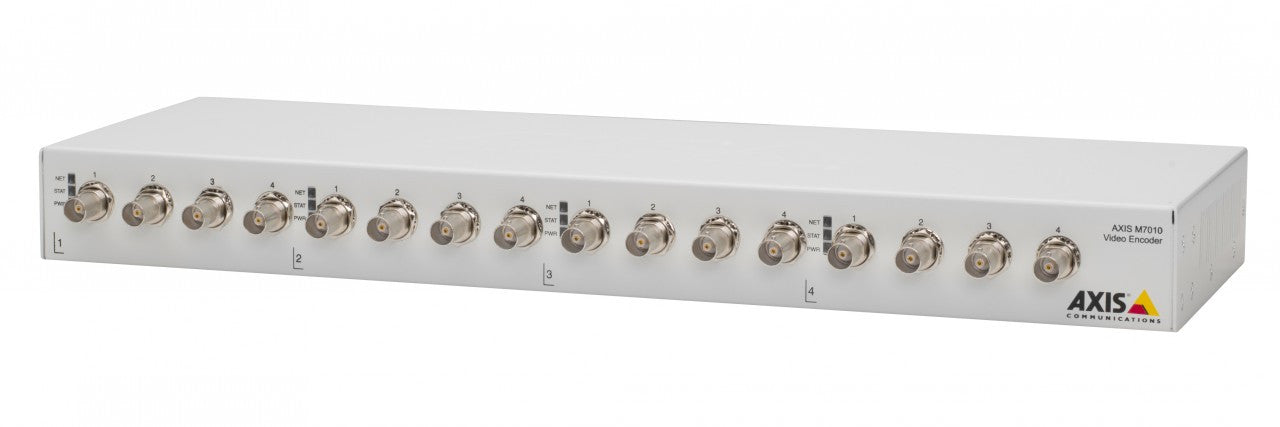

AXIS M7010 (0414-004) Video Encoder
AXIS M7010 (0414-004) Video Encoder
AXIS M7010 (0414-004) Video Encoder diagram
AXIS M7010 (0414-004)

AXIS

AXIS M7010 (0414-004)

$0.00
Discontinued
SKU: M7010 (0414-004)

Replaced by: AXIS M7016 VIDEO ENCODER (0541-004)

Link to Manufacturer's Page

Contact

Discontinued; replaced by the M7016

AXIS M7010 Features

  • Resolution: 176x120 to 720x576,176x120 to 1536x1152 for quad view; 15 fps in all resolutions
  • Channels: 16
  • Video Compression: H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profile Motion JPEG
  • Frame Rate: 30/25 (NTSC/PAL) fps, 15 fps in quad view in full resolution
  • Video Streaming: One individually configured H.264 and one Motion JPEG,stream per channel at 15 fps. More streams if identical or limited in frame rate/resolution,Controllable frame rate and bandwidth, VBR/CBR H.264
  • Image Settings: Compression, color, brightness, contrast; Rotation: 90°, 180°, 270°; Aspect ratio correction, mirroring of images, text and image overlay, privacy mask, enhanced deinterlace filter, video termination, antialiasing, temporal noise filtering
  • Audio Streaming: Two-way
  • Audio input/output: External microphone input or line input (balanced or unbalanced) and line output (unbalanced), Phantom Power
  • Alarm/Event Management: Video motion detection, active tampering alarm, Intelligent video, video loss, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, PTZ preset
  • Pan/Tilt/Zoom: Wide range of analog PTZ cameras supported (drivers available for download at www.axis.com). 100 presets/camera, guard tour, PTZ control queue. Supports Windows compatible joysticks
  • ONVIF: Yes
  • Storage: Four card slots, MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
  • Processing and Memory: 4x ARTPEC-3, 4x 256 MB RAM, 4x 128 MB Flash
  • Security: Password protection, IP address filtering, HTTPS* encryption,IEEE 802.1X* network access control, digest authentication, user access log
  • Connectors: 1 x DC input terminal block; 16 x analog composite video BNC inputs; RJ-45 10BASE-T/100BASE-TX PoE; Terminal block for RS-485/422 (full duplex)
  • Dimensions: 440mm (W) x 31mm (H) x 144mm (L)
  • Weight: 2540 g (5.6 lb.)
  • Operating Temperature: 0 – 50 °C (32 – 122 °F)
  • Operating Humidity: Humidity 20-80% RH (non-condensing)
  • Power: 8-20 V DC, max 28W; 4 x Power over Ethernet, IEEE 802.3af Class 3
  • What's Included: Power supply, mounting and connector kits, Installation Guide, CD with installation and management tools, software and User’s Manual, Windows decoder user licenses
AXIS M7010 Overview

AXIS M70 Video Encoder Series offers high quality video, efficient and affordable integration of analog cameras into a powerful IP-based video surveillance system and is ideal for locations such as gas stations, convenience stores and small offices. AXIS M70 Series comprises two models, ranging from four to 16 channels, providing H.264 and Motion JPEG streams. The support for H.264 offers a video compression format that drastically reduces bandwidth and storage requirements without compromising image quality. AXIS M7010 and AXIS M7014 offer one H.264 and one Motion JPEG stream per channel at 15 fps in all resolutions up to D1 (720x480 NTSC or 720x576 PAL). AXIS M70 Series offers intelligent video capabilities such as video motion detection and active tampering alarm. The video encoders also include microSDHC memory card slots for edge storage. AXIS M70 Series includes support for Power over Ethernet (IEEE 802.3af), which enables the encoders to receive power through the network cable. All Axis video encoder products provide pan, tilt and zoom support, enabling control of analog PTZ cameras.
