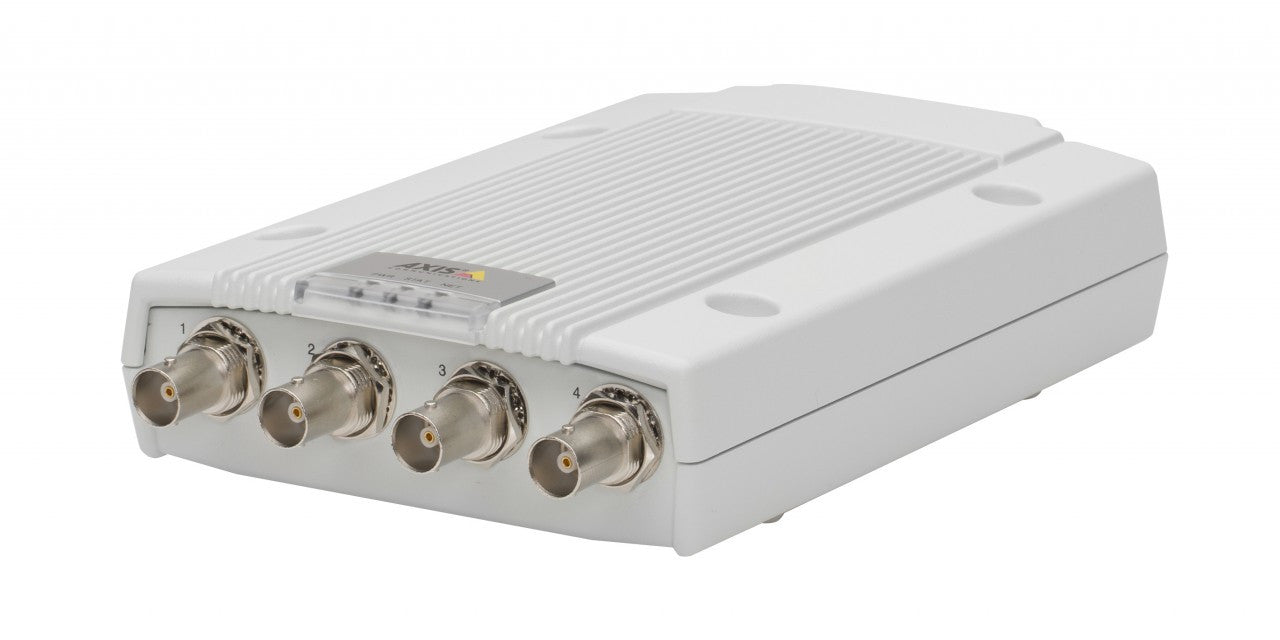

AXIS M7014 (0415-004) Video Encoder

$299.00
Discontinued
SKU: M7014 (0415-004)

Replaced by: AXIS M7104 (01679-001)

Link to Manufacturer's Page

Contact

Replaced by the M7104

AXIS M7014 Video Encoder Features

  • Resolution: 176x120 to 720x576,176x120 to 1536x1152 for quad view
  • Channels: 4
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profile, Motion JPEG
  • Frame Rate: 15 fps in all resolutions
  • Image Settings: Compression, color, brightness, contrast; Rotation: 90°, 180°, 270°; Aspect ratio correction, mirroring of images, text and image overlay, privacy mask, enhanced deinterlace filter, video termination, antialiasing, temporal noise filtering
  • Privacy Mask: Yes
  • Audio Capabilities: N/A
  • Connectors: 4 x analog composite video BNC inputs; RJ-45 10BASE-T/100BASE-TX PoE; Terminal block for RS-485/422 (full duplex
  • Alarm/Event Management: Intelligent video, video loss; File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, PTZ preset
  • Security: Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X* network access control, digest authentication, user access log
  • On-board Storage: Yes, One card slot, MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
  • Processor and Memory: ARTPEC-4, 512 MB RAM, 128 MB Flash
  • Dimensions: 109mm (W) x 37mm (H) x 160mm (L) (4.3" x 1.5" x6.3")
  • Weight: 570 g (1.26 lb.)
  • Operating Temperature: 0 – 50 °C (32 – 122 °F)
  • Operating Humidity: 20 – 80% RH (non-condensing)
  • Power: 8-20 V DC, max 7W; Power over Ethernet IEEE 802.3af Class 3
  • Warranty: 1 Year
  • What's Included: Power supply, mounting and connector kits, Installation Guide, CD with installation and management tools, software and User’s Manual, Windows decoder user licenses

AXIS M7014 Video Encoder Overview

AXIS M7014 Video Encoder is a compact and easy-to-use 4-channel video encoder with good video performance. It can simplify migration to network video without upgrading existing camera systems. AXIS M7014 provides edge storage through a microSDHC memory card slot. It supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes. The video encoder features both RS-422 and RS-485 for controlling analog PTZ cameras. AXIS M7014 is perfect for small and medium analog video installations, especially where an IP network infrastructure is already in place. It is designed for installation close to the cameras. Its size also makes it ideal for use in discreet surveillance applications, for example, in retail stores and banks, and in camera housings. AXIS M7014 is powered over Ethernet using the same cable as for data transmission, which simplifies installation. A power supply is also included in the package. AXIS M7014 can deliver two simultaneous video streams, one in H.264 and another in Motion JPEG, at 15 frames per second in resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). The H.264 video compression format drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is supported for increased flexibility.
