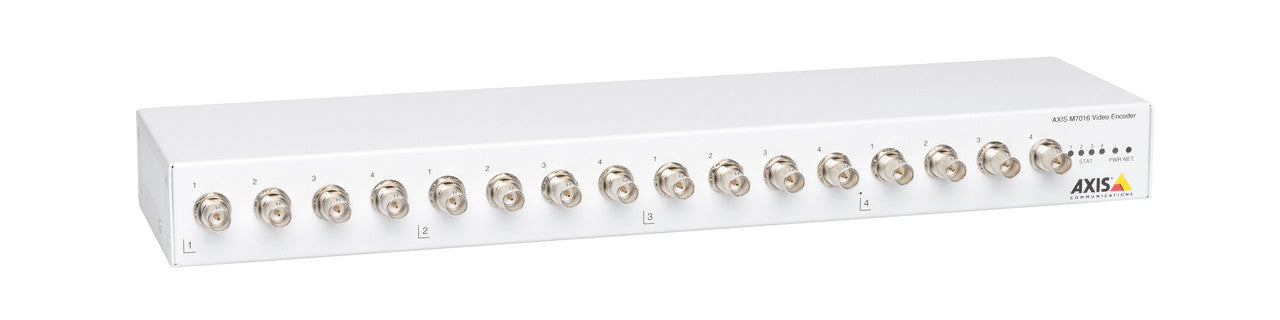

AXIS M7016 (0541-004) 16 Channel Video Encoder

AXIS

AXIS M7016 (0541-004) 16 Channel Video Encoder

Sale price$1,149.00
Discontinued
SKU: M7016 (0541-004)

Replaced by: AXIS M7116 Video Encoder (02036-004)

AXIS M7016 Features

  • Channels: 16
  • Resolution: 176x120 to 720x576, 176x120 to 1536x1152 for quad view
  • Frame Rate: H.264: 30/25 (NTSC/PAL) fps (15 fps in quad view in full resolution); Motion JPEG: 30/25 (NTSC/PAL) fps (15 fps in quad view in full resolution)
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profile, Motion JPEG
  • Image Settings: Compression, Color, Brightness, Contrast, Aspect ratio correction, Mirroring of images, Text and image overlay, Privacy mask, Enhanced deinterlace filter, Video termination, Anti-aliasing, Temporal noise filtering, Rotation: 90°, 180°, 270°
  • Privacy Mask: Yes
  • Audio Capabilities: No
  • Alarm/Event Management: Video motion detection, Active tampering alarm, Intelligent video, Video loss, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Video recording to edge storage, Pre- and post-alarm video buffering, PTZ preset
  • Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log
  • On-board Storage: Yes, four card slots, MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
  • Weight: 1850 g (4.1 lb)
  • Operating Temperature: 0 – 50 °C (32 – 122 °F)
  • Operating Humidity: 20 – 80% RH (non-condensing)
  • Power: AXIS PS-P power supply 12 V DC, 17 W
  • Warranty: 1 year
  • What's Included: Power supply, Mounting and connector kits (incl. 2 mount brackets and 4 rubber feet), Installation Guide, Installation and Management Software CD, Windows decoder user licenses

AXIS M7016 Overview

AXIS M7016 Video Encoder is an easy-to-use 16-channel video encoder with good video performance. It can simplify migration to network video without upgrading existing camera systems. AXIS M7016 provides edge storage through four microSDHC memory card slots. It supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes. The video encoder features both RS-422 and RS-485 for controlling analog PTZ cameras. AXIS M7016 is perfect for large analog video installations, especially where an IP network infrastructure is already in place. It is powered over Ethernet using the same cable as for data transmission, which simplifies installation. A power supply is also included in the package. AXIS M7016 can deliver two simultaneous video streams, one in H.264 and another in Motion JPEG, at 30 frames per second in resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). The H.264 video compression format drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is supported for increased flexibility.
