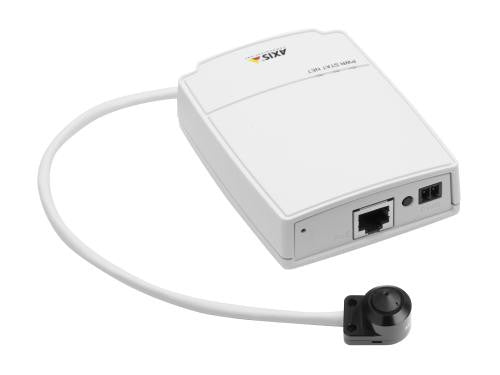

AXIS P1204 (0531-001) Miniature HDTV Pinhole Network Camera
Replaced by: AXIS P1264 (0925-001)
AXIS P1204 (0531-001) Miniature HDTV Pinhole Network Camera Features
- Resolution: 1280x720 to 320x180
- Image Sensor: 1/4” progressive scan RGB CMOS
- Day/Night: NO
- Mechanical IR Cut Filter: NO
- Minimum Illumination: 1.2 - 10000 lux
- IR Illuminators: NO
- IR Illuminator Range: N/A
- Lens Type: 3.7 mm: 57° view*, F2.5, fixed iris, fixed focus
- Zoom: NO
- Iris: Fixed
- Focus: Fixed
- Field of View: N/A
- Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
- Frame Rate: H.264 (25 fps with power line frequency 50 Hz, 30 fps with power line frequency 60 Hz) M-JPEG (25 fps with power line frequency 50 Hz, 30 fps with power line frequency 60 Hz)
- Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation Text and image overlay, mirroring of images Axis’ Corridor Format
- Privacy Mask: YES
- Built-in Microphone: NO
- Audio Capabilities: NO
- Alarm/Event Management: Video motion detection, active tampering alarm AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, external inputs, video loss, File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP External output: video recording to edge storage Pre- and post-alarm video buffering
- ONVIF: YES
- Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control*, digest authentication, user access log
- On-board Storage: MicroSD/MicroSDHC memory card slot (card not included) Support for recording to network share (network-attached storage or file server)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: Main unit-polycarbonate casing, sensor unit-metal casing (aluminum)
- Dimensions: See Pictures
- Weight: Main unit-109 g (0.24 lb.), sensor unit-222 g (0.49 lb.)
- Operating Temperature: -20 ºC to 50 ºC (-4 ºF to 122 ºF)
- Operating Humidity: 10 - 85% RH (non-condensing)
- Power: Power over Ethernet IEEE 802.3af Class 2 (max. 6.49W) 8 – 28 V DC max 4.7 W
- Warranty: 3 Year
- What's Included: Mounting kit, Installation Guide, Axis Warranty Document, AVHS Authentication key, Installation and Management Software CD, Windows decoder 1-user license
AXIS P1204 (0531-001) Miniature HDTV Pinhole Network Camera Overview
The exceptionally discreet, miniatureAXIS P1204 Network Camera, with its functional and small form factor enables easy integration into very limited spaces. AXIS P1204 is ideal for indoor discreet and covert surveillance in stores, architectural buildings, hotels, offices, banks and ATMs. The innovative design concept of AXIS P1204comprises a main unit and a separate sensor unit, enabling it to be mounted up to 8 meters (26ft.) apart. AXIS P1204 can be mounted flat or angled on any surface, using the angled fastening bracket. The camera can also be mounted covertly behind a thin metal sheet in a doorway or an ATM. The camera includes various mounting accessories enabling quick and easy installation. AXIS P1204 Network Camera provides full frame rate HDTV 720p (1280x720 pixels) video in H.264 and Motion JPEG. Power over Ethernet (IEEE 802.3af), eliminaties the need for power cables and reducing installation costs. Intelligent capabilities such as enhanced video motion detection and detection of camera tampering attempts like blocking or spray-painting. Advanced security and network management features such as HTTPS encryption with preserved performance, IPv6 and Quality of Service.
