AXIS

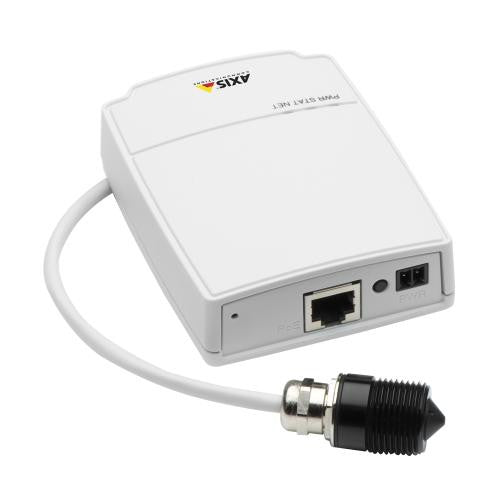

AXIS P1214 (0532-001) Mini HDTV Pinhole Network Camera
Replaced by: No Replacement
AXIS P1214 (0532-001) Miniature HDTV Pinhole Network Camera Features
- Resolution: 1280x720 to 320x180, HDTV 720p
- Image Sensor: 1/4” progressive scan RGB CMOS
- Day/Night: NO
- Mechanical IR Cut Filter: NO
- Minimum Illumination: 1.2 - 10000 lux
- IR Illuminators: NO
- IR Illuminator Range: N/A
- Lens Type: 3.7 mm: 57° view*, F2.5, fixed iris, fixed focus
- Zoom: NO
- Iris: Fixed
- Focus: Fixed
- Field of View: N/A
- Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
- Frame Rate: H.264 (25 fps with power line frequency 50 Hz, 30 fps with power line frequency 60 Hz) M-JPEG (25 fps with power line frequency 50 Hz, 30 fps with power line frequency 60 Hz)
- Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation Text and image overlay, mirroring of images Axis’ Corridor Format
- Privacy Mask: YES
- Built-in Microphone: NO
- Audio Capabilities: NO
- Alarm/Event Management: Video motion detection, active tampering alarm AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, external inputs, video loss, File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP External output: video recording to edge storage Pre- and post-alarm video buffering
- ONVIF: YES
- Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control*, digest authentication, user access log
- On-board Storage: MicroSD/MicroSDHC memory card slot (card not included) Support for recording to network share (network-attached storage or file server)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: Main unit-polycarbonate casing, sensor unit-metal casing (aluminum)
- Dimensions: See Pictures
- Weight: Main unit-109 g (0.24 lb.), sensor unit-238 g (0.52 lb.)
- Operating Temperature: -20 ºC to 50 ºC (-4 ºF to 122 ºF)
- Operating Humidity: 10 - 85% RH (non-condensing)
- Power: Power over Ethernet IEEE 802.3af Class 2 (max. 6.49W) 8 – 28 V DC max 4.7 W
- Warranty: 3 Year
- What's Included: Mounting kit, Installation Guide, Axis Warranty Document, AVHS Authentication key, Installation and Management Software CD, Windows decoder 1-user license,
AXIS P1214 (0532-001) Miniature HDTV Pinhole Network Camera Overview
The unique form factor and small size of the sensor unit, enables flush mounting at places where a concealed application is required.AXIS P1214 is ideal for indoor compact and covert surveillance in stores, architectural buildings, hotels, offices, banks and ATMs. The innovative design concept of AXIS P1214comprises a main unit and a separate sensor unit, enabling it to be mounted up to 8 meters (26ft.) apart. AXIS P1214 can easily be mounted behind any wall, with just a small opening for the lens, or with the whole lens protruding from the wall. The camera include various mounting accessories enabling quick and easy installation. The exceptionally discreet, miniature AXIS P1214Network Camera provides full frame rate HDTV 720p (1280x720 pixels) video in H.264 and Motion JPEG. Power over Ethernet (IEEE 802.3af), eliminating the need for power cables and reducing installation costs. Intelligent capabilities such as enhanced video motion detection and detection of camera tampering attempts like blocking or spray-painting.
