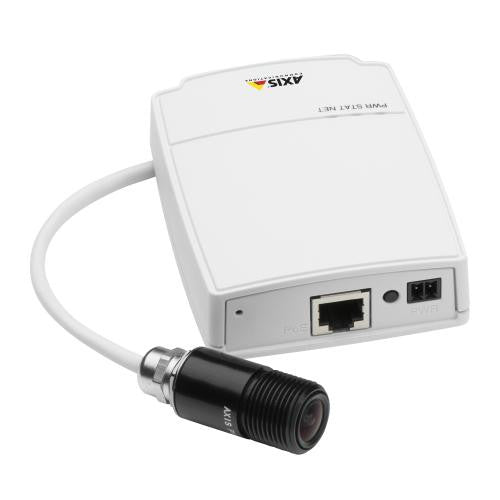

AXIS P1214-E (0533-001) Miniature HDTV Pinhole Network Camera

AXIS

AXIS P1214-E (0533-001) Miniature HDTV Pinhole Network Camera

$579.57
Discontinued
SKU: P1214-E (0533-001)

Replaced by: No Replacement

Link to Manufacturer's Page

Contact

AXIS P1214-E (0533-001) Features

  • Resolution: 1280x720 to 320x180, HDTV 720p
  • Image Sensor: 1/4” progressive scan RGB CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 1.0 - 10000 lux
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: 2.8 mm / F2.0
  • Zoom: No
  • Iris: Fixed
  • Focus: Fixed
  • Field of View: 81° horizontal
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: H.264 (25 fps with power line frequency 50 Hz, 30 fps with power line frequency 60 Hz) M-JPEG (25 fps with power line frequency 50 Hz, 30 fps with power line frequency 60 Hz)
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation Text and image overlay, mirroring of images Axis’ Corridor Format
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: No
  • Alarm/Event Management: Video motion detection, active tampering alarm AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, external inputs, video loss, File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP External output: video recording to edge storage Pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
  • On-board Storage: MicroSD/Micro SDHC memory card slot (card not included) Support for recording to network share (network-attached storage or file server)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Main unit-polycarbonate casing, IP66 Nema 4X-rated metal casing (aluminum)
  • Dimensions: See Pictures
  • Weight: Main unit: 109 g (0.24 lb.), sensor unit: 250 g (0.55 lb.)
  • Operating Temperature: -20 ºC to 50 ºC (-4 ºF to 122 ºF)
  • Operating Humidity: 10 - 100% RH (non-condensing)
  • Power: Power over Ethernet IEEE 802.3af Class 2 (max. 6.49W) 8 – 28 V DC max 4.7 W
  • Warranty: 3 Year
  • What's Included: Mounting kit, Installation Guide, Axis Warranty Document, AVHS Authentication key, Installation and Management Software CD, Windows decoder 1-user license, white sensor housing
AXIS P1214-E (0533-001) Overview
The unique form factor and small size of the sensor unit enables flush mounting at places where a concealed application is required.AXIS P1214-E is ideal for compact and covert surveillance in stores, architectural buildings, hotels, offices, banks and ATMs. The innovative design concept of AXIS P1214-Ecomprises a main unit and a separate sensor unit, enabling it to be mounted up to 8 meters (26ft.) apart. AXIS P1214-E, an IP66-rated model, offers a wide range of mounting options for indoor and outdoor installations. The supplied housing makes the camera suitable for discreet wall or ceiling mount, allowing an overview without being intrusive. AXIS P1214-E Network Camera provides full frame rate HDTV 720p (1280x720 pixels) video in H.264 and Motion JPEG. Power over Ethernet (IEEE 802.3af), eliminating the need for power cables and reducing installation costs. Intelligent capabilities such as enhanced video motion detection and detection of camera tampering attempts like blocking or spray-painting. Advanced security and network management features such as HTTPS encryption with preserved performance, IPv6 and Quality of Service.
