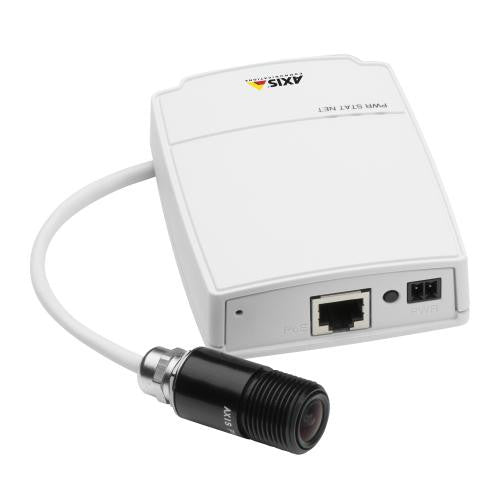

AXIS P1224-E (0654-001) Miniature HDTV Pinhole Network Camera

AXIS

AXIS P1224-E (0654-001) Miniature HDTV Pinhole Network Camera

Sale price$579.57
Discontinued
SKU: P1224-E (0654-001)

Replaced by: No Replacement

Contact

AXIS P1224-E (0654-001) Features

  • Resolution: 1280x720 to 320x180, HDTV 720p
  • Image Sensor: 1/4” progressive scan RGB CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 1.0 - 10000 lux
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: 1.56 mm / F2.8
  • Zoom: No
  • Iris: Fixed
  • Focus: Fixed
  • Field of View: 145° horizontal
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: H.264 (25 fps with power line frequency 50 Hz, 30 fps with power line frequency 60 Hz) M-JPEG (25 fps with power line frequency 50 Hz, 30 fps with power line frequency 60 Hz)
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation Text and image overlay, mirroring of images Axis’ Corridor Format
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: No
  • Alarm/Event Management: Video motion detection, active tampering alarm AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, external inputs, video loss, File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP External output: video recording to edge storage Pre- and post-alarm video buffering
  • ONVIF: YES
  • Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control*, digest authentication, user access log
  • On-board Storage: MicroSD/Micro SDHC memory card slot (card not included) Support for recording to network share (network-attached storage or file server)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Main unit-polycarbonate casing, IP66 Nema 4X-rated metal casing (aluminum)
  • Dimensions: See Pictures
  • Weight: Main unit: 109 g (0.24 lb.), sensor unit: 250 g (0.55 lb.)
  • Operating Temperature: -20 ºC to 50 ºC (-4 ºF to 122 ºF)
  • Operating Humidity: 10 - 100% RH (condensing)
  • Power: Power over Ethernet IEEE 802.3af Class 2 (max. 6.49W) 8 – 28 V DC max 4.7 W
  • Warranty: 3 Year
  • What's Included: Mounting kit, Installation Guide, Axis Warranty Document, AVHS Authentication key, Installation and Management Software CD, Windows decoder 1-user license (sensor housing not included-only included with the P1214-E)
AXIS P1224-E (0654-001) Overview

AXIS P1224-E comprises a tiny HDTV 720p camera with a wide 145° horizontal field of view—ideal for unobtrusive, overview surveillance. The IP66-rated camera can be used indoors or outdoors, flush-mounted in walls, ceilings, elevators, or in limited spaces such as in ATMs (automated teller machines). It is ideal for use in banks, stores, architectural buildings, hotels and offices. AXIS P1224-E consists of two parts: a sensor unit (consisting of the lens and image sensor) with an 8 m (26 ft.) cable, and the main unit (with network, power and input/output connections and a memory card slot). The cable connects the two parts, enabling the sensor unit to be installed discreetly in tight places, and the main unit to be placed elsewhere. AXIS P1224-E comes with a mounting bracket that can be taped or screwed on to the back of a surface for quick and easy flush mount installation. The camera can be powered over Ethernet or by an external power supply.
