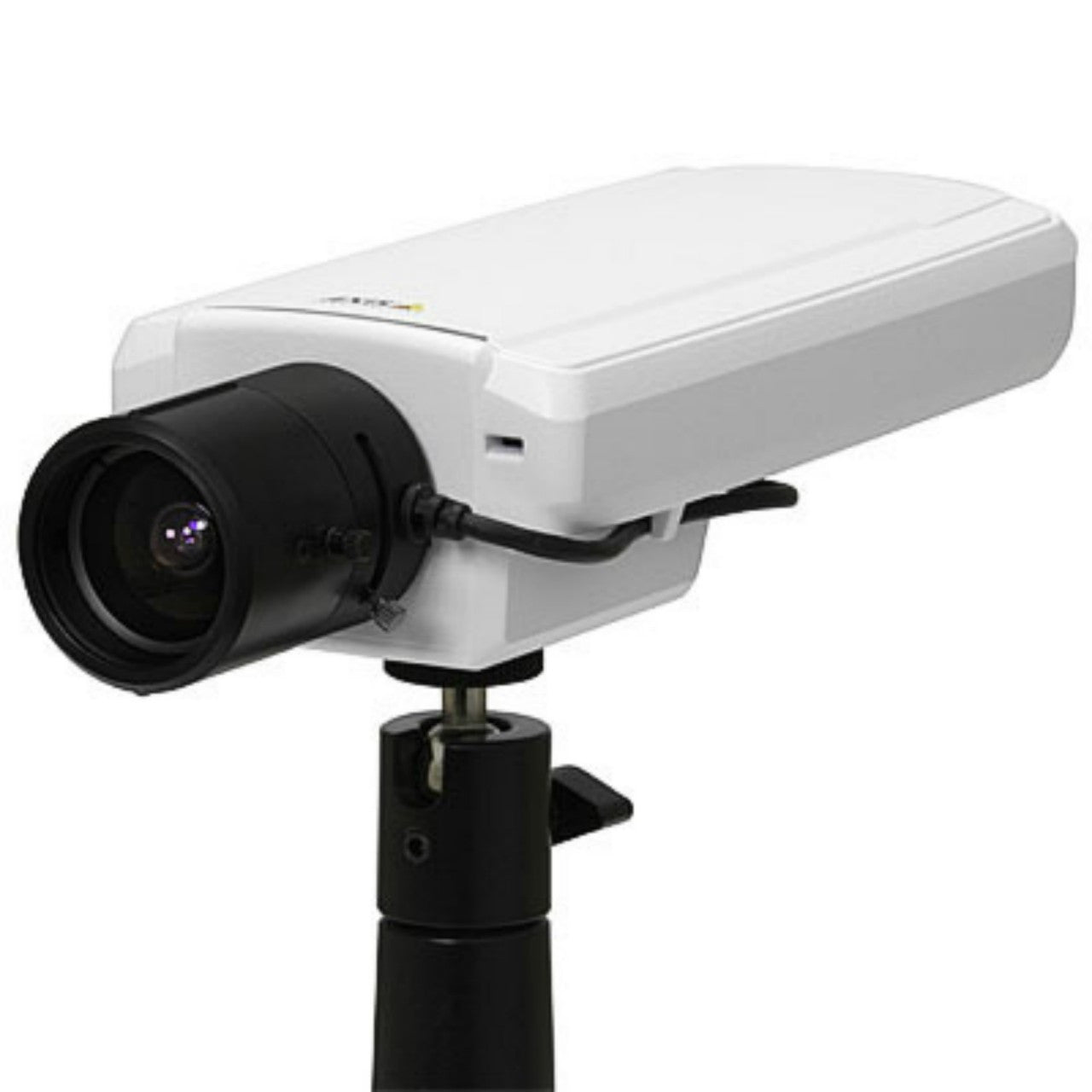

AXIS P1346 (0328-001) HD Megapixel Network IP Camera
AXIS P1346 (0328-001) HD Megapixel Network IP Camera
AXIS P1346 (0328-001) HD Megapixel Network IP Camera
AXIS P1346 (0328-001) HD Megapixel Network IP Camera
AXIS P1346 (0328-001) HD Megapixel Network IP Camera
AXIS P1346 (0328-001) HD Megapixel Network IP Camera
AXIS P1346 (0328-001) HD Megapixel Network IP Camera
AXIS P1346 (0328-001) HD Megapixel Network IP Camera
AXIS P1346 (0328-001) HD Megapixel Network IP Camera


AXIS P1346 (0328-001) HD Megapixel Network IP Camera

Sale price$1,099.00
SKU: P1346 (0328-001)

Replaced by: P1355 or P1357 (0525-001 or 0526-001)



AXIS P1346 Features

  • Resolution: 2048x1536 (3 MP) to 160x90
  • Image Sensor: Progressive scan RGB CMOS 1/3” (effective)
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.5 lux, B/W: 0.08 lux, F1.6
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Varifocal
  • Focal Length: 3.5-10 mm F1.6, P-Iris
  • Zoom: N/A
  • Iris: P-Iris, DC-iris also supported
  • Focus: Remote back focus
  • Field of View: 72° - 27° view
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: 3 MP mode: 20 fps in all resolutions; 2 MP mode: 30 fps in all resolutions
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation, mirroring of images, wide dynamic range - dynamic contrast, Text and image overlay, privacy mask, corridor format
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Two-Way Audio, External microphone input or line input, line output
  • Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, external input, File upload via FTP, HTTP and email; notification via email, HTTP and TCP; external output activation; video and audio recording to edge storage; pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, digest authentication, HTTPS encryption**, IEEE 802.1X network access control**, user access log
  • Users: N/A
  • On-board Storage: Yes, SD/SDHD Card Slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 162mm (W) x 405mm (L) x 142mm (H) (6.4" x 15.9" x 5.6")
  • Weight: 0.6 kg (1.3 lb.)
  • Operating Temperature: 0 ºC to 50 ºC (32 ºF to 122 ºF)
  • Operating Humidity: 20 - 80% RH (noncondensing)
  • Power: 8-20 V DC or Power over Ethernet (PoE) IEEE 802.3af max. 9.6 W, PoE Class 3
  • Warranty: 3 Years
  • What's Included: Stand, connector kit, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license

AXIS P1346 Overview

The Axis P1346 (0328-001) is a top of the range network camera, offering fantastic image quality, advanced focus control and a myriad of useful features. The main feature of the camera is its ability to transport a 1080p 3 megapixel image, a quality so sharp it is rarely seen in the network camera industry.
Of course the streaming of a 1080p picture can be both bandwidth and storage intensive, so the camera also offers means to stream a separate lower quality image best used for remote storage.
The P1346 has P-Iris, a revolutionary imaging system that allows the clearest and crispest pictures from a network surveillance camera. The lens is so designed that the entire picture can appear to be in focus – for example if viewing a long corridor both the nearly objects will be clear, and the end of the corridor will also be in focus. The user can set up separate ‘cropped’ areas of the image, to be able to view different areas at the same time, in perfect focus.
The P1346 also have all of the other features Axis network cameras are renowned for – an easy installation procedure, comprehensive software and network management tools, and powerful security options that ensure that no-one can spy on the stream being sent across your network. It’s also an extremely robust shell, and is designed to be virtually vandal-proof. The software also detects when someone may be trying to compromise the camera, such as using spray paint or a cover.
