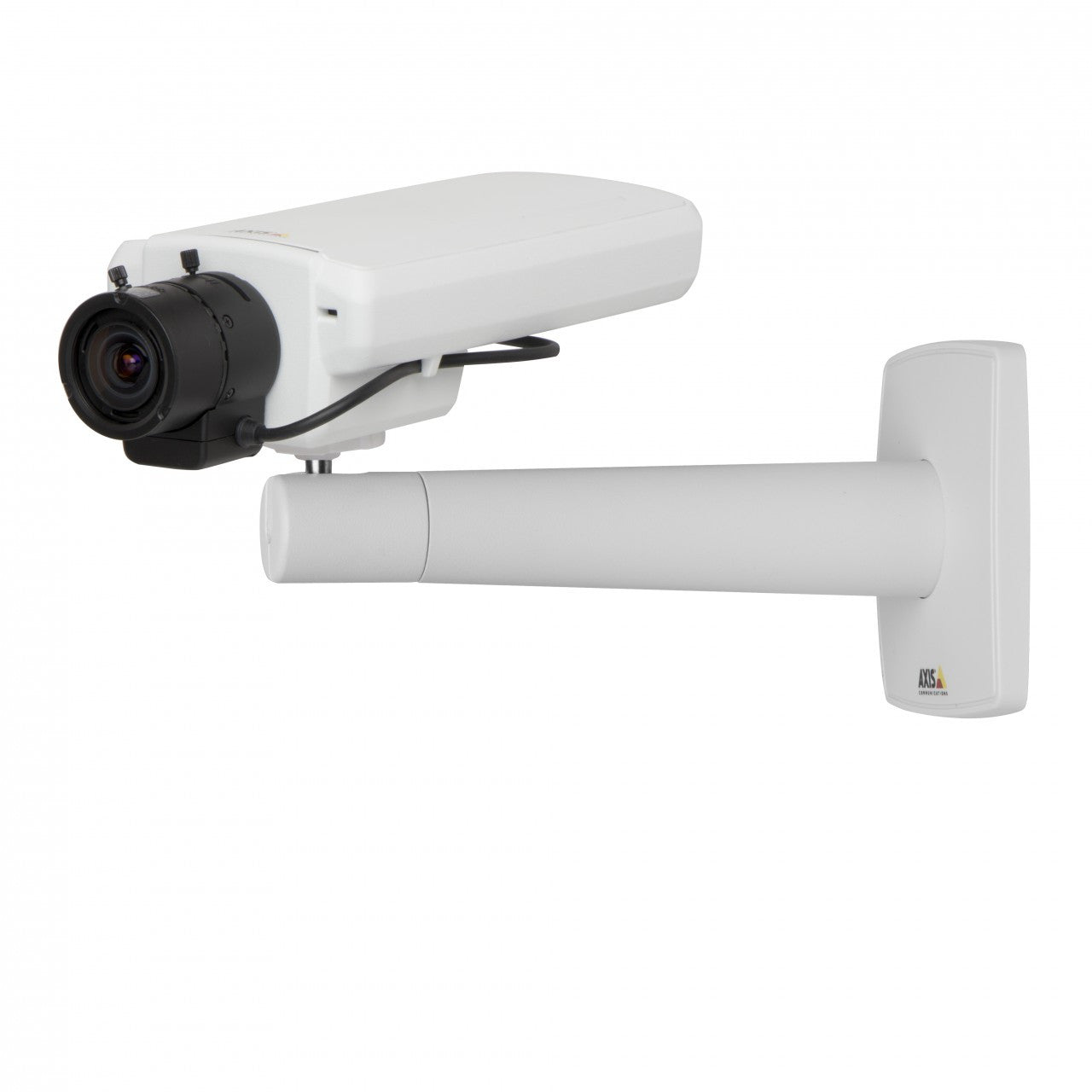

AXIS P1354 (0524-001) Network Camera
Back of camera
AXIS P1354 (0524-001) Network Camera
AXIS P1354 (0524-001) Network Camera
AXIS P1354 (0524-001) Network Camera


AXIS P1354 (0524-001) Network Camera

Sale price$699.00
SKU: P1354 (0524-001)

Replaced by: AXIS P1364 (0689-001)



AXIS P1354 Features

  • Resolution: 1280x960* (approx. 1.3 MP) to 160x90
  • Image Sensor: Progressive scan RGB CMOS 1/3"
  • Sensor Size: 1/3"
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Automatically removable infrared-cut filter
  • Minimum Illumination: Color: 0.1 lux, F1.2, B/W: 0.02 lux, F1.2
  • IR Illuminators: No
  • IR Illuminator Range: NA
  • Lens Type: IR-corrected, Varifocal
  • Focal Length: 2.8 - 8 mm F1.2
  • Zoom: NA
  • Iris: DC-iris
  • Focus: Manual
  • Field of View: 100° - 34° view
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC), H.264 Baseline and Main Profile, Motion JPEG
  • Frame Rate: 25/30 fps with power line frequency 50/60 Hz
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, WDR - dynamic contrast, text and image overlay, privacy mask, mirroring of images, Rotation: 0°, 90°, 180°, 270° including Corridor Format
  • Privacy Mask: Up to 8 individually cropped out view areas
  • Built-in Microphone: Yes, can be disabled
  • Audio Capabilities: Two-way audio using external microphone, line input, line output
  • Alarm/Event Management: Intelligent video, external input, audio level, time scheduled, edge storage events, File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; pre- and post-alarm video buffering; video and audio recording to edge storage; PTZ preset; guard tour; play audio clip; day/night switching; status LED activation
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption**, IEEE 802.1X network access control**, digest authentication, user access log
  • Users: Multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth
  • On-board Storage: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: NA
  • Dimensions: 225mm H x 193 L x 78 mm W
  • Weight: 0.6 kg (1.3 lb.)
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Operating Humidity: 10 - 85% RH (non-condensing)
  • Power: 8-28 V DC or Power over Ethernet (PoE) IEEE 802.3af
  • Warranty: 3 years
  • What's Included: Connector kit, Installation Guide, Windows decoder 1-user license, Installation and Management Software CD, stand

AXIS P1354 Overview

The AXIS P1354 Network Camera is a fixed day and night camera with superb image quality, delivering excellent H.264 performance in a robust design. Superior video quality is provided with progressive scan in multiple individual H.264 streams, as well as Motion JPEG streams. The focus assistant, remote back focus and pixel counter features simplifies installation. The AXIS P1354 offers high-performing video surveillance in both indoor and outdoor applications. It is perfect for securing locations such as governmental and industrial buildings, retail stores, airports, railway stations, schools and university campuses. The AXIS P1354 integrates Axis' Lightfinder technology. The outstanding light sensitivity, with maintained colors even in very poor lighting conditions, is obtained by a combination of Axis' expertise in image processing, system-on-chip development and selection of the best optical components.
