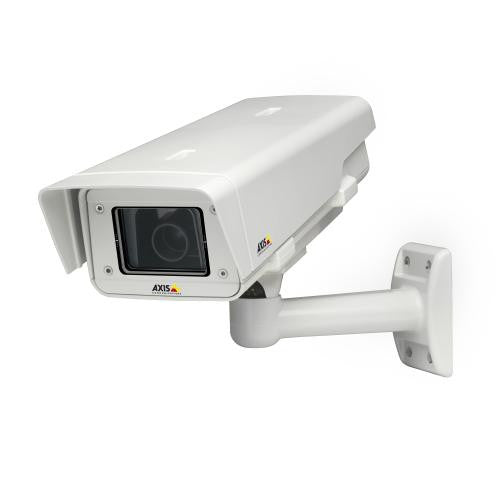

AXIS P1355-E (0529-001) Network Camera

Discontinued, replaced by the P1365-E.

AXIS P1355-E Features

• Resolution: 1920x1080 (HDTV) to 160x90
• Image Sensor: Progressive scan RGB CMOS
• Sensor Size: 1/2.8"
• Day/Night: Yes
• Mechanical IR Cut Filter: Automatically removable infrared-cut filter
• Minimum Illumination: Color: 0.2 lux, F1.2, B/W: 0.04 lux, F1.2
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: IR-corrected, Varifocal
• Focal Length: 2.8 - 8 mm F1.2
• Zoom: N/A
• Iris: P-iris (compatible with DC-iris)
• Focus: Remote Back Focus
• Field of View: 80° - 39° horizontal angle of view
• Compression Styles: H.264 (MPEG-4 Part 10/AVC), H.264 Baseline and Main Profile, Motion JPEG
• Frame Rate: 25/30 fps with power line frequency 50/60 Hz
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, WDR - dynamic contrast, text and image overlay, privacy mask, mirroring of images, Rotation: 0°, 90°, 180°, 270° including Corridor Format
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Two-way, full duplex, External microphone, input or line input, line output
• Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling, installation of additional applications, Intelligent video, external input, audio level, time scheduled, edge storage events, File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; pre- and post-alarm video buffering; video and audio recording to edge storage; PTZ preset; guard tour; play audio clip; day/night switching; status LED activation
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS encryption**, IEEE 802.1X network access control**, digest authentication, user access log
• Users: Multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth
• On-board Storage: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included). Support for recording to network share (network-attached storage or file server)
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: IP66- and NEMA 4X-rated, IK10 impact-resistant aluminum enclosure
• Dimensions: See Dimensions in Pictures
• Weight: 3.1 kg (6.8 lb.)
• Operating Temperature: -30 ºC to 50 ºC (-22 ºF to 122 ºF) with PoE; down to -40 ºC (-40 ºF)
• Operating Humidity: 10 - 100% RH (condensing)
• Power: Power over Ethernet (PoE) IEEE 802.3af max. 12.95 W or High PoE max 25.5 W
• Warranty: 3 years
• What's Included: Connector kit, Installation Guide, Windows decoder 1-user license, Installation and Management Software CD, Wall mount bracket, sunshield

AXIS P1355-E Overview

The outdoor-ready AXIS P1355-E Network Camera is a fixed day and night camera, delivering excellent, light sensitive performance in a robust design. Superb HDTV video quality is provided with progressive scan in multiple individual H.264 streams, as well as Motion JPEG streams. The focus assistant, remote back focus and pixel counter features simplifies installation. The IP66-rated camera is ready right out of the box for mounting outdoors. It has protection against dust, rain, snow and sun, and can operate in temperatures as low as-40 °C (-40 °F). It is perfect for securing locations such as governmental and industrial sites, airports, railway stations, parking lots, school grounds and university campuses. AXIS P1355-E supports the unique precise iris control, P-Iris, which enables higher contrast, clarity, resolution and better depth of field. Support for DC-iris ensures backward compatibility. The multi-view streaming function allows separate video streams of zoomed-in sections, at the same time as a downscaled full overview image.
