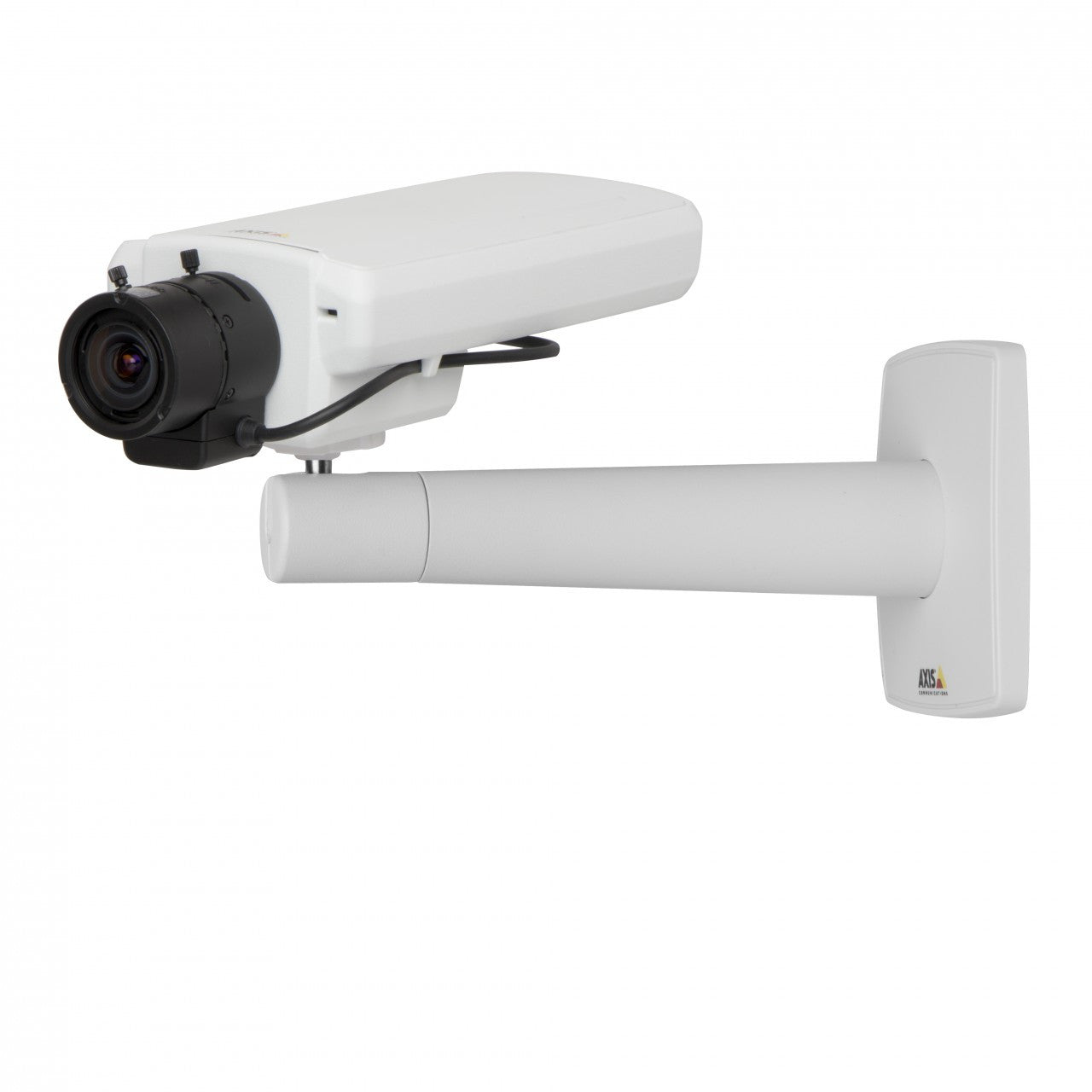

AXIS P1357 (0526-001) Network Camera

Discontinued; replaced by the P1367.

AXIS P1357 Features

• Resolution: 2592x1944 (5 MP) to 160x90
• Image Sensor: Progressive scan RGB CMOS 1/3.2"
• Sensor Size: 1/3.2"
• Day/Night: Yes
• Mechanical IR Cut Filter: Automatically removable infrared-cut filter
• Minimum Illumination: Color: 0.2 lux, F1.2, B/W: 0.04 lux, F1.2
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: IR-corrected, Varifocal
• Focal Length: 2.8 - 8 mm F1.2
• Zoom: NA
• Iris: P-iris (compatible with DC-iris)
• Focus: Focus assistant, Remote Back Focus
• Field of View: 92° - 32° horizontal angle of view
• Compression Styles: H.264 (MPEG-4 Part 10/AVC), H.264 Baseline and Main Profile, Motion JPEG
• Frame Rate: 5 MP capture mode: 12.5/12 fps with power line frequency 50/60 Hz
• Frame Rate: 3 MP capture mode: 16/20 fps with power line frequency 50/60 Hz
• Frame Rate: HDTV 1080p and 2 MP 4:3 (1600x1200) capture mode: 25/30 fps with power line frequency 50/60 Hz
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, WDR - dynamic contrast, text and image overlay, privacy mask, mirroring of images, Rotation: 0°, 90°, 180°, 270° including Corridor Format
• Privacy Mask: Yes
• Built-in Microphone: Yes, can be disabled
• Audio Capabilities: Two-way, full duplex, External microphone, input or line input, line output
• Alarm/Event Management: Intelligent video, external input, audio level, time scheduled, edge storage events, File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; pre- and post-alarm video buffering; video and audio recording to edge storage; PTZ preset; guard tour; play audio clip; day/night switching; status LED activation
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS encryption**, IEEE 802.1X network access control**, digest authentication, user access log
• Users: Multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth
• On-board Storage: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included). Support for recording to network share (network-attached storage or file server)
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: See Dimensions in Pictures
• Weight: 0.6 kg (1.3 lb.)
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Operating Humidity: 10 - 85% RH (non-condensing)
• Power: 8-28 V DC or Power over Ethernet (PoE) IEEE 802.3af max. max. 7.9 W, PoE Class 3
• Warranty: 3 years
• What's Included: Connector kit, Installation Guide, Windows decoder 1-user license, Installation and Management Software CD, Stand

AXIS P1357 Overview

AXIS P1357 Network Camera enables coverage of a large area and extremely high image detail with 5-megapixel resolution or full frame rate HDTV 1080p in H.264 and Motion JPEG. The day/night camera features a P-Iris lens for optimal image clarity, in addition to digital PTZ, multi-view streaming, and easy installation with remote back focus, pixel counter and Power over Ethernet. Two-way audio, audio detection, video motion detection, active tampering alarm and an SD/SDHC slot for optional local storage are also supported. AXIS P1357 is ideal for use in airports, banks, schools and stores. The camera’s revolutionary P-Iris enables automatic and precise control of the iris position to optimize depth of field and lens resolution for optimal image sharpness. DC-iris lenses are also supported for backward compatibility. The day/night functionality allows high image quality to be maintained even in low light conditions. To help minimize bandwidth and storage needs, the camera provides digital pan/tilt/zoom and multi-view streaming, which enables several cropped view areas to be streamed simultaneously. The camera supports multiple, individually configurable video streams in H.264 and Motion JPEG. Once focus is set after manually adjusting the lens, it can be further fine-tuned from a computer using the remote back focus functionality. The pixel counter further helps the installer verify that the pixel resolution of an object fulfills regulatory or customer requirements, for example, for facial identification.
