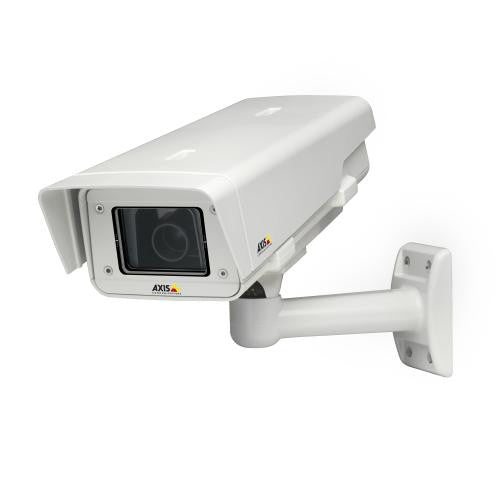

AXIS P1357-E (0530-001) Network Camera

Discontinued; replaced by the P1367-E.

AXIS P1357-E Features

• Resolution: 2592x1944 (5 MP) to 160x90
• Image Sensor: Progressive scan RGB CMOS
• Sensor Size: 1/3.2"
• Day/Night: Yes
• Mechanical IR Cut Filter: Automatically removable infrared-cut filter
• Minimum Illumination: Color: 0.2 lux, F1.2, B/W: 0.04 lux, F1.2
• IR Illuminators: No
• IR Illuminator Range: NA
• Lens Type: IR-corrected, Varifocal
• Focal Length: 2.8 - 8 mm F1.2
• Zoom: NA
• Iris: P-iris (compatible with DC-iris)
• Focus: Focus assistant, Remote Back Focus
• Field of View: 80° - 32° view
• Compression Styles: H.264 (MPEG-4 Part 10/AVC), H.264 Baseline and Main Profile, Motion JPEG
• Frame Rate: 5 MP capture mode: 12.5/12 fps with power line frequency 50/60 Hz
• Frame Rate: 3 MP capture mode: 16/20 fps with power line frequency 50/60 Hz
• Frame Rate: HDTV 1080p and 2 MP 4:3 (1600x1200) capture mode: 25/30 fps with power line frequency 50/60 Hz
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, WDR - dynamic contrast, text and image overlay, privacy mask, mirroring of images, Rotation: 0°, 90°, 180°, 270° including Corridor Format
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Two-way, full duplex, External microphone, input or line input, line output
• Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling, installation of additional applications, intelligent video, external input, audio level, time scheduled, edge storage events, File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; pre- and post-alarm video buffering; video and audio recording to edge storage; PTZ preset; guard tour; play audio clip; day/night switching; status LED activation
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS encryption**, IEEE 802.1X network access control**, digest authentication, user access log
• Users: Multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth
• On-board Storage: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included). Support for recording to network share (network-attached storage or file server)
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66- and NEMA 4X-rated, IK10 impact-resistant aluminum enclosure. Color: white NCS S 1002-B
• Dimensions: See Dimensions in Pictures
• Weight: 3.1 kg (6.8 lb.)
• Operating Temperature: -30 ºC to 50 ºC (-22 ºF to 122 ºF) with PoE; down to -40 ºC (-40 ºF) with High PoE, humidity 10 - 100% RH (condensing)
• Operating Humidity: 10 - 85% RH (non-condensing)
• Power: Power over Ethernet (PoE) IEEE 802.3af max. 12.95 W or High PoE max 25.5 W
• Warranty: 3 years
• What's Included: Connector kit, Installation Guide, Windows decoder 1-user license, Installation and Management Software CD, Wall mount bracket, sunshield

AXIS P1357-E Overview

AXIS P1357-E Network Camera presents a top-of-the-line, 5-megapixel outdoor-ready network camera with HDTV 1080p performance, precise iris control for optimal image clarity and H.264 compression. It is suitable for outdoor use at airports, banks, shops, for city surveillance and any application that requires coverage of a large area or extremely high image detail.The camera’s revolutionary P-Iris enables automatic and precise control of the iris position to optimize depth of field and lens resolution for optimal image sharpness. DC-iris lenses are also supported for backward compatibility. The day/night functionality allows high image quality to be maintained even in low light conditions. The IP66-rated AXIS P1357-E, which comes with a wall mount bracket, sunshield and Ethernet cable, is protected from dust, rain, snow and sun, and can operate in temperatures from-40 °C to 50°C(-40 °F to 122 °F). To help minimize bandwidth and storage needs, the camera provides digital pan/tilt/zoom and multi-view streaming, which enables several cropped view areas to be streamed simultaneously. The camera supports multiple, individually configurable video streams in H.264 and Motion JPEG. Support for Power over Ethernet* makes installation easy. The camera also features remote back focus for fine-tuning the focus from a computer.
