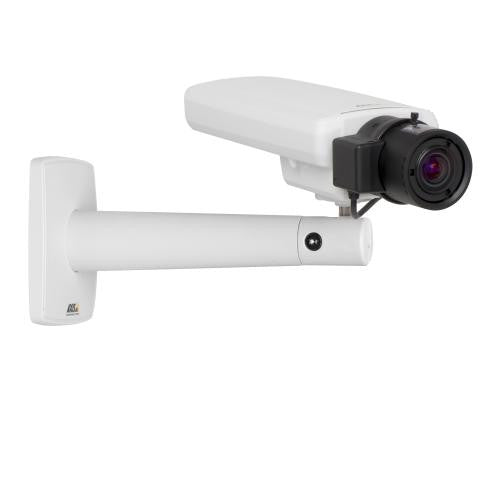

AXIS P1365 (0609-001) 1080p Network Camera
Replaced by: AXIS Q1942-E 19MM 30 FPS (0918-001)
AXIS P1365 Features
- Resolution: 1920x1080 (HDTV) to 160x90
- Image Sensor: 1/2.8" Progressive scan RGB CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Automatically removable infrared-cut filter
- Minimum Illumination: Color: 0.18 lux, B/W: 0.04 lux, F1.3 (HDTV 1080p 50/60 fps: Color 0.36 lux, B/W: 0.08 lux, F1.3)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: IR-corrected, Varifocal
- Focal Length: 2.8 - 8 mm / F1.3
- Zoom: Digital PTZ
- Iris: P-iris (compatible with DC-iris)
- Focus: Remote Back Focus
- Field of View: 120° - 40° horizontal angle of view
- Compression Styles: H.264 (MPEG-4 Part 10/AVC), H.264 Baseline and Main Profile, Motion JPEG
- Frame Rate: 25/30 fps or 50/60 fps (no WDR)
- WDR Technology: Up to 120dB
- Image Settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, WDR-Forensic Capture: Up to 120 dB depending on scene, Fine tuning of behavior at low light, Rotation: 0°, 90°, 180°, 270° including Corridor Format, Text and image overlay, Privacy mask, Mirroring of images
- Privacy Mask: Yes
- Built-in Microphone: Yes, can be disabled
- Audio Capabilities: Two-way, full duplex, External microphone, input or line input, line output
- Alarm/Event Management: Intelligent video, external input, audio level, time scheduled, edge storage events, File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; pre- and post-alarm video buffering; video and audio recording to edge storage; PTZ preset; guard tour; play audio clip; day/night switching; status LED activation
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
- Users: N/A
- On-board Storage: MicroSD/microSDHC/microSDXC slot
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: None
- Dimensions: 205 x 78 x 46 mm (8.1 x 3.1 x 1.8 in)
- Weight: 630 g (1.4 lb.)
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Operating Humidity: 10 - 85% RH (non-condensing)
- Power: 8-28 V DC, max. 7.7 W; Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max. 7.9 W
- Warranty: 3 years
- What's Included: Connector kit, Installation Guide, Windows decoder 1-user license, Installation and Management Software CD, Stand
AXIS P1365 Overview
AXIS P1365 Network Camera delivers excellent HDTV 1080p video at 50/60 frames per second in H.264 and Motion JPEG. The day/night camera features a P-Iris lens for optimal image clarity, in addition to digital PTZ, multi-view streaming, and easy installation with remote back focus, pixel counter and Power over Ethernet. Two-way audio, audio detection, video motion detection, active tampering alarm and a microSD/microSDHC slot for optional local storage are also supported. AXIS P1365 is ideal for use banking installations as well as for city surveillance and critical infrastructure applications. Supporting WDR - Forensic Capture capability, the video is highly optimized for forensic purposes and provides great levels of detail – even in scenes with complex light conditions. Furthermore, AXIS P1365 includes the ability to seamlessly transition between WDR and Lightfinder mode. Axis’ Zipstream technology inherent in AXIS P1365 greatly reduces bandwidth and storage requirements in H.264. AXIS P1365 is delivered with the AXIS T91B21 stand, allowing for discreet cable management.
