AXIS P1428-E (0637-001) Compact 4K Ultra HD Bullet Network Camera
Replaced by: AXIS P1448-LE (01055-001)
AXIS P1428-E Features
- Max Resolution: 3840x2160
- Image Sensor: 1/2.5” progressive scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 1.4 lux at F1.6, B/W: 0.3 lux at F1.6
- IR Illuminators: Yes
- IR Illuminator Range: 15m (50 ft)
- Lens Type: Varifocal
- Focal Length: f=3.3-9.8 mm / F1.6
- Zoom: Digital PTZ, Remote zoom (3-3.5x)
- Iris: P-iris
- Focus: Autofocus & remote focus
- Field of View: Horizontal angle of view: 35˚ – 109˚ view
- Compression Styles: H.264 High, Main and Baseline profiles (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: Up to 25/30 fps (50/60 Hz) in all resolutions
- WDR Technology: Yes
- Image Settings: Manual shutter time, Compression, Color, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Text and image overlay, Rotation: 0°, 90°, 180°, 270°, including Corridor Format, Rotation: 0°, 180°
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: Video motion detection, Support for AXIS Camera Application Platform enabling installation of additional applications, Detectors: Day/Night Mode, Live Stream Accessed Tampering Hardware: Network, Temperature Input Signal: Manual Trigger, Virtual Inputs Storage: Disruption, Recording System: System Ready Time: Use Schedule, Recurrences, File upload via FTP, HTTP and email Notification via email, HTTP and TCP Video recording to edge storage, day/night mode 40 MB Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
- Users: N/A
- On-board Storage: MicroSD slot supporting memory card up to 64 GB (card not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66-and NEMA 4X-rated casing (polyester polycarbonate blend)
- Dimensions: Ø132 mm x 260 mm (5.2" x 10.2")
- Weight: 854 g (1.88 lb)
- Operating Temperature: -30°C to 50°C (-22°F to 122°F)
- Operating Humidity: 10–100% RH (condensing)
- Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 / max 12.9 W
- Warranty: 3 Years
- What's Included: Camera, Mounting bracket, Weather shield, Drill template, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
AXIS P1428-E Overview

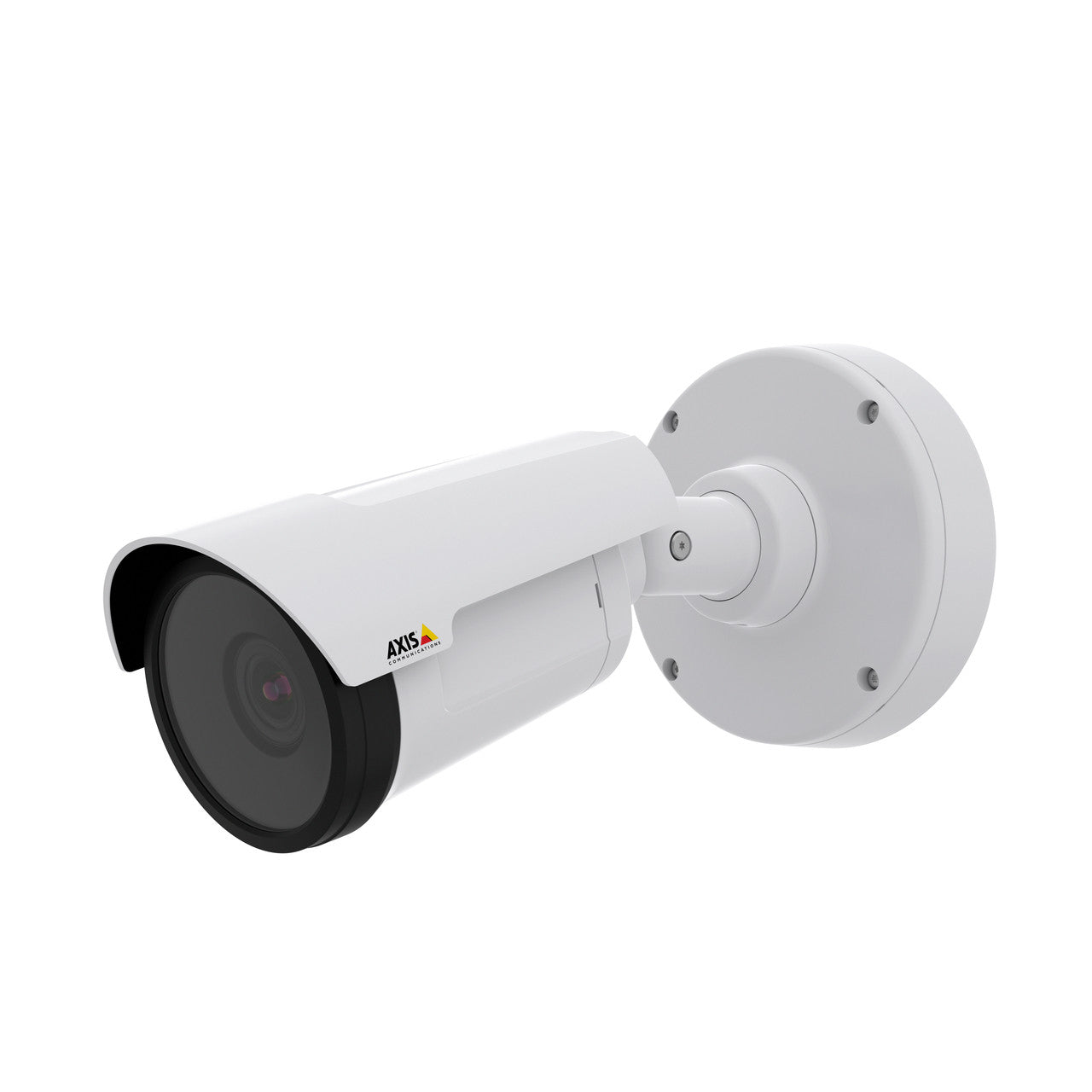

AXIS P1428-E is a compact, outdoor-ready bullet-style camera. This day and night camera is ideal for 24/7 video surveillance, in exposed outdoor areas such as parking lots, service stations and for general indoor surveillance purposes where a compact camera is needed. AXIS P1428-E provides 8.3 MP/4K Ultra HD resolution at 30 frames per second. When using a standard HDTV monitor or a 4K monitor, the high resolution will improve the possibilities to magnify any part of the scene to pull crisp forensic video from large areas. The support for AXIS Digital Autotracking makes it possible to cover large areas with one single camera. The application automatically detects, zooms in on and follows moving objects. This facilitates live monitoring by helping the operator to effectively discover and handle incidents. The P-iris control provides optimal depth of field, resolution, image contrast and clarity. The cost-effective, compactly designed camera offers multiple H.264 and Motion JPEG streams that can be individually optimized for bandwidth and storage efficiency. AXIS P1428-E offers support for edge storage that allows recording video directly to a storage such as a microSD/SDHC card, thereby creating a flexible and reliable video surveillance system. AXIS P1428-E has a compact low weight casing and integrated bracket for wall or ceiling mount. To further simplify installation, a wide range of mounting accessories are available. AXIS P1428-E offers easy installation with remote zoom and focus for fine tuning of the picture from a computer as opposed to at the camera itself. Furthermore, the pixel counter assures that the required pixel resolution is met. Power over Ethernet supplies power to the cameras via the network, which eliminates the need for power cables and reduces installation costs. The input/output port can be used for simple notification to an alarm panel or control of a relay or similar. The input is also ideal, for instance, when using a PIR sensor.
