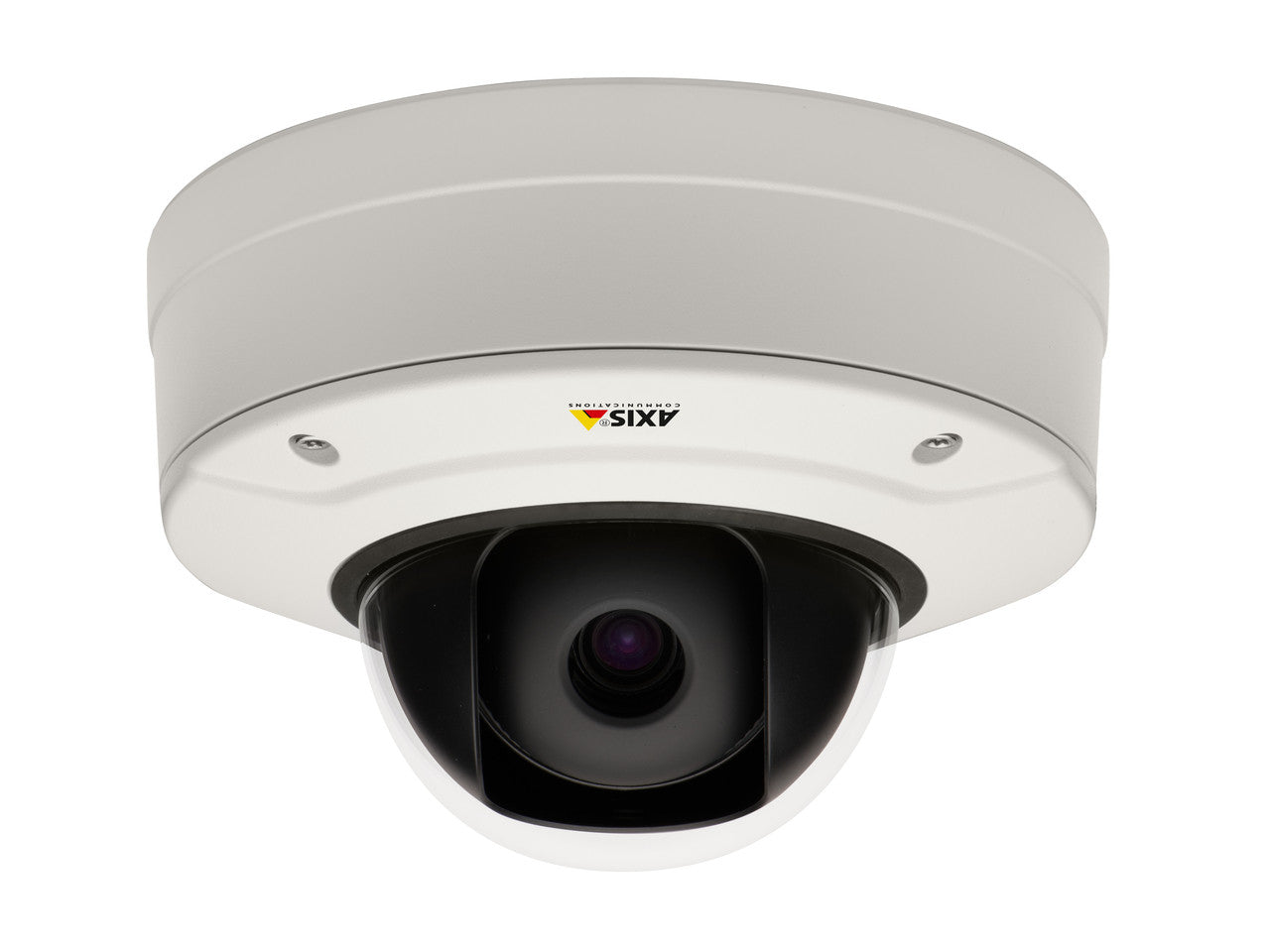

AXIS P3214-VE (0613-001) Outdoor 720p HD Dome Network Camera

AXIS P3214-VE (0613-001) Features

• Resolution: 1280x960 (approx. 1.3 MP) to 160x90
• Image Sensor: 1/2.8" Progressive Scan RGB CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Automatically removable infrared-cut filter
• Minimum Illumination: Color: 0.3 lux, F1.6, B/W: 0.06 lux, F1.6
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Varifocal, P-Iris control
• Focal Length: 2.8-10 mm / F1.6
• Zoom: Remote, Digital PTZ
• Iris: Fixed
• Focus: Remote
• Field of View: 92°-33° view
• Compression Styles: H.264 Main and Baseline Profile (MPEG-4 Part 10/AVC); Motion JPEG
• Frame Rate: 30 fps
• WDR Technology: Yes
• Image Settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at different light levels, WDR - Dynamic Contrast, Text and image overlay, Privacy mask, Mirroring of images, Rotation: 0°, 90°, 180°, 270°, including Corridor Format
• Privacy Mask: No
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Intelligent video, Edge storage events, Overlay text, File upload: FTP, HTTP, HTTPS, network share and email, Notification: email, HTTP, HTTPS, TCP and SNMP trap, Video recording to edge storage, Pre- and post-alarm video buffering, Event data
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
• Users: 1
• On-board Storage: microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weather proof, NEMA 4X-rated, IK10 vandal proof
• Dimensions: 149mm (W) x 104mm (H) (25.8" x 4.1")
• Weight: 790 g (1.7 lb)
• Operating Temperature: -30°C to 50°C (-22°F to 122°F)
• Operating Humidity: 10 - 100% RH
• Power/Comsumption: PoE IEEE 802.3af/802.3at Type 1 Class 3 / max. 8.4 W, typical 3.5 W
• Warranty: 3 Year
• What's Included: Camera, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, Mounting bracket, Cable gasket, Resistorx T20 L-key, Weather shield, Drill hole template

AXIS P3214-VE (0613-001) Overview

AXIS P3214-VE Network Camera is a streamlined, vandal-resistant and outdoor-ready fixed dome with HDTV 720p video quality and up to 1.3 MP resolution. The camera features a varifocal lens, P-Iris control and day/night functionality. The camera has high capacity for video streaming and analytics. It is ideal for outdoor surveillance applications in retail and logistics centers. AXIS P3214-VE is a weather-resistant and IK10 impact-resistant camera that has been designed for effortless and reliable installation. This includes remote zoom and focus to eliminate the need for hands-on fine tuning. AXIS P3214-VE can be mounted flush to a wall, ceiling or on junction boxes, and optional kits are available for recessed mounting or on pendants. Further, the camera supports versatile cable management with optional adapters for connecting to various conduits. The camera casing is easily repaintable in any desired color to blend into the environment.
