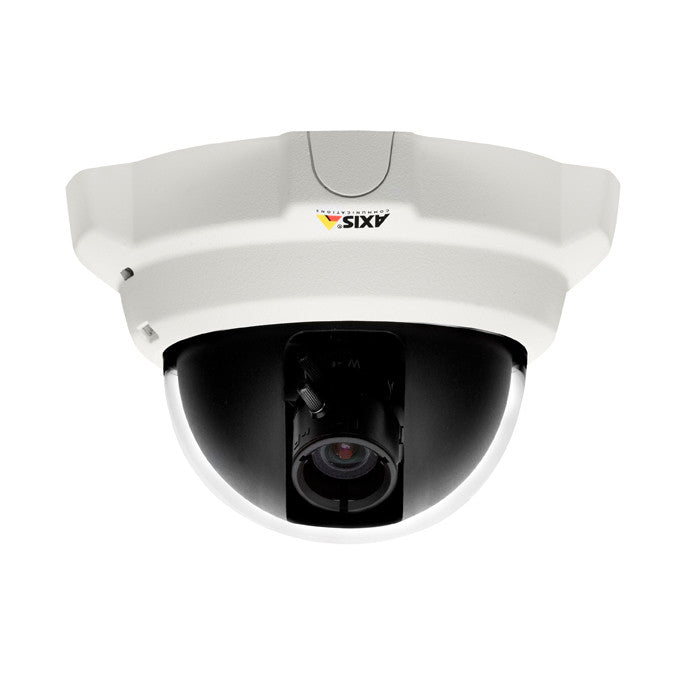

AXIS P3301 (0290-001) Dome Network Camera
AXIS P3301 (0290-001) Dome Network Camera
AXIS P3301 (0290-001) Dome Network Camera


AXIS P3301 (0290-001) Dome Network Camera

Sale price$499.00
SKU: P3301 (0290-001)

Replaced by: AXIS P3214-V/P3364-V NETWORK DOME CAMERA (0612-001/0471-001)

Discontinued, replaced by the P3364-V.

AXIS P3301 Features

  • Resolution: 640x480 to 160x120
  • Image Sensor: 1/4” progressive scan RGB CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 1 lux, F1.3
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Varifocal
  • Focal Length: 2.8 - 10 mm, F1.3
  • Zoom: N/A
  • Iris: DC-Iris
  • Focus: N/A
  • Field of View: 72° - 23° view F1.3
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: 30 fps in all resolutions
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light, mirroring of images, Rotation - including Corridor Format, 3:4 only, Text and image overlay, privacy mask
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Two-way, Built-in microphone, external microphone input or line input, line level output
  • Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications, Intelligent video and external input, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, Video and audio recording to edge storage, External output activation
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS** encryption, IEEE 802.1X network access control, digest authentication, user access log
  • Users: N/A
  • On-board Storage: N/A
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: Tamper-resistant plastic casing
  • Dimensions: 94 x 144 x 132 mm (3.7'' x 5.7'' x 5.2'')
  • Weight: 430 g (1.0 lb.)
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Operating Humidity: Humidity 20 - 80% RH (non-condensing)
  • Power: 4.9 – 5.1 V DC max. 4.7 W, Power over Ethernet IEEE 802.3af Class 2 (max. 4.7 W)
  • Warranty: 3 Years
  • What's Included: Mounting and connector kits, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license (power supply not included)

AXIS P3301 Overview

The AXIS P3301 (0290-001) fixed dome network camera is designed for discreet surveillance. It is suitable for use in high-security environments such as prisons, banks, schools, and airports. This camera provides excellent image quality, network bandwidth management features and tamper resistance. The camera is compact and can be installed without the need for additional power sources. This camera is also ONVIF compatible. The AXIS P3301 fixed dome network camera is designed to stand up to attempts to vandalize the device. It also detects if someone attempts to block the view of the camera physically or if they attempt to spray paint the device. This camera is provided with progressive scan technology that ensures that motion is captured clearly. It can perform in normal or low-light situations. This camera also offers multiple streaming options. The H.264 format and the Motion JPEG format are both available and can be customized to reduce network bandwidth usage when needed. The camera features a wide dynamic range that makes it suitable for surveillance in challenging areas. The AXIS P3301 fixed dome network camera can be provided with a smoked transparent dome that makes it more discreet. Its compact design ensures that it doesn’t dominate the environment in which it’s installed. It also accepts Power over Ethernet, allowing the device to be installed anywhere there is a network connection available without the need to add separate power sources.
