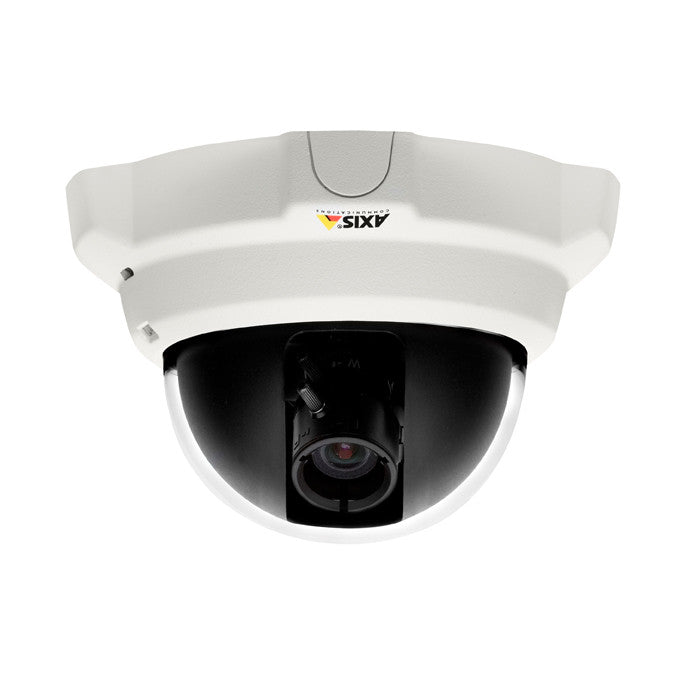

AXIS P3301-V (0292-001) Dome Network Camera

Discontinued, replaced by the P3364-V.

AXIS P3301-V Features

• Resolution: 640x480 to 160x120
• Image Sensor: 1/4” progressive scan RGB CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 1 lux, F1.3
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Varifocal
• Focal Length: 2.8 - 10 mm, F1.3
• Zoom: N/A
• Iris: DC-Iris
• Focus: N/A
• Field of View: 72° - 23° view F1.3
• Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 30 fps in all resolutions
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light, mirroring of images, Rotation - including Corridor Format, 3:4 only, Text and image overlay, privacy mask
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Two-way, Built-in microphone, external microphone input or line input, line level output
• Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications, Intelligent video and external input, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, Video and audio recording to edge storage, External output activation
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS** encryption, IEEE 802.1X network access control, digest authentication, user access log
• Users: N/A
• On-board Storage: N/A
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: 1000 kg (2200 lb.) impact-resistant metal casing
• Dimensions: 94 x 144 x 132 mm (3.7'' x 5.7'' x 5.2'')
• Weight: 580 g (1.3 lb.)
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Operating Humidity: Humidity 20 - 80% RH (non-condensing)
• Power: 4.9 – 5.1 V DC max. 4.7 W, Power over Ethernet IEEE 802.3af Class 2 (max. 4.7 W)
• Warranty: 3 Years
• What's Included: Mounting and connector kits, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license (power supply not included)

AXIS P3301-V Overview

The AXIS P3301-V (0292-001) fixed dome network camera can provide surveillance for locations such as banks, schools, prisons and other high-security environments. This camera is designed to be discreet, featuring a compact design that allows it to blend into environment where it has to be installed in an exposed location. The AXIS P3301-V fixed dome network camera is suitable for any indoor surveillance needs, including those where low-light levels are a concern. Equipped with progressive scan technology, the AXIS P3301-V fixed dome network camera provides excellent image definition, even when objects are moving in low-light conditions. The camera can also send two streams over the network simultaneously. They may be sent in the H.264 format or in Motion JPEG format. The streams can be adjusted individually to accommodate bandwidth constraints. The camera has a wide dynamic range and supports the latest in network management technologies. The AXIS P3301-V fixed dome network camera is very tamper resistant, being enclosed in a tough dome. It is also able to detect motion, audio and to alert the monitor when attempts are made to spray paint or otherwise obscure the lens of the camera. This device supports Power over Ethernet. This allows the camera to receive power from its network connection, which makes the installation of separate power sources unnecessary. This reduces the cost of installation and simplifies the process.
