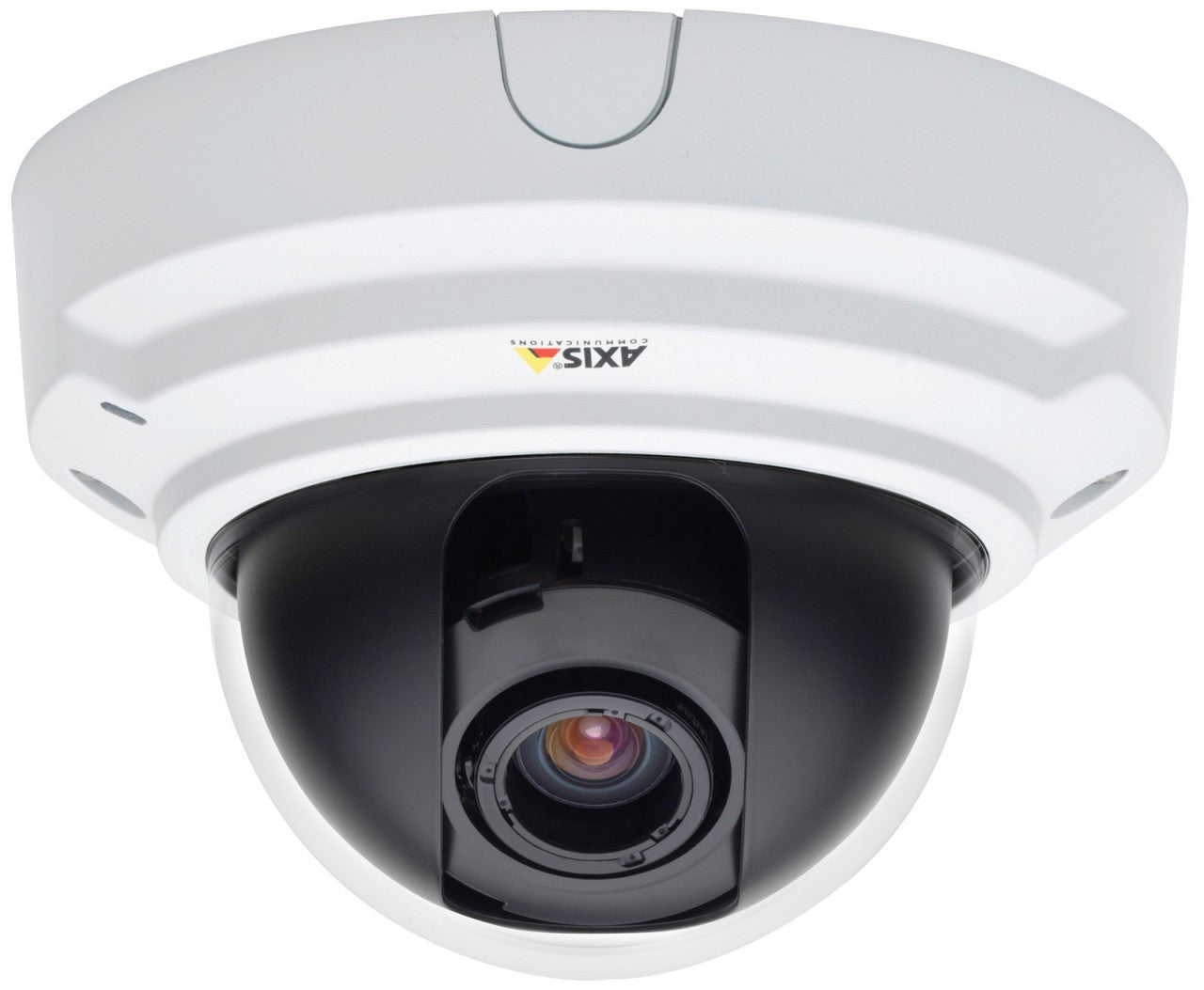

AXIS P3346-V (0370-001) HDTV 1080p Vandal Resistant Fixed Dome Network Camera

Discontinued, replaced by the P3367-V.

AXIS P3346-V Features

• Resolution: 2048x1536 (3 MP) to 160x90
• Image Sensor: Progressive scan RGB CMOS 1/3”
• Day/Night: YES
• Mechanical IR Cut Filter: YES
• Minimum Illumination: Color: 0.5 lux, F1.2, B/W: 0.08 lux, F1.2
• IR Illuminators: NO
• IR Illuminator Range: N/A
• Lens Type: Varifocal, remote focus and zoom, IR corrected, P-Iris control, megapixel resolution
• Focal Length: 3-9 mm
• Zoom: YES
• Focus: Auto
• Field of View: 84° - 30° horizontal angle of view
• Compression Styles: H.264 Baseline and Main Profile (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 3 MP capture mode: 20 fps in all resolutions; HDTV 1080p (1920x1080) and 2 MP 4:3 (1600x1200) capture modes: 30 fps in all resolutions
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, WDR - dynamic contrast, fine tuning of low light behavior Rotation: 0°, 90°, 180°, 270°, including Corridor Format Text and image overlay, mirroring of images
• Privacy Mask: Yes
• Built-in Microphone: NO
• Audio Capabilities: Two -Way, External microphone input or line input, line output
• Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications Intelligent video, external input, edge storage events
• ONVIF: YES
• Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X** network access control, HTTPS** encryption
• On-board Storage: SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included) Support for recording to network share (network-attached storage or file server)
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IK10 impact-resistant casing with aluminum base
• Color: White NCS S 1002-B
• Dimensions: 123 mm x 178 x 178 mm (4.8'' x 7.0'' x 7.0'')
• Weight: 1.7 kg (3.7 lb.)
• Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
• Operating Humidity: 10 - 100% RH (condensing
• Power: Power over Ethernet IEEE 802.3af Class 2; max 6.4 W
• Warranty: 3 Year
• What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1 user license, connector kit, weather shield, mounting bracket, 5 m (16 ft.) network cable with pre-mounted gasket, smoked transparent cover

AXIS P3346-V Overview

The SVGA and HDTV 720p/1MP models of AXIS P33 Series incorporate Axis’ unique Lightfinder technology. The outstanding light sensitivity, with maintained colors even in very poor lighting conditions, is obtained by a combination of Axis’ expertise in image processing, system-on-chip development and selection of the best
optical components. AXIS P33 Series features the advanced precise iris control that comprises a special P-Iris lens, together with dedicated software in the camera, to set the best iris position for optimal depth of field, resolution, image contrast and clarity. Good depth of field implies that objects at different distances from the camera are in focus simultaneously. AXIS P33 Network Cameras offer unique installation capabilities including remote focus and zoom. The remote focus feature enables convenient focusing over the network, eliminating the need for hands-on finetuning at the camera. The remote zoom functionality ensures that the camera’s angle of view is optimized for the area to be monitored. The pixel counter assures that the required pixel resolution is met. The built-in IR solution in AXIS P3364-LV automatically adapts the illumination angle with the zoom level, which simplifies installation. AXIS P33 Series offers a wide range of optional kits for indoor installations, for example, for mounting on a wall, pole or corner. The IP51-rated drop ceiling mount kit protects the camera from condensation and dust that may exist in the plenum space above the drop ceiling.
