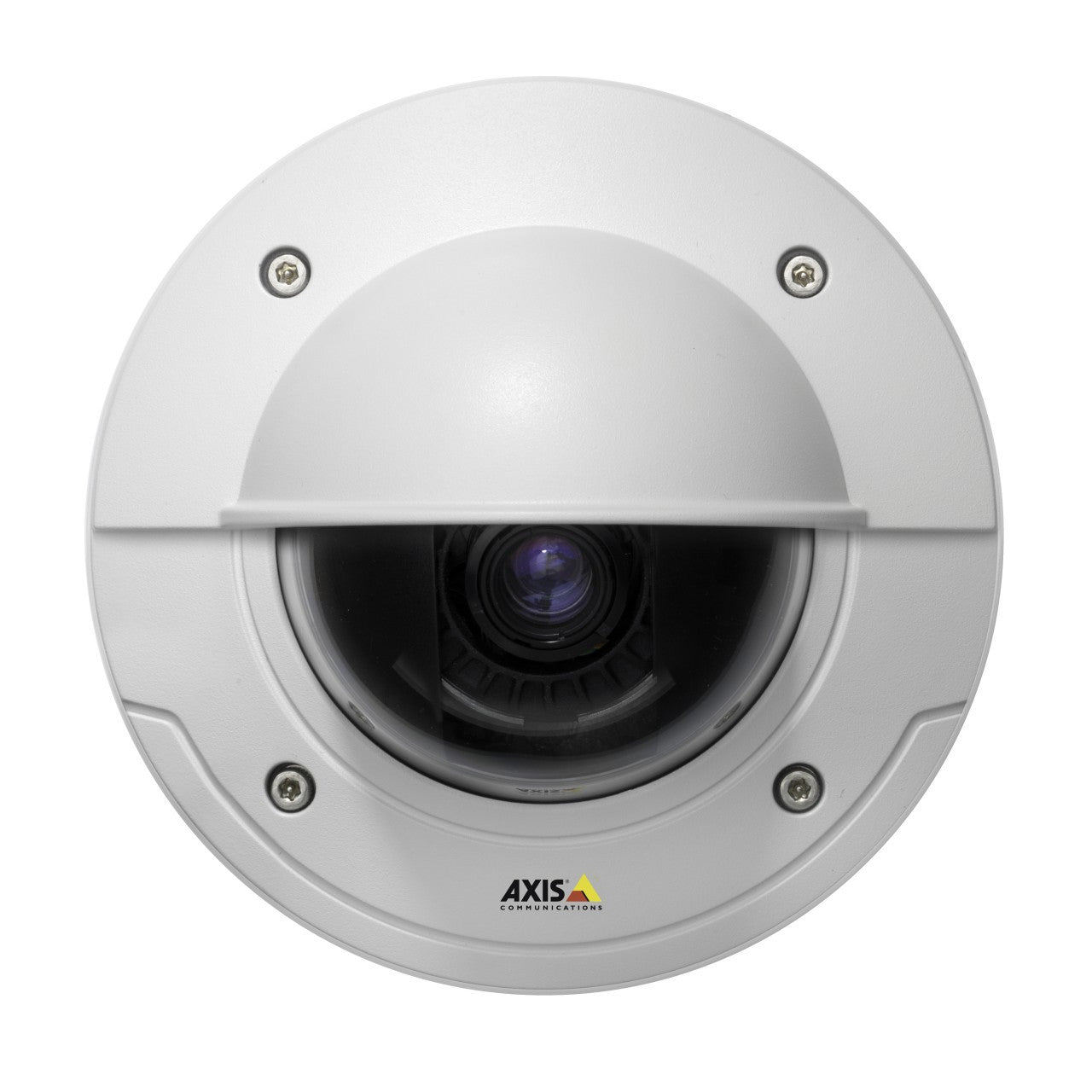

AXIS P3346-VE 1080p Vandal Resistant Fixed Dome Network Camera

Discontinued, replaced by the P3367-VE.

AXIS P3346-VE Features

• Resolution: 2048x1536 (3 MP) to 160x90
• Image Sensor: Progressive scan RGB CMOS 1/3”
• Day/Night: YES
• Mechanical IR Cut Filter: YES
• Minimum Illumination: Color: 0.5 lux, F1.2, B/W: 0.08 lux, F1.2
• IR Illuminators: NO
• IR Illuminator Range: N/A
• Lens Type: Varifocal, remote focus and zoom, IR corrected, P-Iris control, megapixel resolution
• Focal Length: 3-9 mm
• Zoom: YES
• Focus: Auto
• Field of View: , 84° - 30° horizontal angle of view
• Compression Styles: H.264 Baseline and Main Profile (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 3 MP capture mode: 20 fps in all resolutions; HDTV 1080p (1920x1080) and 2 MP 4:3 (1600x1200) capture modes: 30 fps in all resolutions
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, WDR - dynamic contrast, fine tuning of low light behavior Rotation: 0°, 90°, 180°, 270°, including Corridor Format Text and image overlay, mirroring of images
• Privacy Mask: Yes
• Built-in Microphone: NO
• Audio Capabilities: Two -Way, External microphone input or line input, line output
• Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications Intelligent video, external input, edge storage events
• ONVIF: YES
• Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X** network access control, HTTPS** encryption
• On-board Storage: SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included) Support for recording to network share (network-attached storage or file server)
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66- and NEMA 4X-rated, IK10 impact-resistant casing with aluminum base and dehumidifying membrane, Polycarbonate transparent cover, Aluminum inner camera module with encapsulated electronics
• Color: White NCS S 1002-B
• Dimensions: 123 mm x 178 x 178 mm (4.8'' x 7.0'' x 7.0'')
• Weight: 1.7 kg (3.7 lb.)
• Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
• Operating Humidity: 10 - 100% RH (condensing
• Power: Power over Ethernet IEEE 802.3af or Class 3; max 12.1 W
• Warranty: 3 Year
• What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1 user license, connector kit, weather shield, mounting bracket, 5 m (16 ft.) network cable with pre-mounted gasket, smoked transparent cover

AXIS P3346-VE Overview

The Axis P3346-VE is a fixed dome camera designed for indoor and outdoor use. As with all cameras within the Axis P33 series, the P3346-VE offers superb video quality with a resolution of 3 megapixels, 20 fps and HDTV 1080p capture mode. With its revolutionary P-Iris control, the iris position auto-optimizes to obtain the depth of field and lens resolution necessary to obtain the clearest image possible. Utilizing a unique pixel counter feature, the Axis P3346-VE will automatically calculate the ideal pixel resolution for the face of a person who is passing through an area monitored by the camera. With its remote focus capability and its 360 degree pan, 160 degree tilt and 340 degree rotation capabilities, the Axis P3346-VE can be controlled from any location to achieve the optimal image. Furthermore, with its two-way audio streaming capabilities, the Axis P3346-VE makes it possible to listen to what is taking place in the surveillance area while also offering the ability to speak to anyone in the area from a remote location. With its revolutionary P-Iris control, the iris position auto-optimizes to obtain the depth of field and lens resolution necessary to obtain the clearest image possible.
Offering a variety of different installation options, the Axis P3346-VE can be easily placed in a variety of outdoor and indoor locations. In addition to being capable of withstanding temperatures ranging from -40 to 131 degrees Fahrenheit, the Axis P3346-VE is also capable of operating smoothly in 15 to 100 percent relative humidity. The built-in heater and fan further prevents issues related to heat, humidity, or cold, while the weather shield provides protection from sunlight as well as build-up from snow and rain. With its alternative smoked transparent cover that can be used in place of the clear cover, the Axis P3346-VE offers additional flexibility of use.
