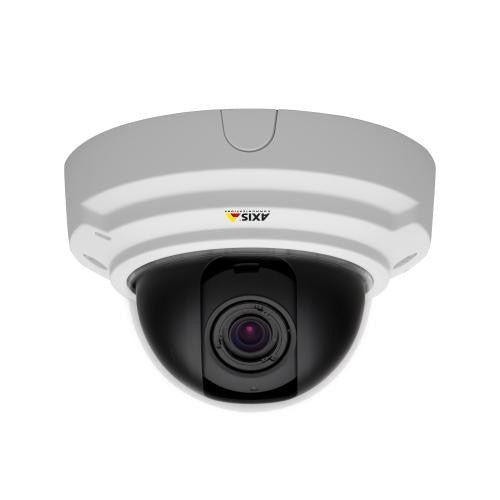

AXIS P3354 (0465-001) 6mm Fixed Dome Network Camera

AXIS P3354 (0465-001) Features

• Resolution: 1280x960 (approx. 1.3 MP) to 160x90
• Image Sensor: Progressive scan RGB CMOS 1/3”
• Day/Night: Yes
• Mechanical IR Cut Filter: Yyes
• Minimum Illumination: Color: 0.1 lux, F1.2, B/W: 0.02 lux, F1.2
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Varifocal, remote focus and zoom, IR corrected, P-Iris control, megapixel resolution
• Focal Length: 2.5-6mm / F1.2
• Zoom: YES
• Focus: Auto
• Field of View: 105° - 49° horizontal angle of view
• Compression Styles: H.264 Baseline and Main Profile (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 25/30 fps with power line frequency 50/60 Hz
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, WDR - dynamic contrast, fine tuning of low light behavior; Rotation: 0°, 90°, 180°, 270°, including Corridor Format. Text and image overlay, privacy mask, mirroring of images; WDR - dynamic capture: Up to 120 dB (0.5 - 500,000 lux) depending on scene
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Two -Way, External microphone input or line input, line output
• Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications Intelligent video, external input, edge storage events
• ONVIF: YES
• Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X** network access control, HTTPS** encryption
• On-board Storage: SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included) Support for recording to network share (network-attached storage or file server)
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: IK10 impact-resistant casing with aluminum base, Polycarbonate transparent cover, Aluminum inner camera module with encapsulated electronics
• Color: White NCS S 1002-B
• Dimensions: Please See Diagram in Pictures
• Weight: 1.7 kg (3.7 lb.), with weather shield
• Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
• Operating Humidity: Humidity 10 - 100% RH (condensing)
• Power: Power over Ethernet IEEE 802.3af or Class 3; max 12.8 W
• Warranty: 3 Year
• What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, smoked transparent cover, Connector kit, Weather shield, smoked transparent cover
• Please Note: Available in a 6mm lens (0465-001) & 12mm lens (0467-001)

The AXIS P3354 is a 1-megapixel day and night fixed dome network camera that offers superb video performance. It delivers 30 fps in all resolutions up to HDTV 720p/1MP. The camera also supports digital pan/tilt/zoom, allowing a view area cropped from the full view to be streamed for viewing or recording. This can be used to minimize the bit rate and storage needs by optimizing the fixed viewing angle after installation, or by allowing pan, tilt and digital zoom in the view. AXIS P3354 integrates Axis' Lightfinder technology. The outstanding light sensitivity, with maintained colors even in very poor lighting conditions, is obtained by a combination of Axis' expertise in image processing, system-on-chip development and selection of the best optical components. The camera also supports P-Iris control, allowing the camera to precisely control the position of the iris. The iris opening is optimized for depth of field, lens resolution and light inlet, resulting in superb image quality with optimal sharpness. AXIS P3354 with its tamper-resistant casing, is a fixed dome specifically designed for indoor environments where discreet and compact solutions are required. It is the perfect solution for video surveillance in areas such as retail stores, governmental buildings and airports. Intelligent capabilities such as enhanced video motion detection and detection of camera tampering attempts like blocking or spray-painting. Utilizes Power over Ethernet (IEEE 802.3af), eliminating the need for power cables and reducing installation costs.
